Solution System 29Service Manual – SC100 - Scrubtec 130
Removal and Installation
Disassembly/assembly of the solution level sensor (inside the tank)
Disassembly
4. Set the machine to stop position.
5. Make sure that the machine power supply cable is disconnected from the electrical mains.
6. Remove and drain the tank assembly.

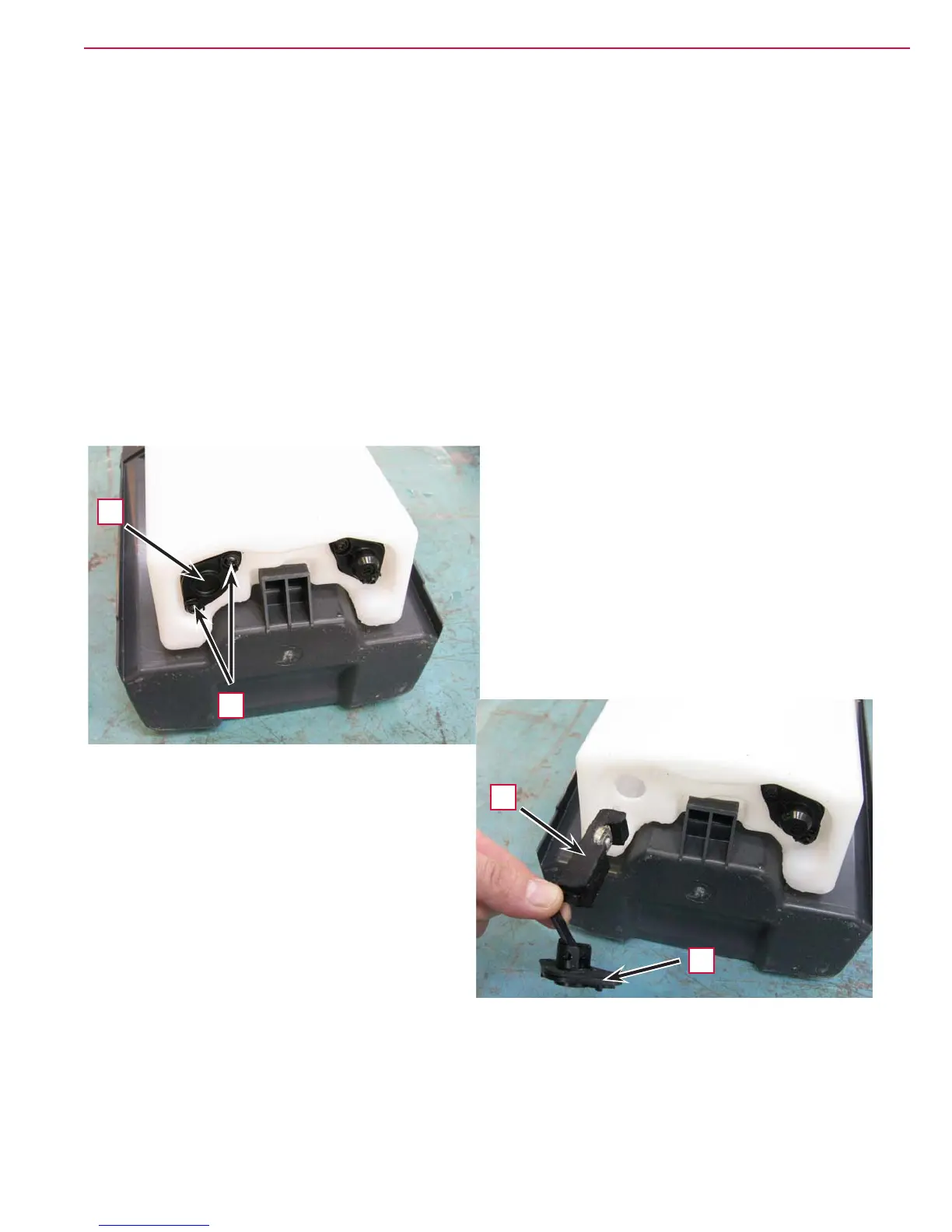

7. On the lower side of the tank assembly, remove the screws (A) fastening the cover (B).
8. Carefully remove the cover (B) with the level sensor (C).
Assembly
9. Assemble the components in the reverse order of disassembly, and note the following:
◦ Before reassembly, check the cover gasket (B) for integrity.
B
A
C
B
