Cylindrical Brush System
Removal and Installation
Belt and Pulley Disassembly/Assembly

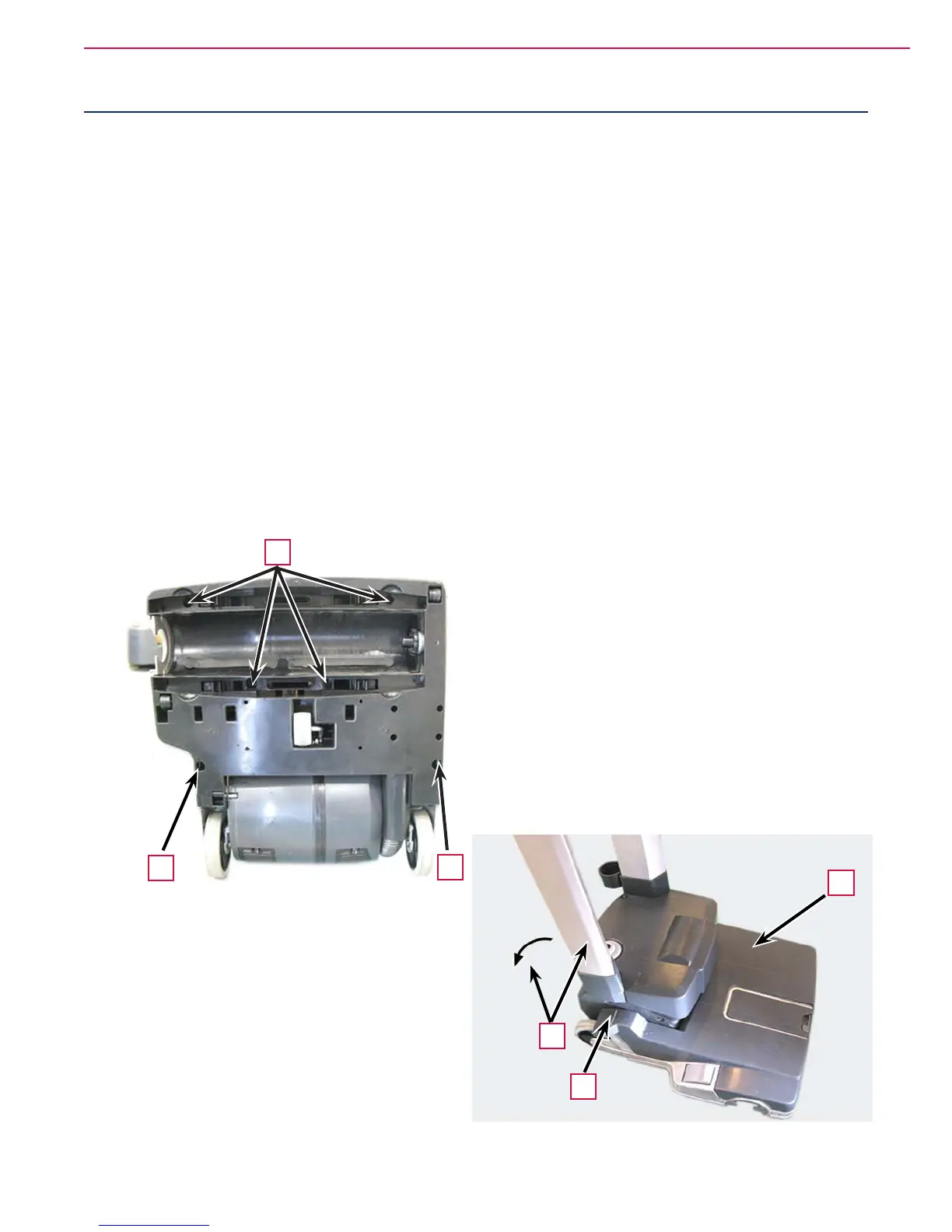

Disassembly
1. Set the machine to stop position.
2. Make sure that the machine power supply cable is disconnected from the electrical mains.
3. Remove the tank assembly.
4. Remove the brush.
5. Remove two squeegee bars.
6. On the lower side of the deck, remove the screws (A).
7. Turn the machine to its original position (B).
8. Press the unlock pedal (C) and fully lower the frame (D).
A
A
A
B
C
D
