Dosing pump Disassembly/Assembly (Continues)

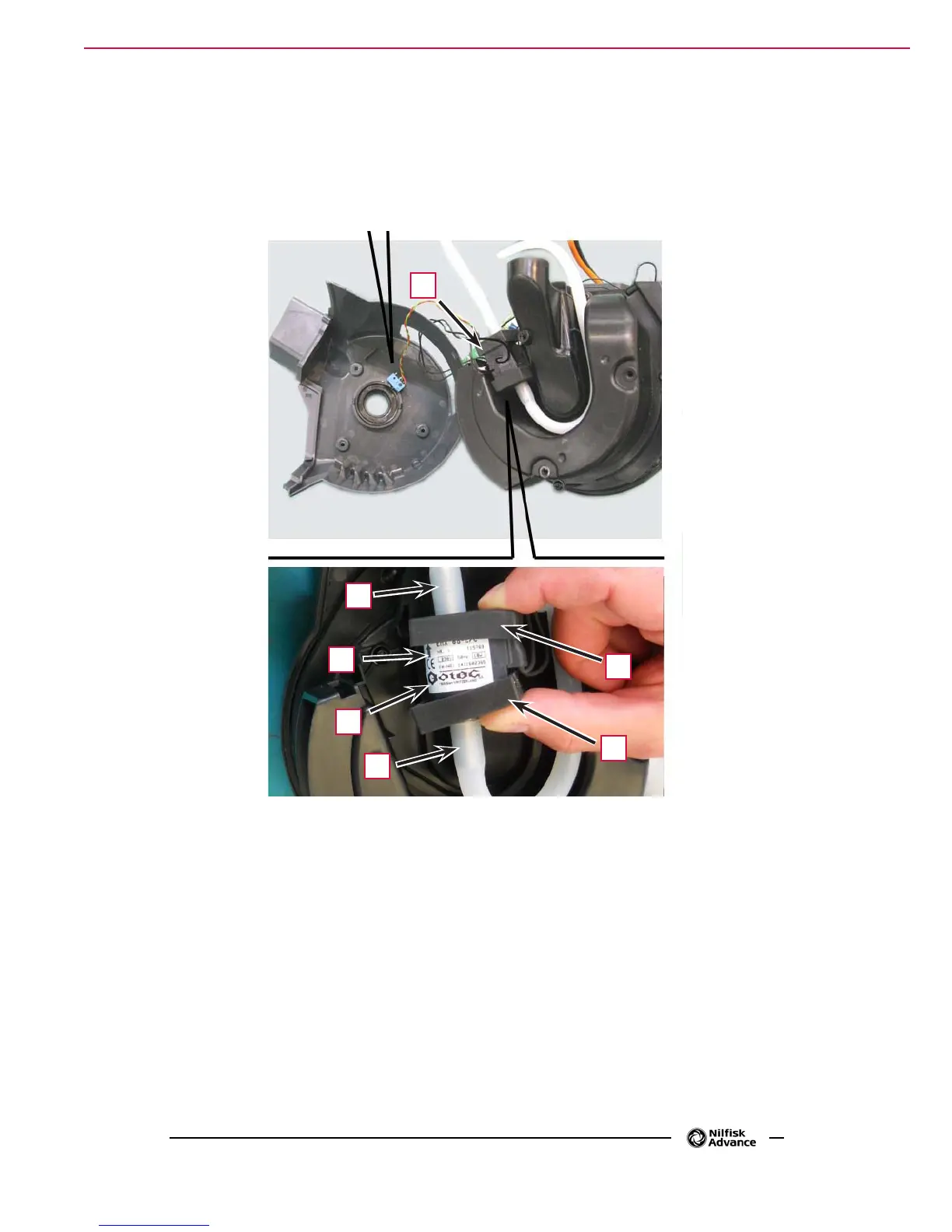

23. Disconnect the hose (AM) and the hose (AN) then remove the dosing pump (AL). Retrieve the gaskets
(AP). When reassembling turn the dosing pump (AL) in the direction shown by the arrow (AQ).
Assembly
24. Assemble the components in the reverse order of disassembly.
AL
AN
AL
AQ
AM
AP
AP
