Nilfisk-ALTO SCRUBTEC R 571 - Brush Head Assemblies

Page -52- Nilfisk ALTO Operator's Manual -
SCRUBTEC R Manual SteeringSCRUBTEC R Manual Steering
SCRUBTEC R Manual SteeringSCRUBTEC R Manual Steering
SCRUBTEC R Manual Steering
2
Nilfisk ALTO
SCRUBTEC R 571SCRUBTEC R 571
SCRUBTEC R 571SCRUBTEC R 571
SCRUBTEC R 571

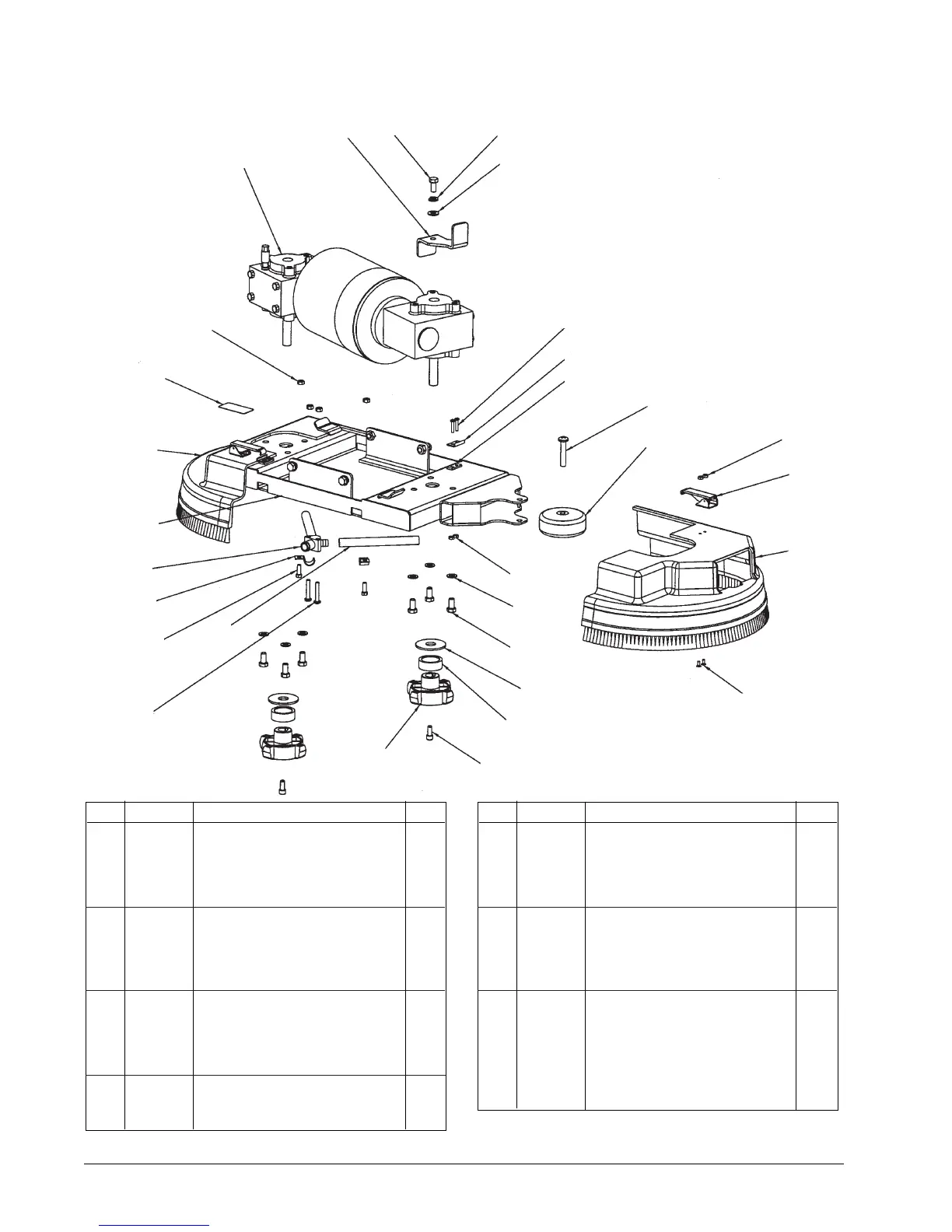

571 Rotary Brush Head Assembly Drawing and Parts List 3/08
Drawing #10697A
Ref Part No. Description Qty
1 40904B Motor, Dual Gear Box 1
1A 915102 Key 2
1B 40968A Carbon Brush/Spring Set (4 of ea.) 1
1C 41048A Gearbox Asm. 2
2 962244 Bolt, 3/8 - 16 x 3/4 Hex 12
3 170883 Washer, Lock 3/8 2
4 980645 Washer, 3/8 Flat 2
5 61722A Plate, Auto Side Squeegee 1
61497A Plate, Manual Side Squeegee 1
6 85613A Screw, 8 - 32 x 7/8 PH SS 4
7 55451A Keeper, Latch 2
8 61570A Spacer, Keeper 2
9 962803 Screw, 5/16-18 x 1 1/2 FH 1
10 53838A Wheel, Guide 4” 1
11 920108 Nut, 8 - 32 ESNA SS 4
12 55721A Latch, Brush Housing 2
13 30535A Housing, 28” Brush Right Main 1
14 962030 Screw, 8 - 32 x 3/8” FHCS 4
Ref Part No. Description Qty
16 980638 Washer, 3/8 Lock 10
17 59856A Washer, Rubber 2
18 61658A Collar, Brush Driver 2
19 962714 Screw, Gimbal Mount 2
20 34400B Gimbal, Motor 2
21 962989 Screw, 1/4 - 20 x 1 1/2 PH 2
22 34705A Hose, Solution 2
23 170915 Screw, 1/4 - 20 x 3/4 Hex HD 2
24 782002 Clamp, Manifold 2
25 38014A Splitter, Solution 1
26 61546A Frame, 28” Brush Motor 1
27 30536A Housing, 28” Brush Left Main 1
28 81104A Nut, 1/4 Nylock 4
29 77091A Label, Moving Parts 1
30 81109A Nut, 8-32 ESNA SS 4
NI 30536A Housing, 28” Left Brush 1
NI 30535A Housing, 28” Right Brush 1
1, 1A, 1B, 1C
3
4
5
6
7
8
9
10
11
12
13
14
30
16
2
17
18
19
20
21
22
23
24
25
26
27
28
NI = Not illustrated
NOTE:  indicates a change has been made since the
last publication of this manual.
29
.
