Nilfisk ALTO

SCRUBTEC R 571, 586SCRUBTEC R 571, 586

SCRUBTEC R 571, 586

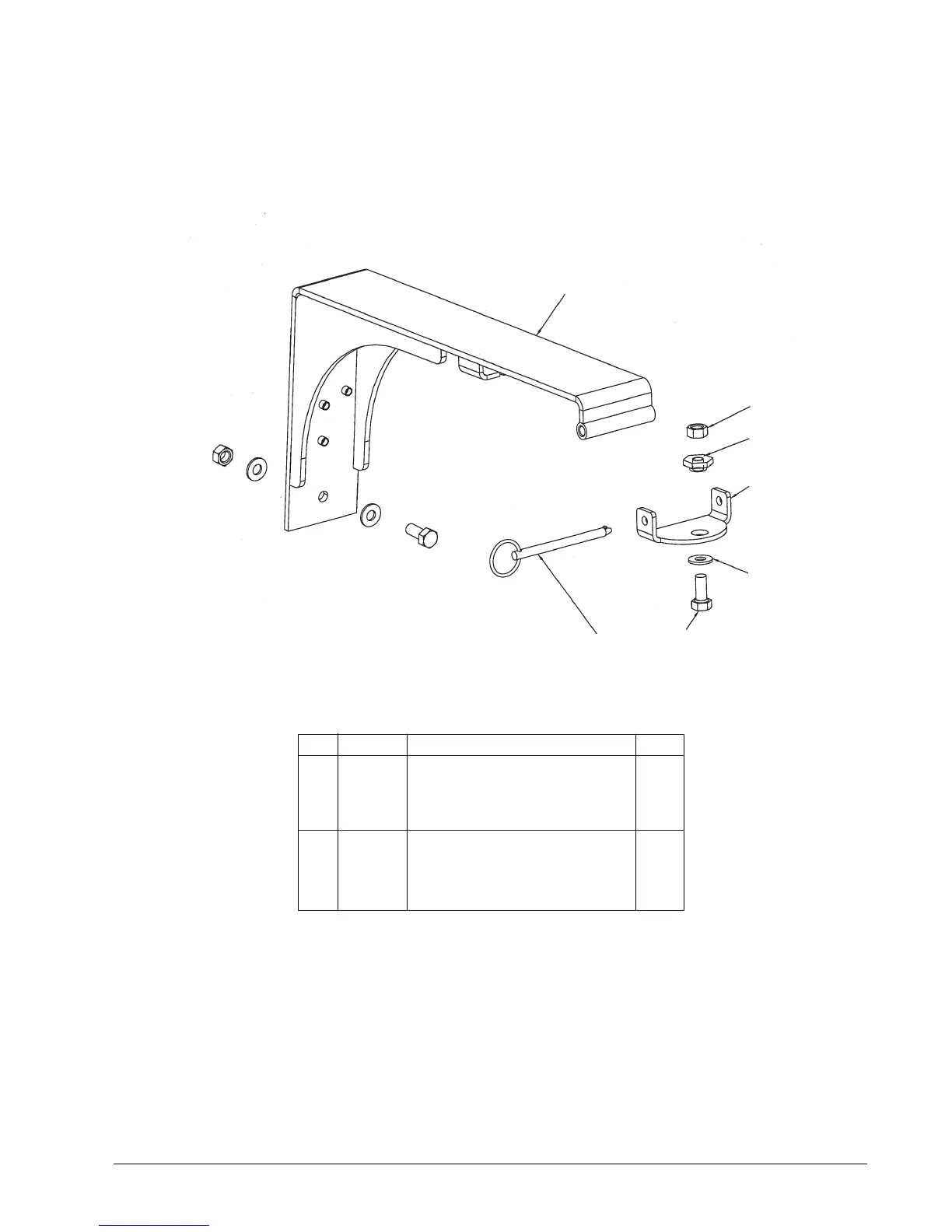

Front Squeegee Arm Assembly Drawing and Parts List 5/05

(Rotary Machine Only)

Drawing # 10694A

Ref Part No. Description Qty

1 61548A Arm, Weldment Squeegee 1

2 81112A Nut, 5/16-18 Thin ESNA 2

3 67867A Spacer, Squeegee Swivel 1

4 60256A Arm, Squeegee Pivot 1

5 980651 Washer, 5/16 Flat 3

6 85811A Screw, 5/16-18 x 3/4 Hex Head 2

7 53491A Pin, Quick Release 1

NI 61370A Weight *

* Optional - Not supplied with machine.
