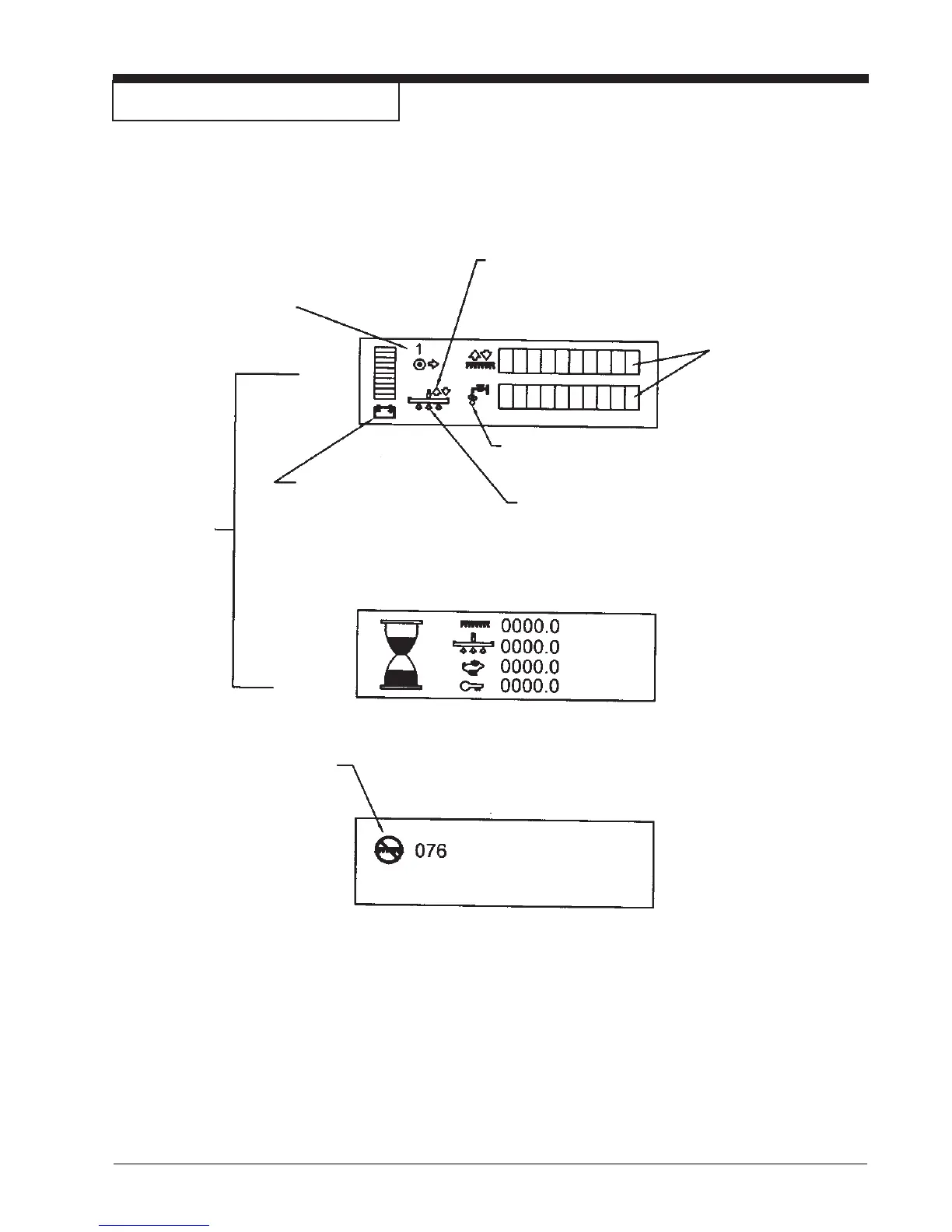

Display Screens For Scrubtec R
Traverse speed indicator
1 = low 0-3 KPH
2 = med 0-5 KPH
3 = high 0-6.4 KPH
Position arrow indicating current position
of squeegee (up or down)
Indicators are on,
showing current
settings.
Screens
Available
to Operator
“Battery” blinks when
low voltage occurs.
Water “droplets” off when solution is off and
they are flashing when solution is on.
Arrows indicating vacuum status.
They are flashing when vac is on
and off when vac is off.
SCREEN 1
SCREEN 2
Example
SCREEN 3 (Diagnostic)
The Diagnostic only. It will not show unless a fault with
the machine occurs. When the fault happens the icon
and error code will be displayed.
