Ninebot PTR E - Page 18

16
NOTICE
When you install the operation bar, remove the quick release knob first so you can ensure correct alignment of the operation bar and
mainframe mount. See illustration below for proper operation bar alignment. The holes in the mounting base and operation bar both
should be concentric so the mounting bolt can be inserted correctly.

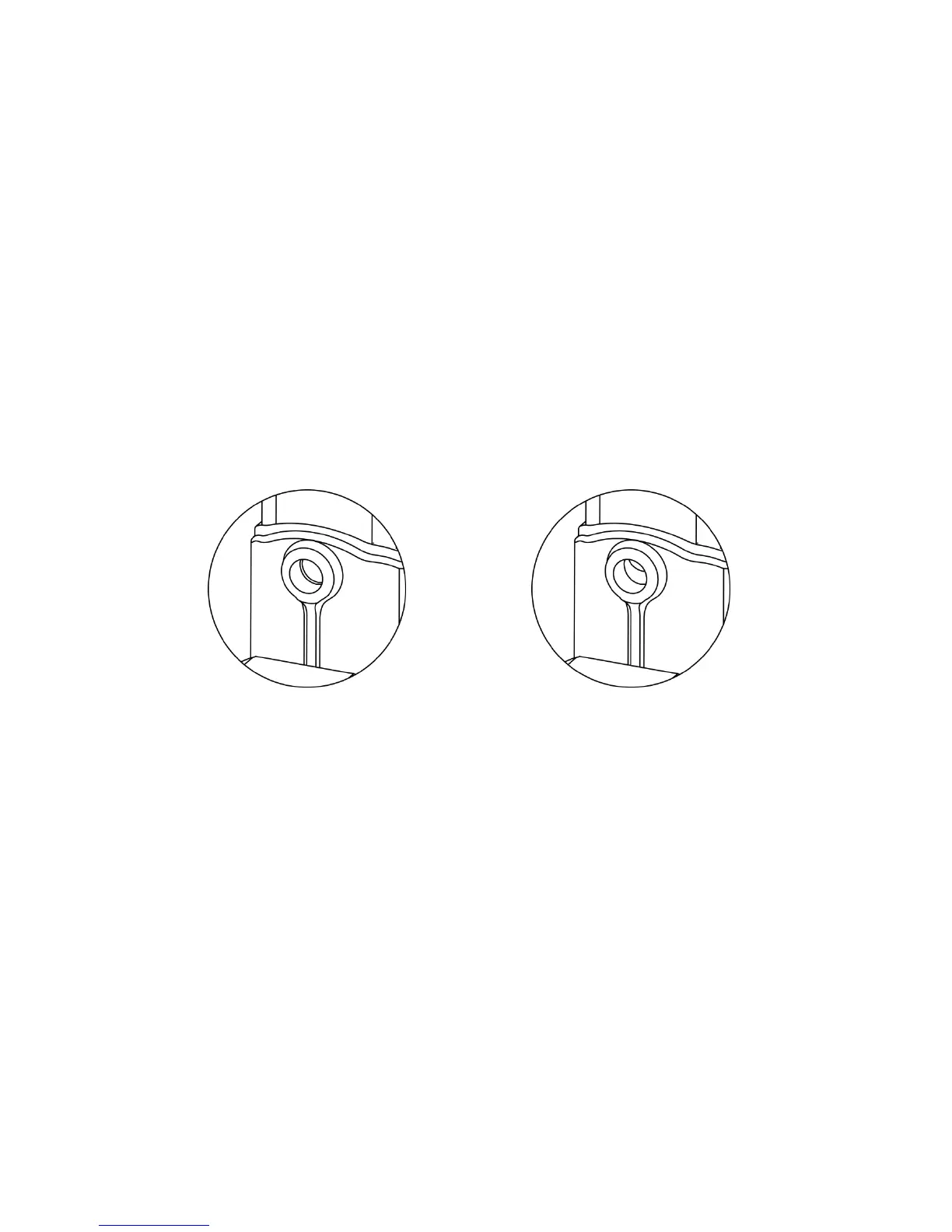

Figure 8: Correct Alignment Figure 9: Incorrect Alignment
