Boot Options
Edition: 01 3HE 16132 AAAB TQZZA 167
• 7210 SAS-M 24F 2XFP and 7210 SAS-M 24F 2XFP ETR with support for up to
24 100/1000 SFP ports and up to two XFP (10G) ports (see Figure 12)

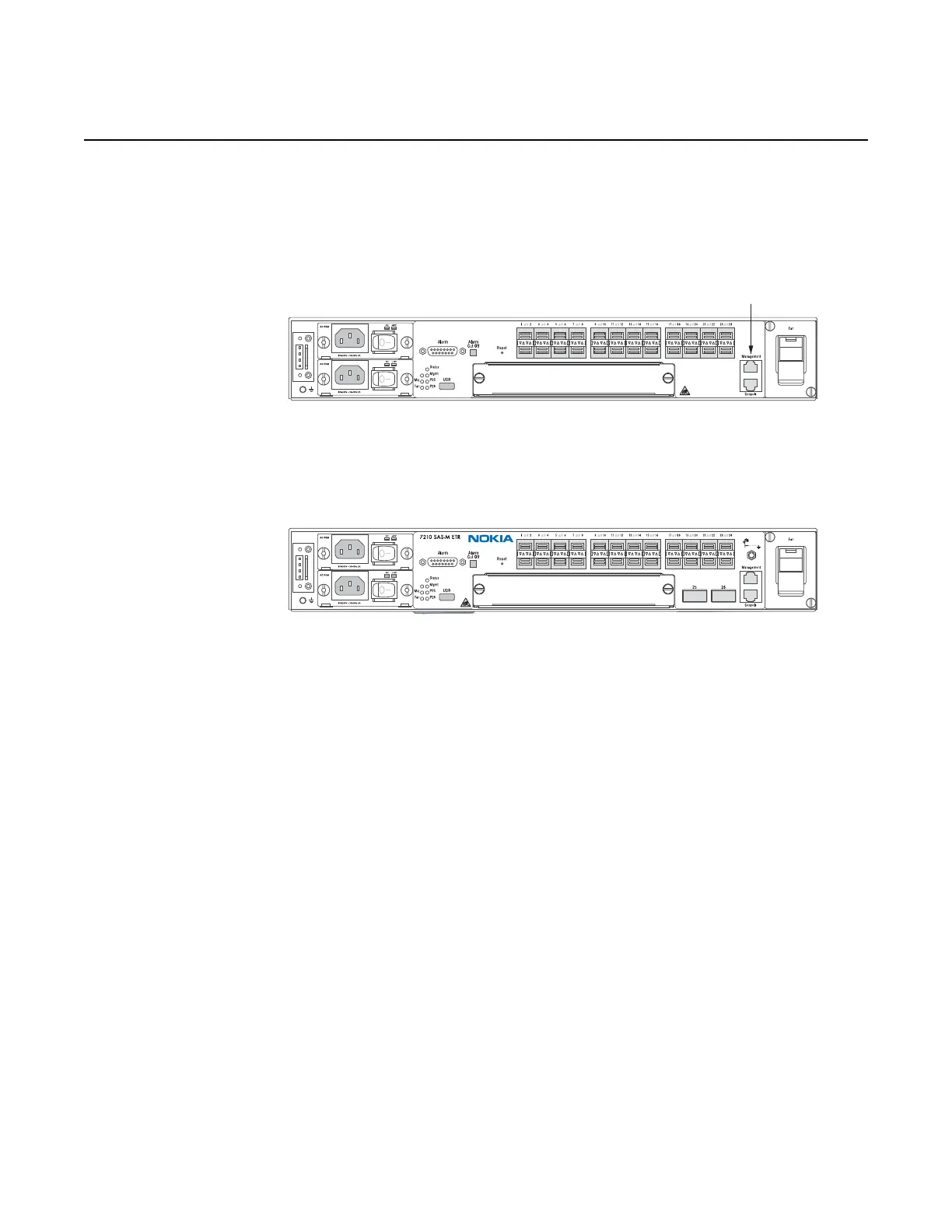

Figure 11 shows an example of the console port on a 7210 SAS-M front panel.
Figure 11 Front Panel: 7210 SAS-M 24F
Figure 12 shows an example of the console port on a 7210 SAS-M 2XFP front panel.
Figure 12 Front Panel: 7210 SAS-M 24F 2XFP (ETR)
4.10.3.6.2 7210 SAS-T Console Port
The 7210 SAS-T is a service-aware IP/MPLS switch. It supports two modes of
operation:
• access-uplink mode (only L2 uplinks)
• network mode (L2 or MPLS uplinks)
The switch is available in two variants:
• 7210 SAS-T (non-ETR variant) with support for up to 12 100/1000 fiber-optic
SFP ports, 10 10/100/1000 copper SFP ports and four XFP-based 10 Gig ports
(see Figure 13)
• 7210 SAS-T (ETR variant) with support for up to 12 100/1000 fiber-optic SFP
ports, six 10/100/1000 copper SFP ports, four XFP-based 10 Gig ports and four
Power over Ethernet (PoE and PoE+) ports (see Figure 14)
Figure 13 shows an example of the console port on a 7210 SAS-T non-ETR variant
front panel.
Crit
hw0384
Console Port
Crit
hw0395
