Nokia 7210 SAS-M User Manual

Boot Options
172
7210 SAS-M, T, R6, R12, Mxp, Sx, S Basic System
Configuration Guide
3HE 16132 AAAB TQZZA Edition: 01
• In satellite mode, the platform is managed by the 7x50 host. It does not need to
be assigned an IP address. The user needs to connect the right ports to the 7x50
and power on the node. The node automatically fetches the BOF, the image and
the configuration required to operate in satellite mode.
• In standalone mode, the platform provides IP/MPLS functionality and needs to
be assigned an IP address and managed independently.

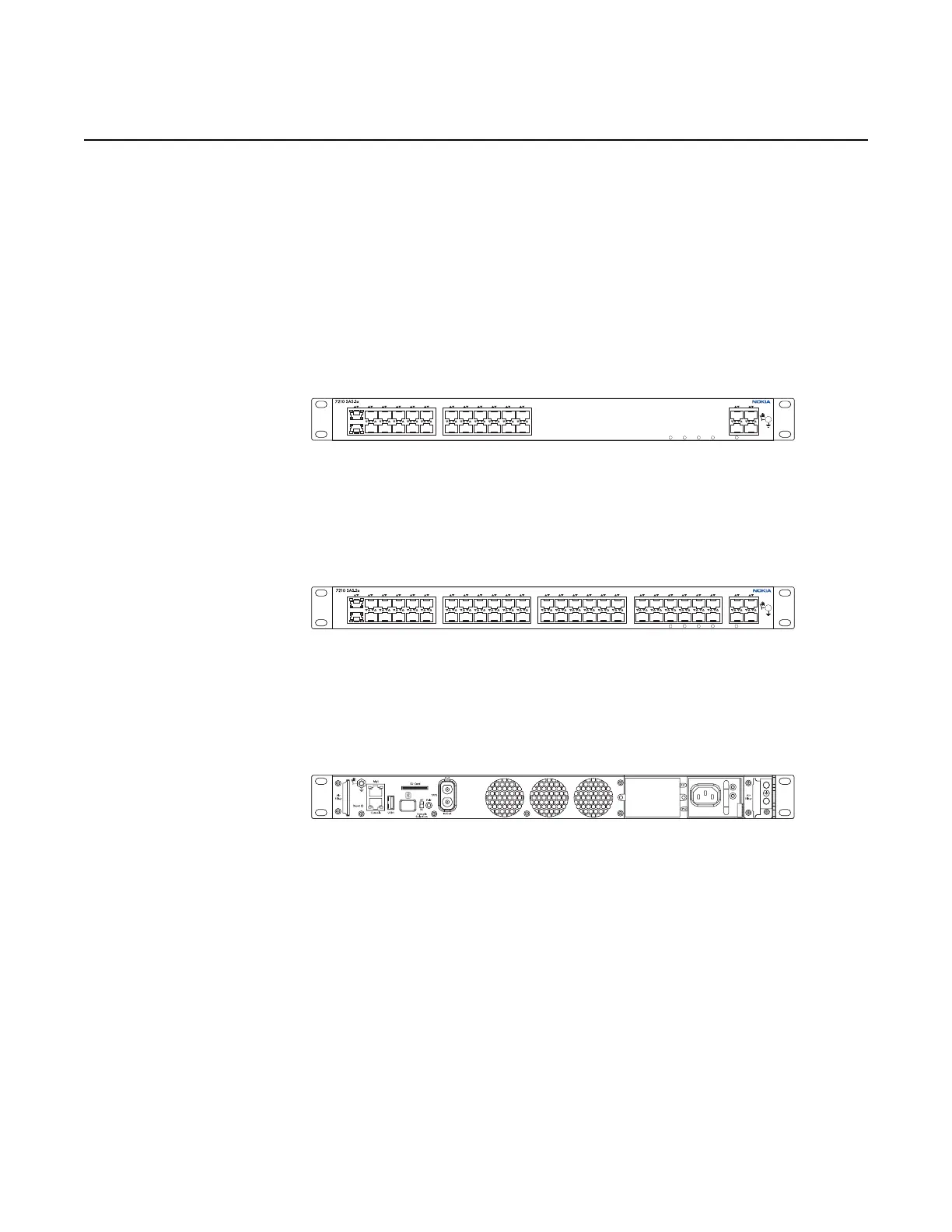

Figure 18 shows an example of the console port on a 7210 SAS-Sx 1/10GE front
panel for the 24-port variant.
Figure 18 Front Panel: 7210 SAS-Sx 1/10GE 24-Port Variant
Figure 19 shows an example of the console port on a 7210 SAS-Sx 1/10GE front
panel for the 48-port variant.
Figure 19 Front Panel: 7210 SAS-Sx 1/10GE 48-Port Fiber Variant
Figure 20 shows an example of the rear panel on a 7210 SAS-Sx 1/10GE port fiber
variant.
Figure 20 Rear Panel: 7210 SAS-Sx 1/10GE Fiber Variant
4.10.3.6.7 7210 SAS-S 1/10GE Console Port
The 7210 SAS-S 1/10GE is an IP/MPLS Ethernet device for business service
applications and Ethernet mobile backhaul applications to be used as an access
device or as an access aggregation device. It can also be operated in satellite mode,
where it provides port expansion, allowing users to break out the 10GE ports on the
7x50 to 1GE ports.
The 7210 SAS-S 1/10GE is available in the following variants:
hw0401
RPSPS2PS1
Fan
13 14 15 16 17 18 19 20 21 22 23 24
25 26 27
11 1291078563412
Stat
hw0402
RPSPS2PS1
Stat
Fan
13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36
37 38 39 40 41 42 43 44 45 46 49 50 51 52
47 4811 1291078563412
7210_SAS_S_rear
