Nokia FastMile - LED Behavior; Figure 8 Location of Physical Interfaces on the Nokia Fastmile Outdoor Unit

Overview
40
Nokia FastMile Outdoor Unit User Manual
3TG-00088-AAAA-TCZZA Issue: 01P03
Table 6 Physical interfaces of the Nokia FastMile Outdoor Unit

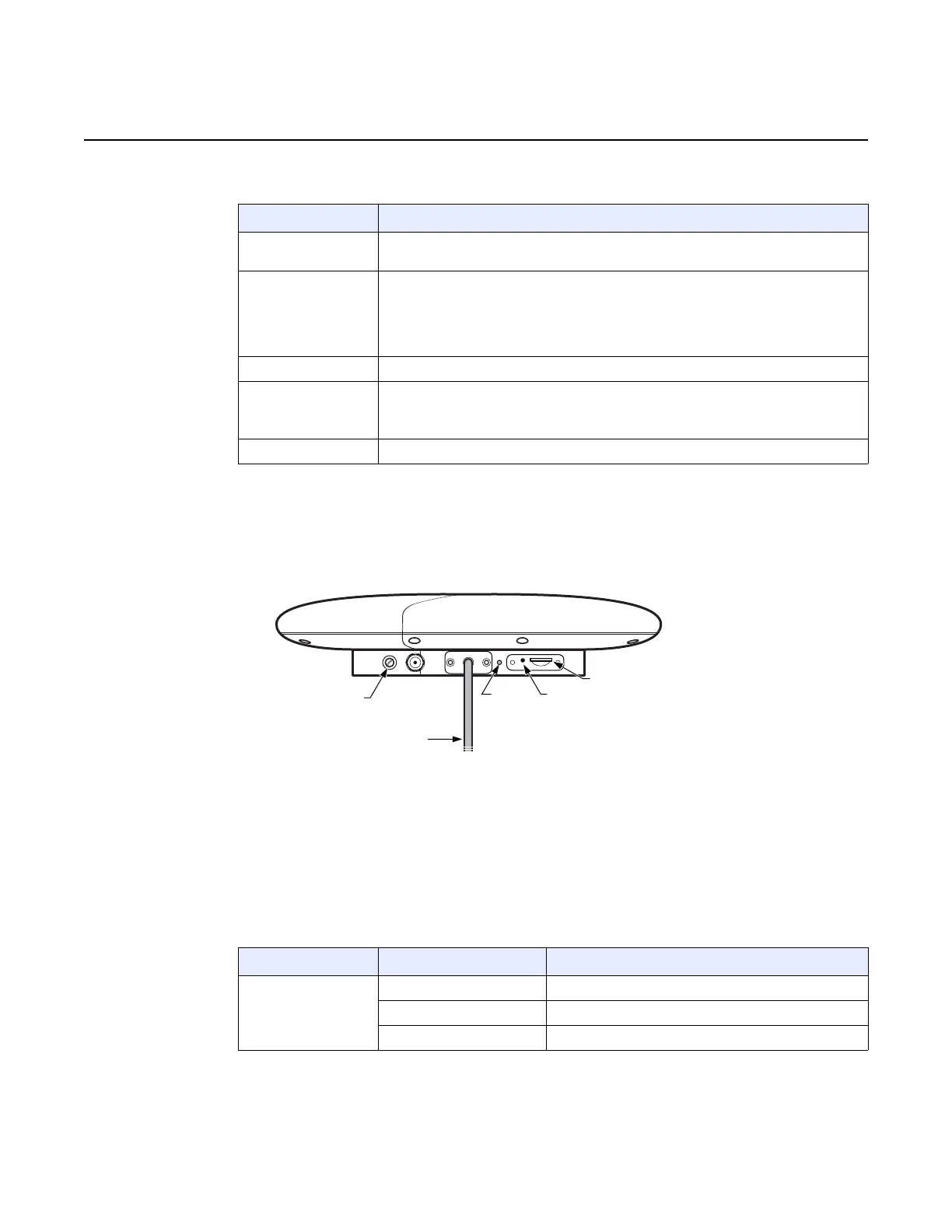

Figure 8 shows the location of the physical interfaces on the Nokia FastMile Outdoor
Unit. Note that the cover for the SIM slot has been removed to show the slot.
Figure 8 Location of physical interfaces on the Nokia FastMile Outdoor Unit
5.5 LED behavior
Table 7 describes the behavior of the Nokia FastMile Outdoor Unit LED.
Table 7 LED behavior description
Interface Description
Ground point External ground point in case a ground separate from indoor grounding provided by the
Ethernet cable is required
Ethernet cable Pre-attached 3 m (9.8 ft) Ethernet cable; the same cable is also used for power (PoE
as per IEEE802.3 at type-2) and for grounding to an indoor ground.
The RJ 45 connector at the free end of the cable supports connection of an additional
length of cat5e shielded Ethernet cabling up to a maximum of 40 m (131 ft) in combined
length.
Reset button Button to reset the Nokia FastMile Outdoor Unit
LED Single multifunction LED that indicates status information for the Nokia FastMile
Outdoor Unit
See section 5.5 for information about LED behavior
SIM slot Slot for Nano/4FF SIM card for the Nokia FastMile Outdoor Unit
SIM slot
Ground point
Ethernet Cable
LED Reset
button
27898
LED color LED behavior LED behavior description
Green Blinking once per second OAM link broken
Blinking twice per second Kernel or application start up
Solid Power on
(1 of 2)
