Nokia FastMile - Figure 21 Mounting the Wall-Mount Bracket

Nokia FastMile Outdoor Unit User Manual Installation procedure
Issue: 01P03 3TG-00088-AAAA-TCZZA 59

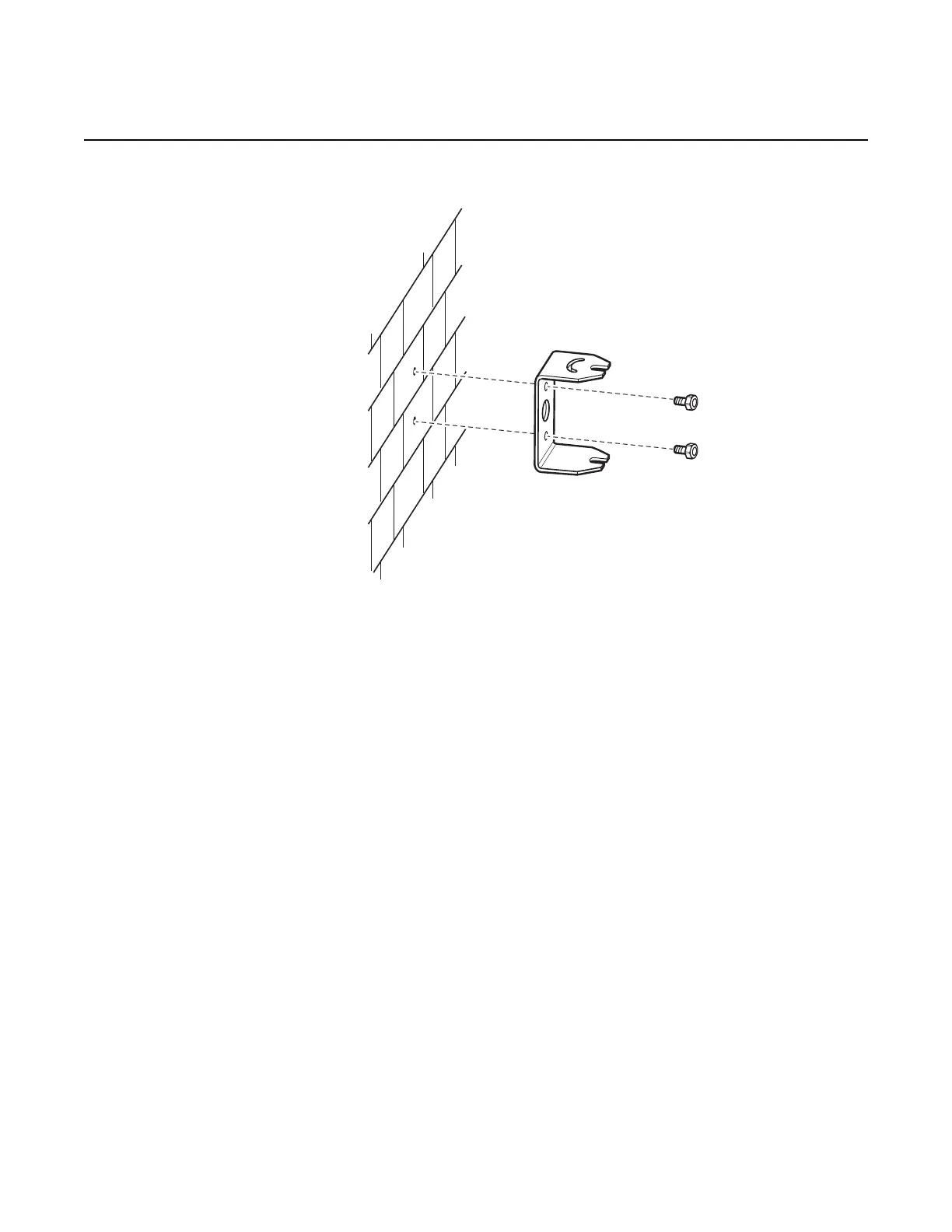

Figure 21 Mounting the wall-mount bracket
viii Line up the mounting plate (attached earlier on the back of the Nokia FastMile Outdoor
Unit with the wall-mount bracket and temporarily secure in place with the three saved
fasteners as shown in Figure 22. The figure shows one of the fasteners already in place.
