AG 5500
System Administration 77
Setting Up Bandwidth Management {Bandwidth Management}
The AG 5500 allows system administrators to manage the bandwidth for subscribers, defined
in Kbps (Kilobits per seconds) for both upstream and downstream data transmissions. With the
ICC feature enabled, subscribers can increase or decrease their own bandwidth dynamically
(by the minute, or on an hourly, daily, weekly, or monthly basis), and also adjust the pricing
plan for their service.
1. From the Web Management Interface, click on Configuration, then Bandwidth
Management.

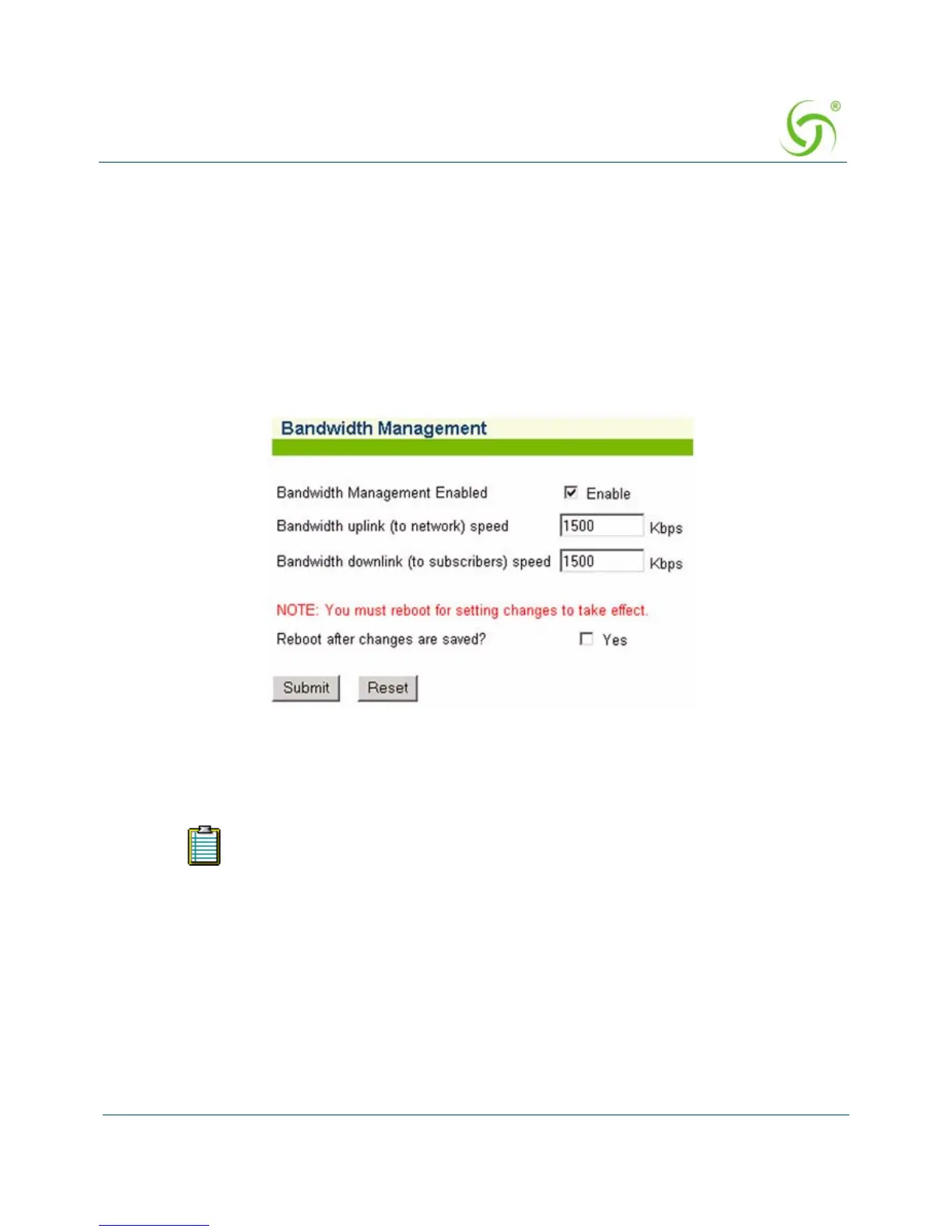

The Bandwidth Management screen appears:
2. If required, click the check box for Bandwidth Management Enabled.
3. If you enabled Bandwidth Management, enter the uplink and downlink speeds (in Kbps)
in the appropriate fields.
4. If you made any changes to the settings on this screen, you must click the check box for
Reboot after changes are saved? (the AG 5500 must be rebooted).
5. Click on the Submit button to save your changes and reboot the system, or click on the
Reset button if you want to reset all the values to their previous state.
Setting the uplink or downlink speeds to anything greater than 100,000 Kbps is
meaningless, because communication with the AG 5500 is established at 100
Mbps (100,000 Kbps).
ag5500_userguide.book Page 77 Tuesday, June 5, 2007 7:31 PM
