NORAM 65ET GRADER
5-5
Lubrication and Maintenance - Cummins Tier 4 Final
5
Every 10 Hours or Daily
Engine (Lubricating) Oil Level - Check

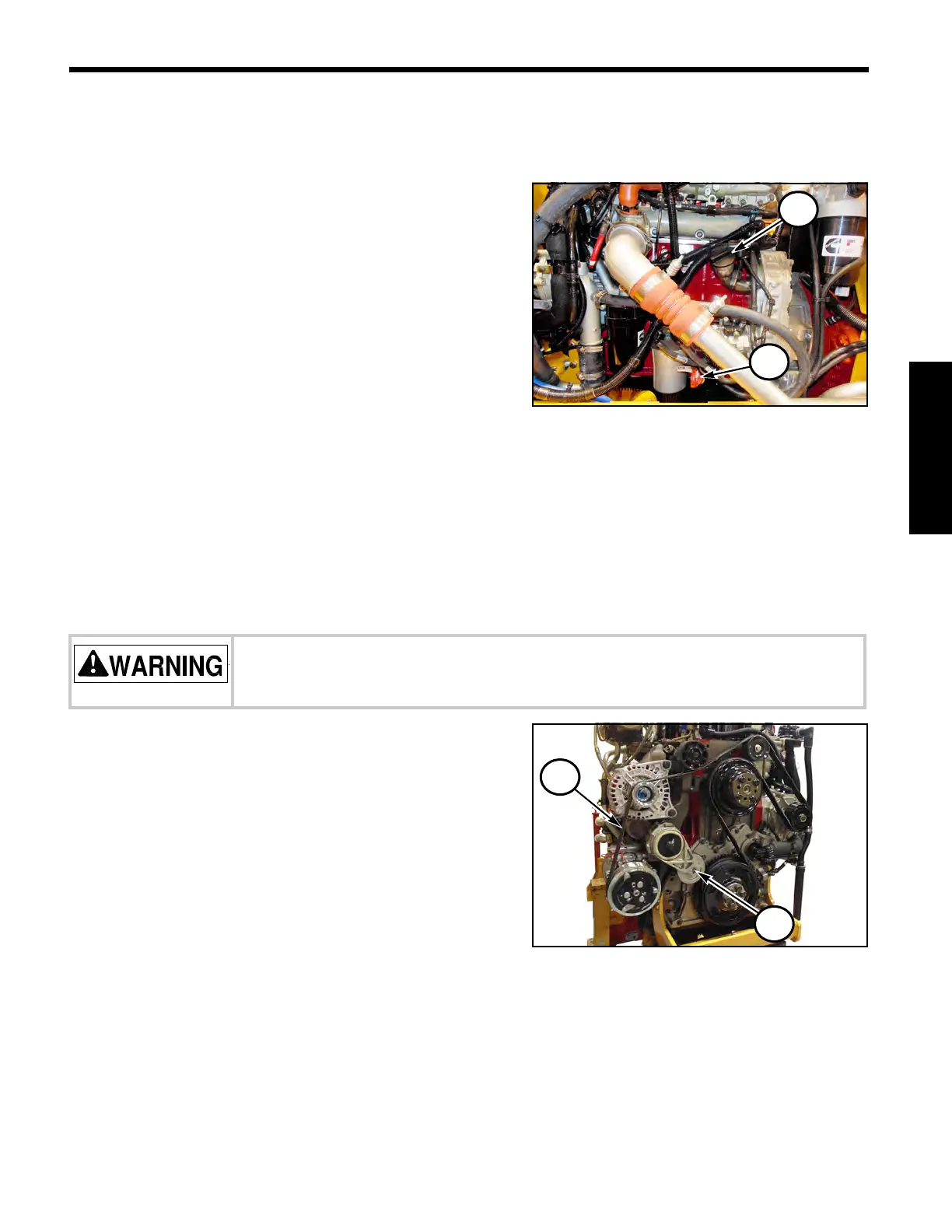

1. Park machine on a level surface. Allow engine oil to drain into the sump for 15 minutes after the
engine has stopped before checking level.
2. Remove dipstick
(1) and check level. Oil level should
be above minimum mark and below maximum mark.
3. Remove fill cap
(2) and add or remove oil to obtain
proper fill level between minimum and maximum
marks.
NOTE: The amount required to change the level
from the minimum mark to the maximum mark is
1.5 L (1.6 qt).
NOTICE: Never operate engine with oil level below L (low)
mark or above H (high) mark. Poor engine performance or engine damage can occur.
Engine Accessory Drive Belt and Tensioner - Check
To remove drive belt (1) insert 3/8 in. drive breaker bar
into the square hole on the tensioner
(2) and relieve
pressure on the tensioner. Lift belt from pulleys and
remove.
Examine belt for damage, such as tears or cracks. Move
tensioner through its full range of motion, ensuring free
movement and no binding. Tensioner pulley must rotate
freely.
To install drive belt, relieve pressure on the tensioner
with the breaker bar. Position belt on all pulleys
ensuring correct routing. Ribs on belt must align properly with all pulley grooves.
Contact with rotating fan or entanglement in drive belt can cause serious injuries.
DO NOT place head, body or limbs near a rotating fan or belts. DO NOT check
belts with engine running.
