NORAM 65ET GRADER
6-21
Lubrication and Maintenance - CAT Tier 4 Final
6
When Required
Fuses - Replace

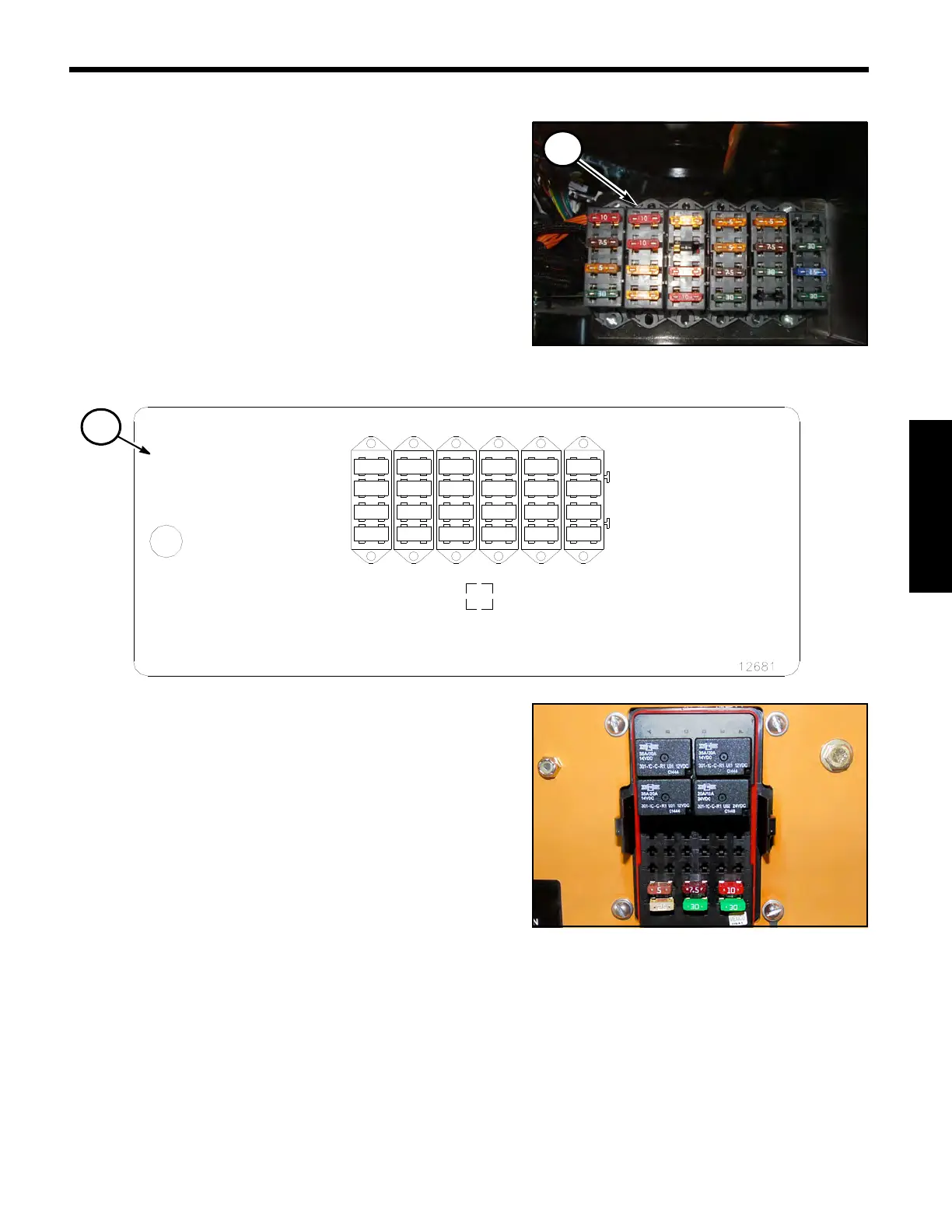

If an electrical circuit does not work, check the fuse panel
(1) under the right side console and/or the fuse panel (2)
inside the right engine compartment. Fuses may have
blown, breaking the circuit. Be sure to locate the cause of
the blown fuse before replacing. Automotive push-type
fuses are used.
To access a fuse, remove the bolts on the front of the
control panel and lift top up.
A card
(3) showing fuse locations for fuse panel (1) functions, and amperage ratings, is attached to
the harness in the console.
(1) ECM Relay
(2) Auxiliary Power Relay
(3) SCR Relay
(4) Neutral Start Relay
(5) Engine ECM Fuse
(6) Engine Fan Fuse
(7) DEF Pump, SCR Fuse
(8) Engine ECM Fuse
(9) DEF Sensor Fuse
(10) Engine ECM Relay Fuse
NOTICE: Turn off Master Switch before working on electrical system.
NOTICE: Always replace fuses with an equal amperage fuse.
1. SEAT - 10A
2. DISPLAY - 7.5A
3. BLADE PITCH - 30A
4. DEFOG FANS - 30A
5. HIGH BEAMS - 10A
6. HEAD LIGHT - 10A
7. HORN - 5A
8. IGN SWITCH - 7.5A
9. TAIL LIGHTS - 5A
10. LED STROBE - 5A
11. PWR SOCKET - 10A
12. TURN SIGNAL /
HAZARD - 10A
13. BRAKE SWITCH - 5A
14. FUEL SENDER - 5A
15. DOME / DASH
LIGHTS - 7.5A
16. WORK LIGHTS - 30A
17. TRANS. SHIFT LEVER
SENSOR - 5A
18. TRANSMISSION - 7.5A
19. CONVERTER - 30A
20. OPEN
21. OPEN
22. WIPERS - 15A
23. A/C - 30A
24. HEATER - 30A
25. ENG ECU FUSE - 30A
ENG ECU FUSE IS LOCATED
NEAR RH SIDE OF HYD TANK
INSIDE ENG COMPARTMENT
25
73
48
2
1
6
521
23
24
22
19 15 11
121620
10
9
14
13
18
17
