NORAM 65ET GRADER
2-11
General Information
2
Component Identification and Locations
Lock Pins
Lock pins are provided to prevent unintended movement of components during maintenance or
transport.

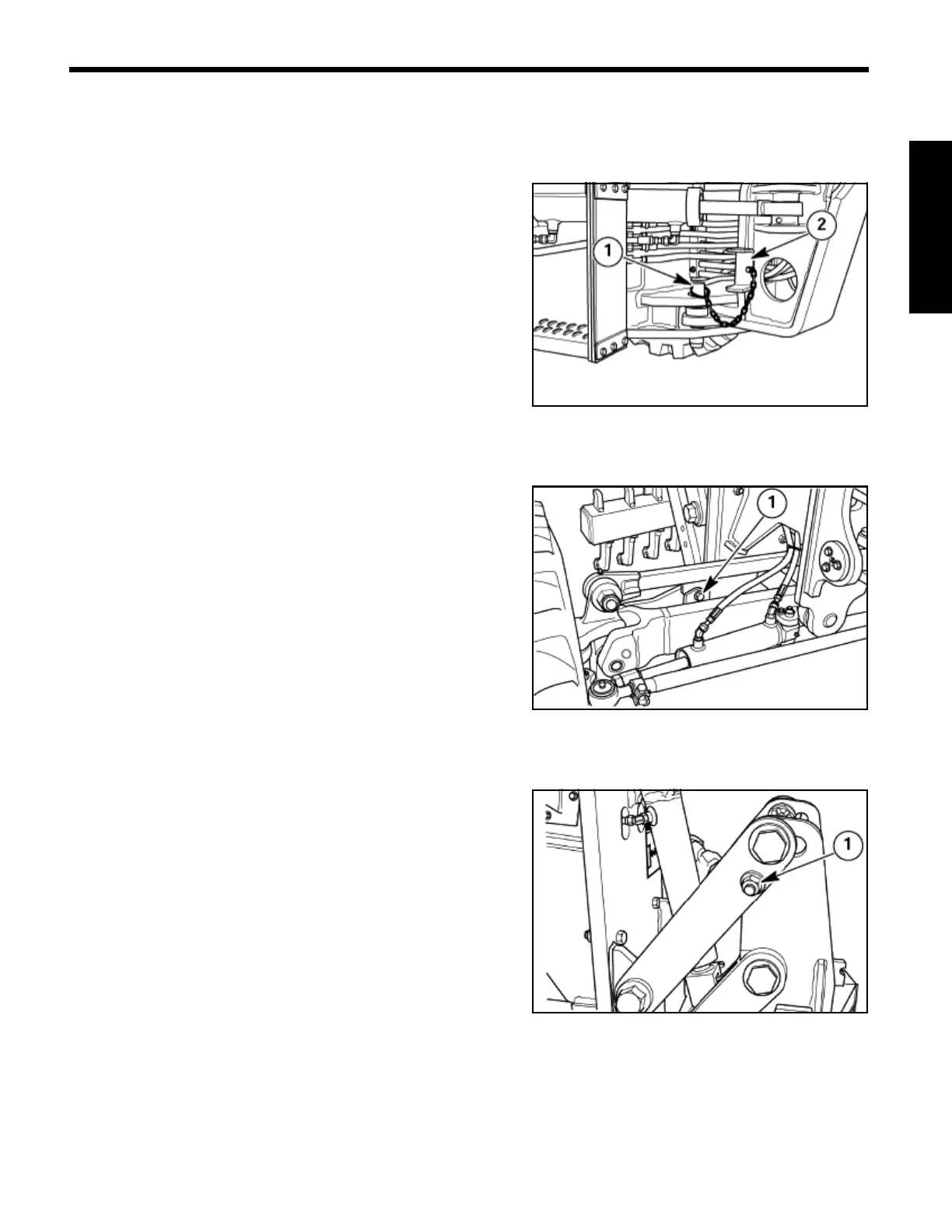

The articulation lock pin
(1) prevents articulation. Store
the pin in the storage bracket
(2) during operation.
The wheel lean lock pin
(1) prevents side-to-side
movement of the front steering wheels but does not
prevent steering. Remove the wheel lock pin when
operating the machine.
The front and rear-mounted implement lock pins
(1)
prevent lowering of the implement. Install the lock pins
whenever traveling between job sites or transporting the
motor grader on a trailer.
