NORAM 65ET GRADER
2-22
General Information
2
Component Identification and Locations

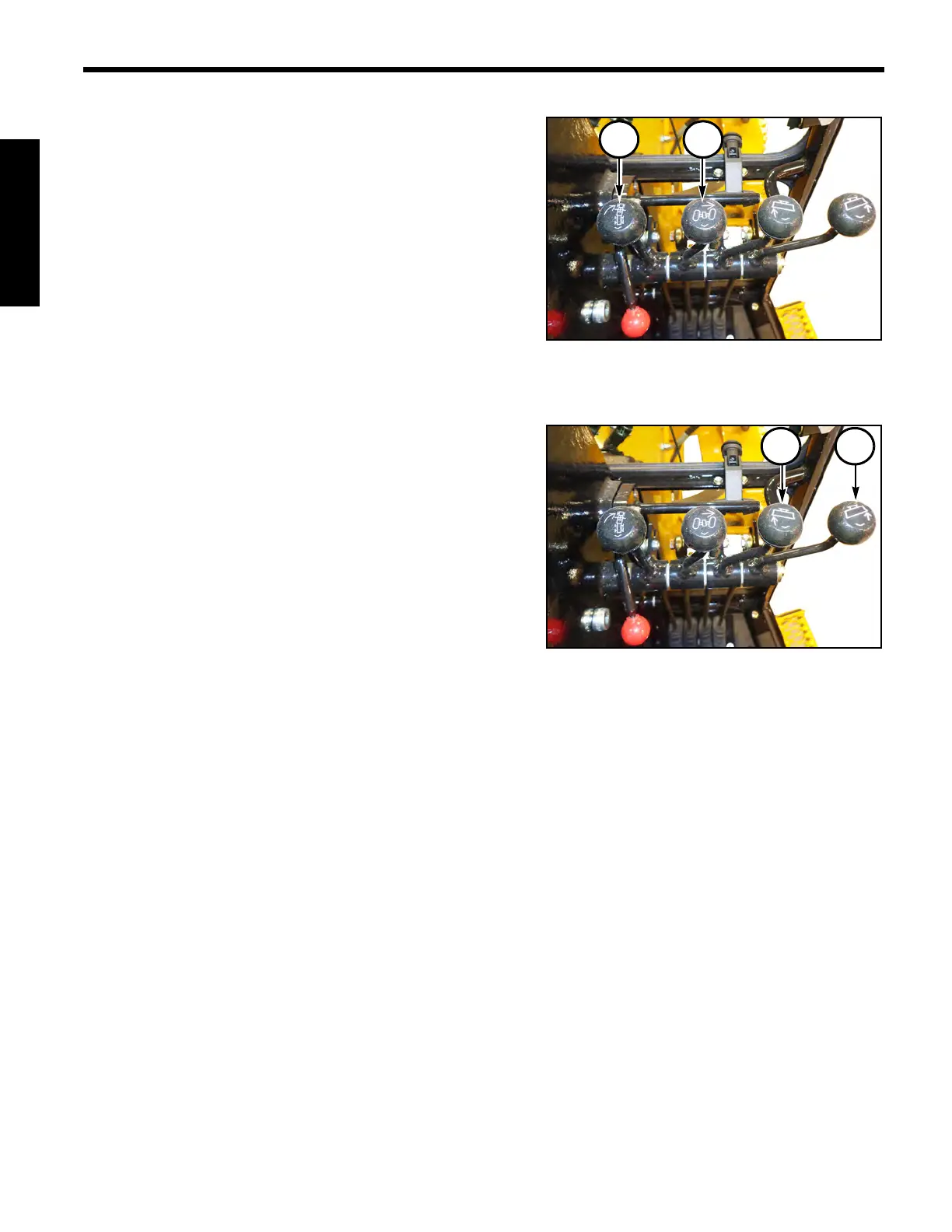

Articulation Control Lever
Lever (1) operates the articulation cylinders, causing the
center of the motor grader to pivot.
Front Wheel Lean Control Lever
Lever (2) controls the angle of the front wheels.
NOTE: Front wheel lock pin must be manually
removed before leaning wheels.
Left Side Moldboard Height Control Lever
Lever (3) raises, lowers or floats the left side of the
moldboard.
Right Side Moldboard Height Control Lever
Lever (4) raises, lowers or floats the right side of the
moldboard.
