OPERATING INSTRUCTIONS
WARNING: KEEP HANDS CLEAR OF THE REACTION ARM.
WARNING: WHEN USING THIS TOOL IT MUST BE SUPPORTED AT ALL TIMES IN
ORDER TO PREVENT UNEXPECTED RELEASE IN THE EVENT OF
FASTENER OR COMPONENT FAILURE.
WARNING: BEFORE USING TOOL, WEAR SUITABLE PPE, INCLUDING SAFETY
SHOES, EYE PROTECTION, GLOVES AND OVERALLS.
WARNING: IF EQUIPMENT IS USED IN A MANNER NOT SPECIFIED BY THE
MANUFACTURER, INJURY OR DAMAGE COULD RESULT.
WARNING: CHANGING THE AIR PRESSURE AFTER SETTING THE PRESSURE
REGULATOR WILL CHANGE THE STALL TORQUE VALUE.
Tightening
1. Fit the PneuTorque
®
with the correct size impact or high quality
socket.
TIP: For added safety it is recommended to secure the socket to
the square drive.
This is often achieved using a pin and O-ring, see socket
manufacturer for guidance.
The drive squares all include a hole to accommodate a
socket retaining pin.
(Note: Socket & retaining pin not included)
TIP: The exhaust air (containing oil) is expelled from the tool at
the bottom of the handle. The exhaust barrel can rotate to
allow the operator to direct the flow of air away from them.
2. Ensure the Forward / Reverse collar is correctly set.
3. Set the air pressure as described in “setting torque for bolt tightening” within the Set Up section.

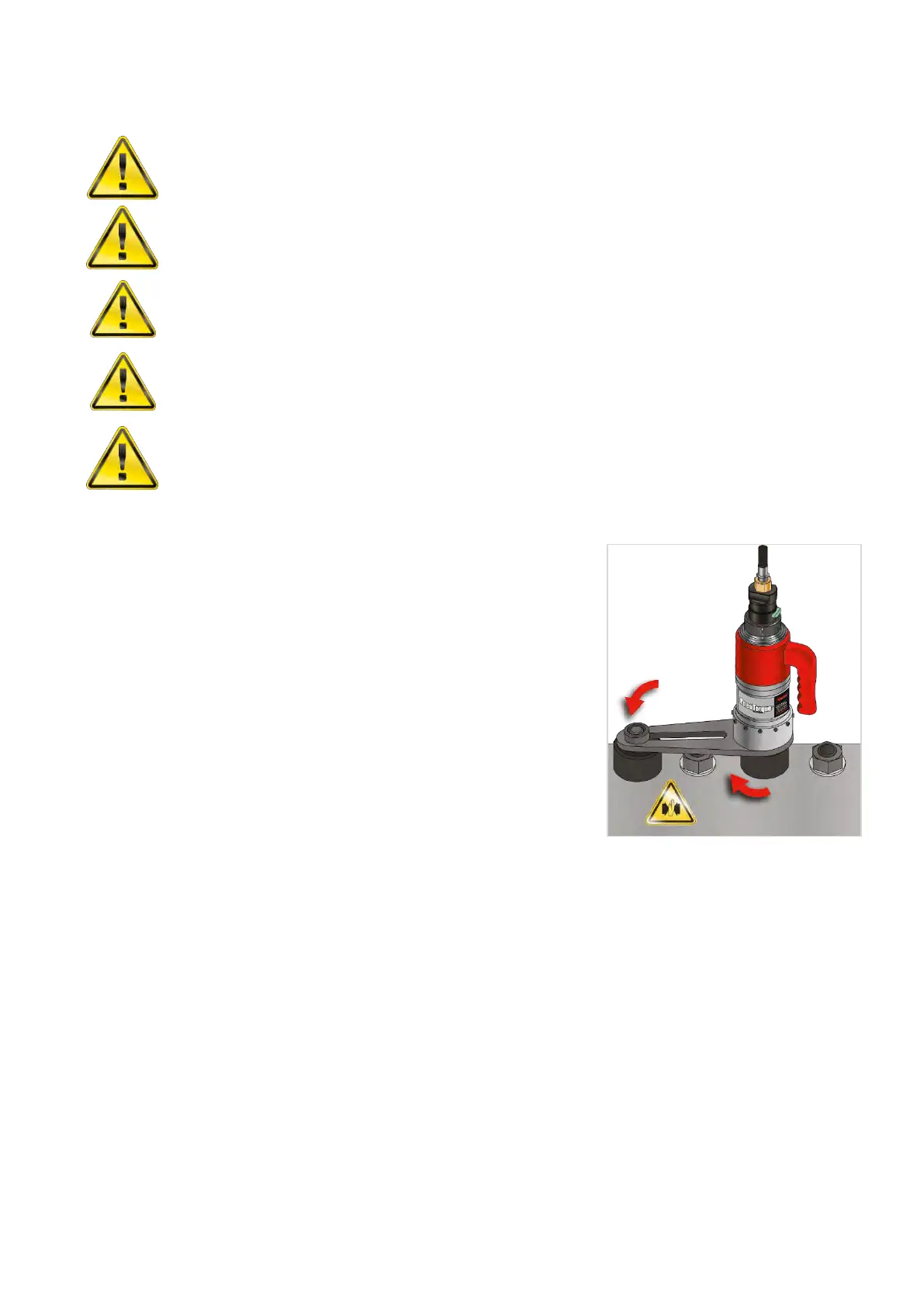

4. Rotate tool and reaction arm into a convenient position.
Fit the tool onto the fastener.
Locate reaction arm adjacent to the reaction point.
5. Adopt a suitable posture to counteract normal or unexpected movement of the tool due to reaction
forces.
NOTE: Follow the instructions for SINGLE SPEED, MANUAL TWO SPEED or AUTOMATIC TWO
SPEED:
Single Speed (Part Number with no suffix)
6. Press the trigger in short bursts to bring the reaction arm into contact with the reaction point.
7. Fully press the trigger and keep fully depressed until tool stalls.
