Installation
Installation must be performed by a refrigeration engineer.
Evaporator element Cu-330 split mounted on ceiling of element compartment.

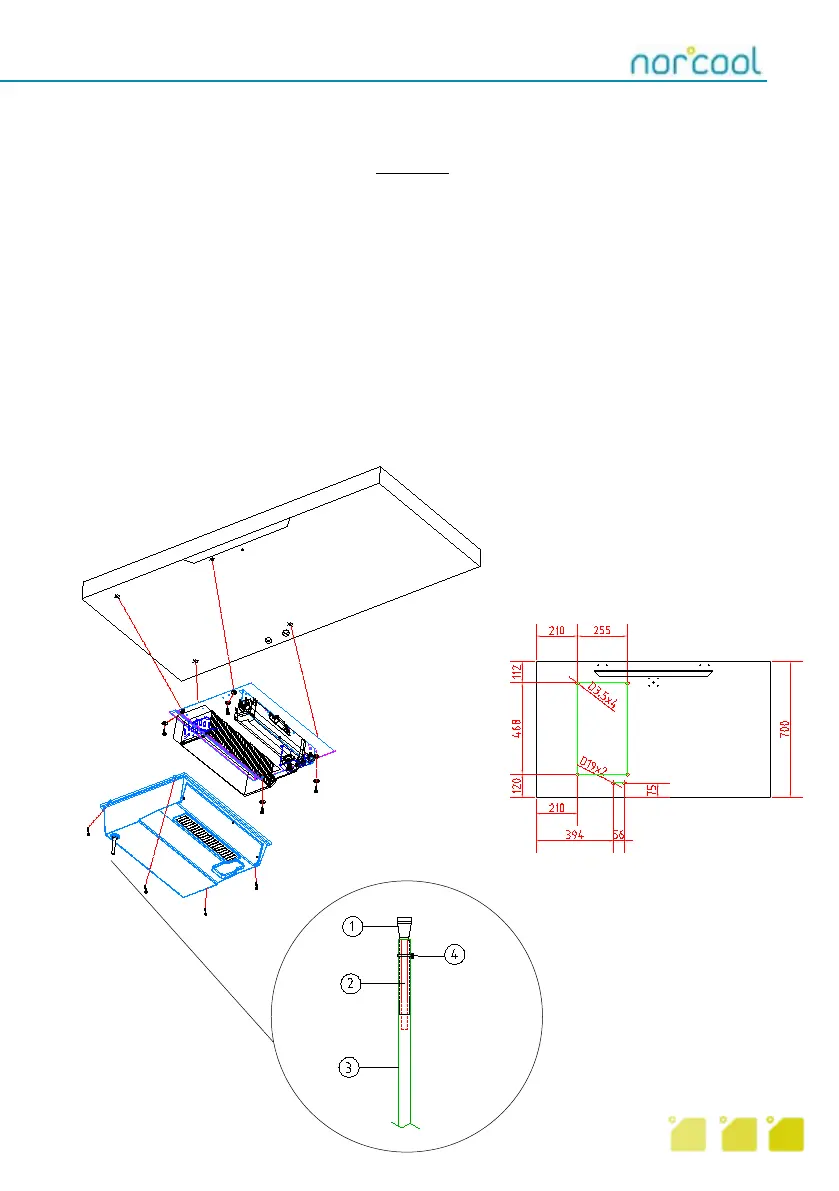

1. Mount evaporator element on ceiling using 4 x 3.9x32mm screws. Installation in pantry: See
diagram for correct mounting and location.
2. Pipe connection is on right side of evaporator. Prepare appropriate piping over ceiling.
Install dry filter over ceiling.
3. Prepare for electric connection between units. Install 4 pin cable clamp above ceiling on
evaporator element.
4. Fit cover using 4 x 3.9x32mm screws.
5. Connect plastic hose to drain nozzle. NOTE: Reinforce join with copper tube. See diagram
below.
Measure ceiling
1. Rubber drainpipe
2. Copper tube
3. Plastic hose
4. Strips
4
