Cu-330/Cu-450 splitt
CU-450-Split

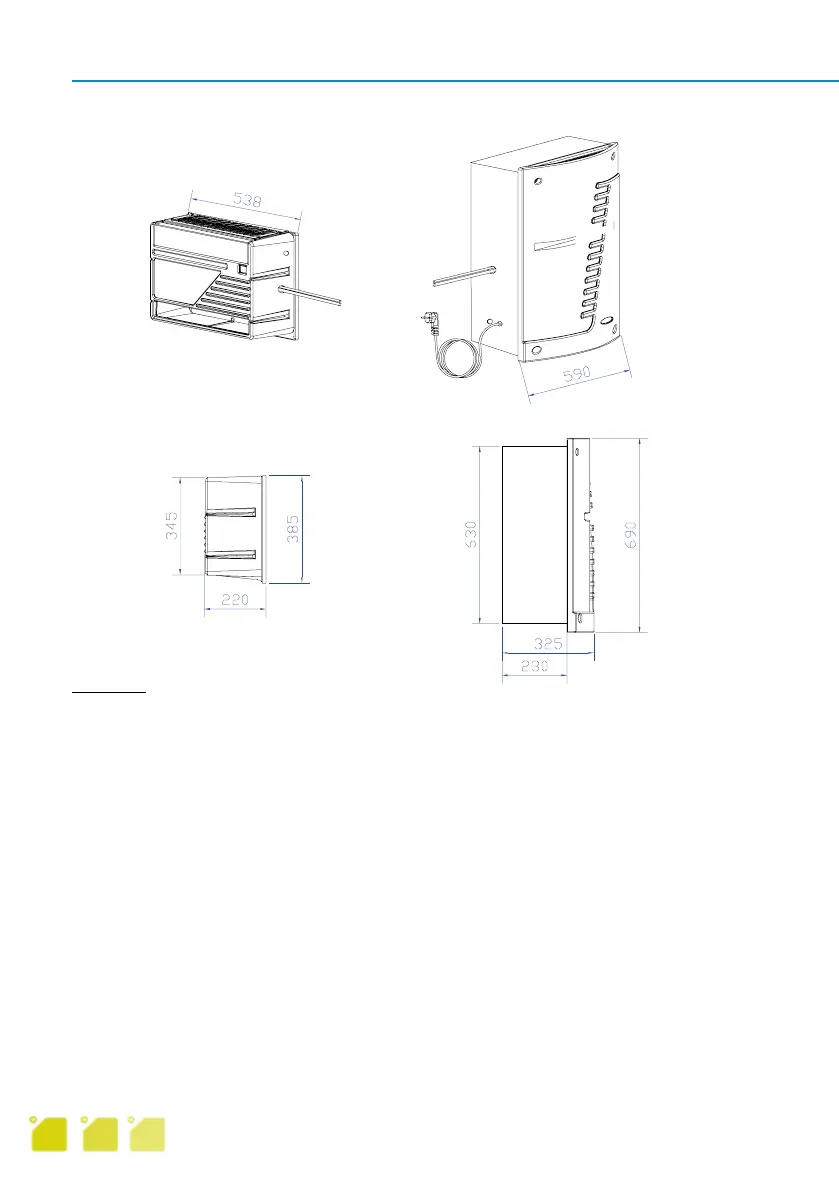

Dimensions and technical specications
Installation
Installation must be performed by a refrigeration engineer.
Evaporator element CU-330 Split. Wall mounted
1. Install evaporator element using 4 x 3.9x32mm screws on wall 200 – 300mm down from ceiling
and with space at sides for pipe installation.
2. Do not locate the unit directly opposite the door as this can cause condensation on the magnetic
seals around the door.
3. Pipe connection is on right side of evaporator. Prepare appropriate piping. Install dry filter.
4. Prepare for electric connection between units.
5. Fit cover using 4 x 3.9x32mm screws.
6. Connect plastic hose to drain nozzle NOTE: Reinforce join with copper tube. See diagram.
CU-450 SPLIT
External dimensions, warm element w440 x h290 x d400mm
External dimensions, cold element w587 x h385 x d220mm
Power Max. 330W
Lighting 15W tube
Defrost Automatic
Coolant R134A
Net weight, cold element 8 kg
Net weight, warm element 21.5 kg
Power cable length 2.7m
Compressor Danfoss
Volt/Hz 220-240V AC 50Hz
Capacity Up to 10,000 litres
Thermostat setting 3-12ºC
Ambient temperature 10-27 ºC
Unit cold element installed on wall.
Cu-450 cold element
Evaporator element
Cu-450 cold element
Evaporator element
