5.2 Description of parameters
Pos: 29 0 /Anlei tung en/El ektr onik/FU und Star ter/5 . Par ameter/ Allg emei n/Par ameter beschr eib ung_0 2 [SK 1x0 E, SK 2x xE, SK 2xx E-FDS] @ 9\ mod_1447407455915_388.docx @ 263304 @ @ 1
1

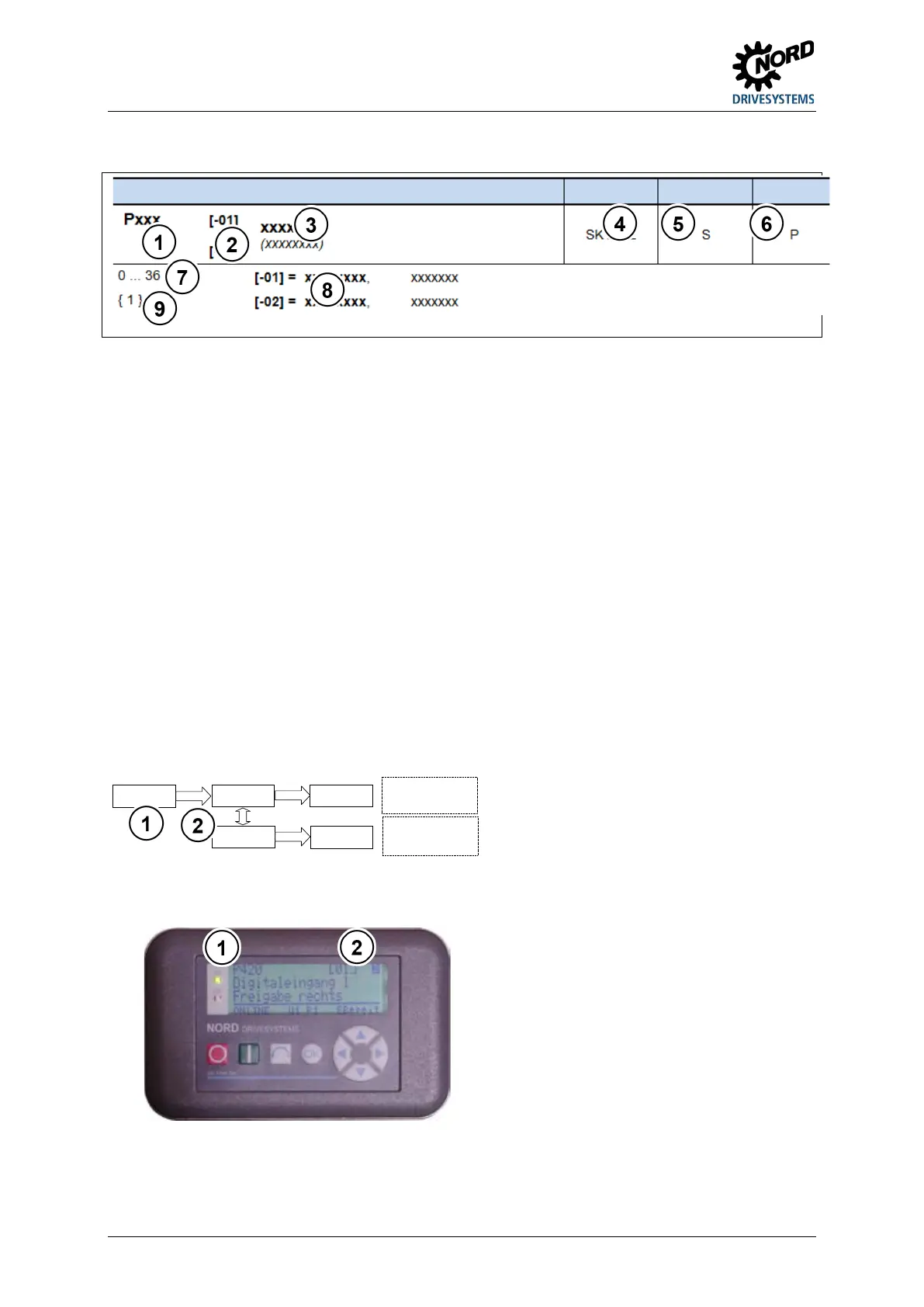

Parameter number
2
Array values
3
Parameter text; top: Display in ParameterBox, bottom: Meaning
4
Special features (e.g. only available in device model SK xxx)
5
(S) Parameter of type Supervisor,  depending on setting in P003
6
(P) Parameter, to which different values can be assigned depending on the selected parameter set
(selection in P100)
7
Parameter value range
8
Description of parameters
9
Factory settings (default value) of parameter
Pos: 29 1 /Anlei tung en/El ektr onik/FU und Star ter/5 . Par ameter/ Allg emei n/Par ameter beschr eib ung_0 4 [SK 1x xE, SK 2xx E, SK xxx E-FDS] @ 9\ mod_1447406517749_388.docx @ 263271 @ @ 1
Array parameter display
Some parameters have the option of displaying settings and views in several levels ("arrays"). After
the parameter is selected, the array level is displayed and must then also be selected.
If the SimpleBox SK CSX-3H is used, the array level is shown by _ - 0 1. With the ParameterBox
SK PAR-3H (picture on right) the selection options for the array level appear at the top right of the
display (Example: [01]).
Array display:
SimpleBox SK CSX-3H
P 01
P
420
P 02
1
0
Meaning:
Digital input 1,
enable right function
Meaning:
Digital input 2,
no function
ENTER
ENTER
ENTER
VALUE
1
Parameter number
2
Array
ParameterBox SK PAR-3H
1
Parameter number
2
Array
