FI size
Device type
Housing dimensions Mounting dimensions
tot. Weight
Approx.
[kg]
g2 n p d1 d2 d3 e1 e2
∅
Size 1
SK TIE4-WMK-L-1
150.5 236 156
257 187 61 130 100 5.5
3.3
Part. No. 275 274 005
Size 2
SK TIE4-WMK-L-1
157.5 266 176 4.4
Part No. 275 274 / 005
Size 3
SK TIE4-WMK-L-2
174.5 330 218 303 212 81 150 120 5.5 7.3
Part No. 275 274 / 006
All dimensions in [mm]
1
Introduction of fan connecting cable

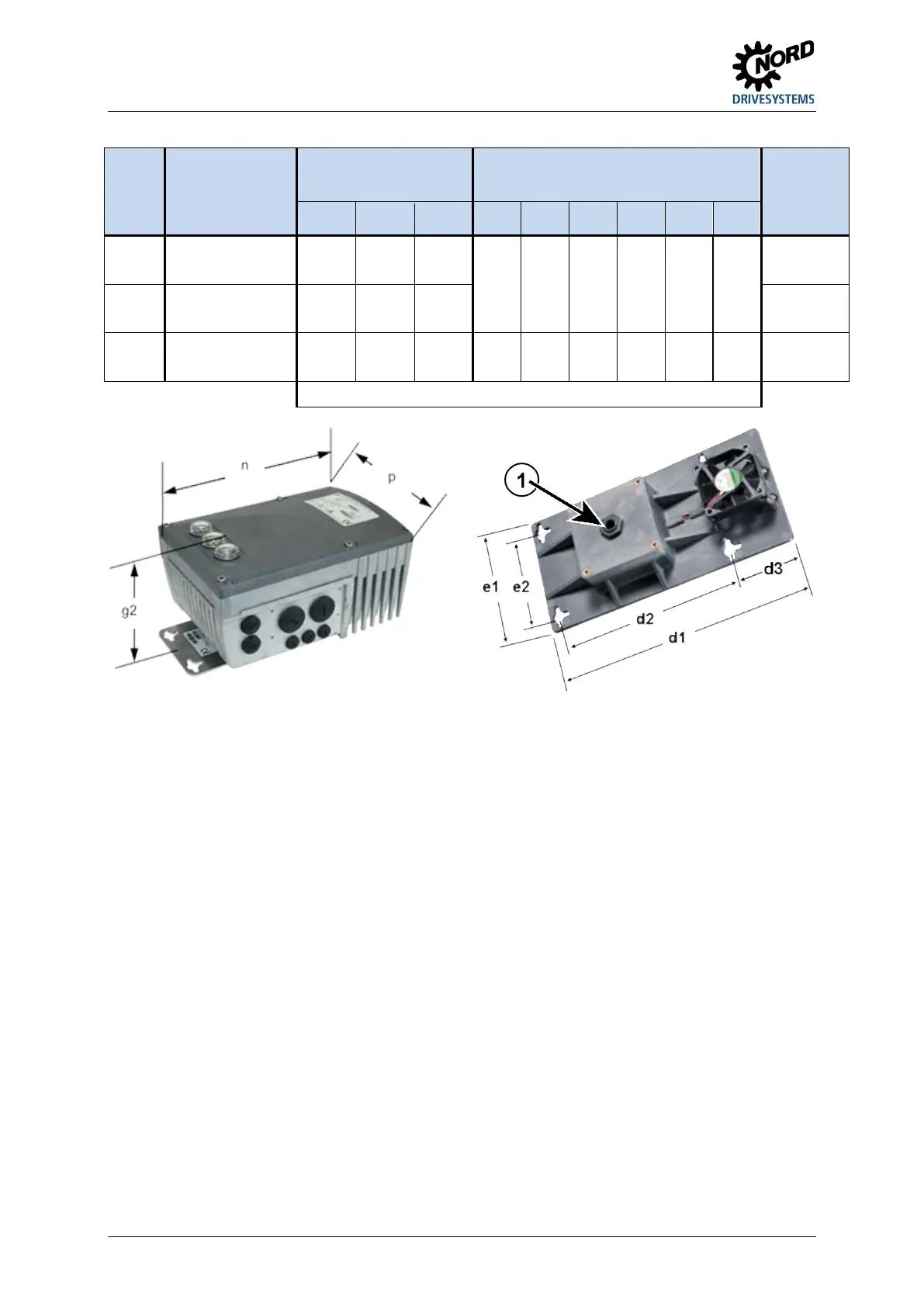

Figure 12: SK 2xxE with wall-mounting kit Figure 13: SK TIE4-WMK-L …
