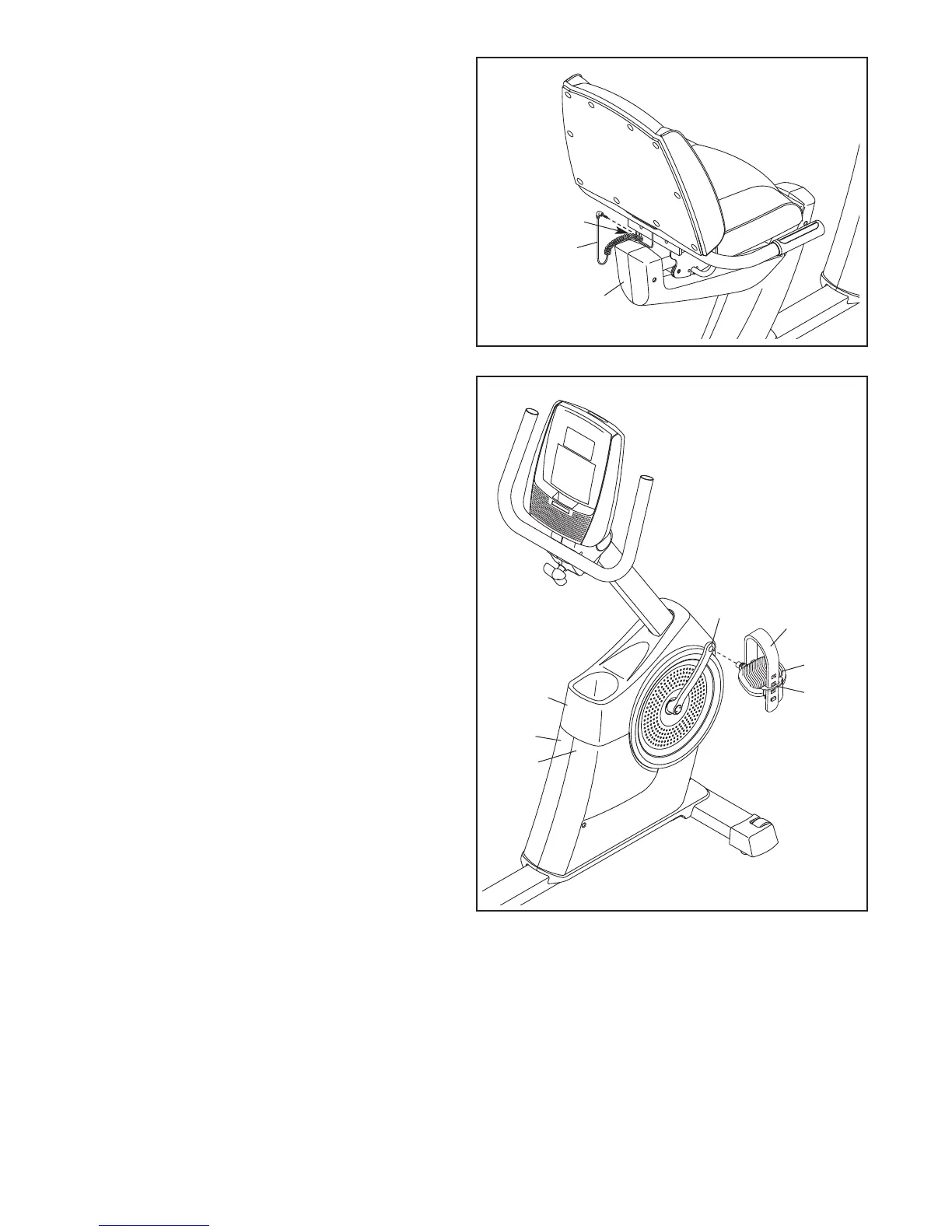

12. Plug the Pulse Bar Pulse Wire (92) into the
Frame Pulse Receptacle (91) located in the Left
Seat Shield (24).
13. Identify the Right Pedal (16), which is marked
with an “R.”
Using an adjustable wrench, firmly tighten the
Right Pedal (16) clockwise into the Right
Crank Arm (17).
Firmly tighten the Left Pedal (not shown)
counterclockwise into the Left Crank Arm (not
shown).
Adjust the right strap to the desired position,
and press the ends of the strap onto the tabs on
the Right Pedal (16). Adjust the strap on the
Left Pedal (not shown) in the same way.
92
91
24
16
17
5
Strap
Tab
22
13
21
