5
M8 x 16mm Patch
Screw (60)–10
M8 Split
Washer (61)–12
M6 Washer
(66)–4
M4 x 16mm
Screw (98)–8
M10 x 95mm Patch
Screw (62)–4
M6 x 60mm Bolt Set (68)–1
M6 x 70mm Bolt Set (67)–1
M6 x 50mm Patch Screw (65)–4
M8 x 45mm Patch
Screw (63)–2
M8 x 20mm
Washer (70)–2
ASSEMBLY
A
ssembly requires two persons. Place all parts of the exercise bike in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver and an
a
djustable wrench .

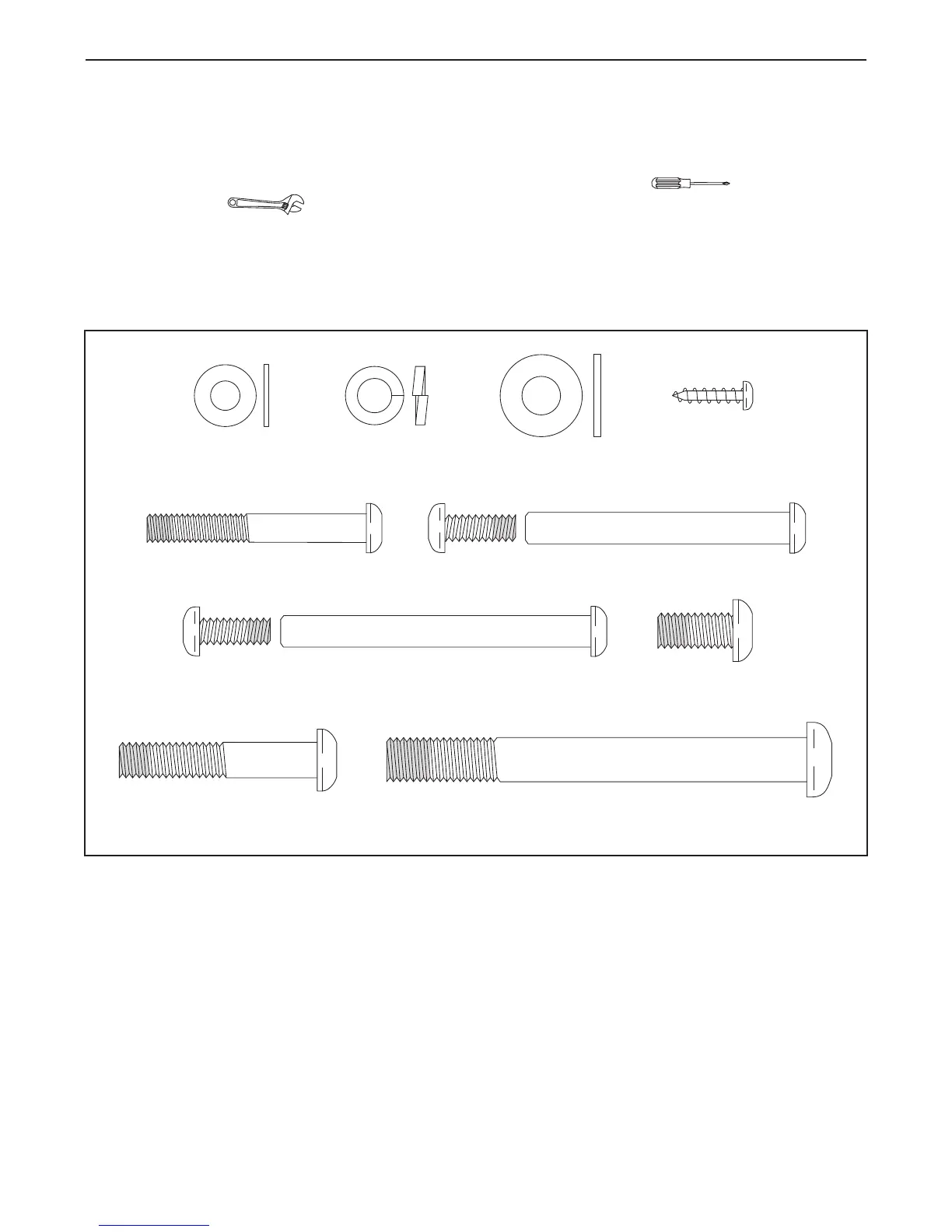

See the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following
the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if
it has been preassembled. To avoid damaging parts, do not use power tools for assembly.
