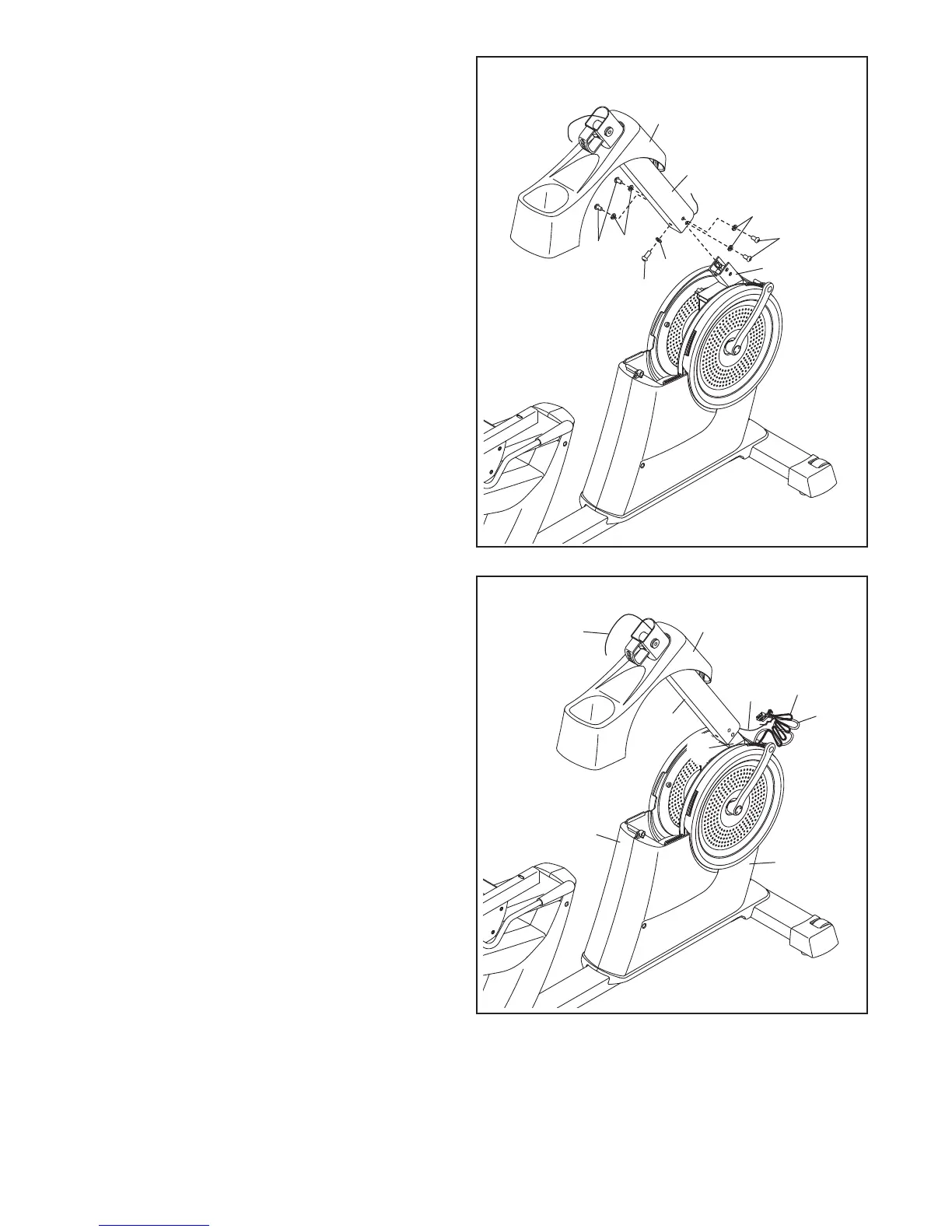

3. Slide the Shield Cover (5) upward onto the
Upright (4).
Have a second person hold the Shield Cover
(5) around the Upright (4) until you complete
step 4.
T
ip: Avoid pinching the wires inside the
Frame (1). Slide the Upright (4) onto the
Frame.
Attach the Upright (4) with five M8 x 16mm
Patch Screws (60) and five M8 Split Washers
(61).
4. Locate the wire tie inside the Upright (4). Then,
locate the Wire Harness (89) and the Frame
Pulse Wire (91) inside the Frame (1).
Tie the lower end of the wire tie to the ends of
the Wire Harness (89) and the Frame Pulse
Wire (91).
Then, pull the other end of the wire tie upward
until the Wire Harness (89) and the Frame
Pulse Wire (91) are routed completely through
the Upright (4).
Then, slide the Shield Cover (5) downward and
press it onto the Right and Left Front Shields
(21, 22).
4
60
60
89
91
21
60
61
61
61
4
4
5
5
1
Wire Tie
Wire
Tie
1
Avoid pinching
t
he wires
22
To Next Page
