Installation
A1-11
E 2000 Nordson Corporation
All rights reserved
41-3000V
Issued 5/00
A3EN-04-[3V-A-AAXP]-12
Follow this procedure to route the hoses and connect them to the guns
and the unit.
If your system is designed for external circulation of the adhesive, which
requires both supply and return hoses, you must follow a different
procedure for installing hoses. Go to Installation Procedures for
Externally Circulating Systems at the end of this section.
1. Follow the instructions in the gun manual to connect a hose to each
gun, but do not connect the gun cordsets at this time.
2. Determine whether your unit has a four-port or a six-port manifold.
Figure A 1-7 shows both manifolds and the hose port numbers on
each type of manifold. Note that the first hose port on a six-port
manifold is located on the back side of the unit.
4130688
6543 21
4321
6 5 4 3 2
1
4 3 2 1
65

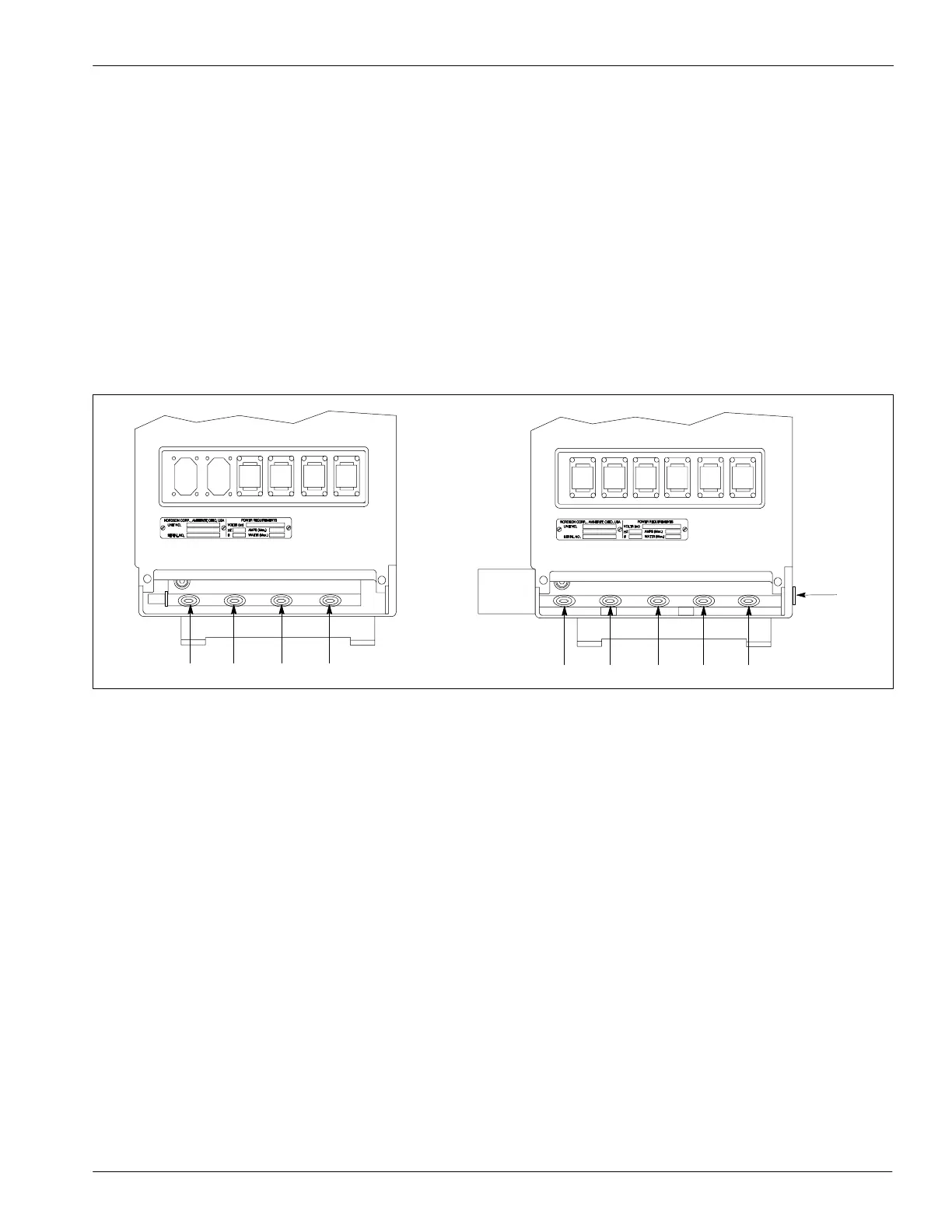

Fig. A 1-7 Four-Port Manifold (left) and Six-Port Manifold (right)
