After you have defined the patterns for outputs 1 and 2, follow this
procedure to program the pattern set into the system.
1. See Figure A 1-40. In the System Setup area, press the Move Up (1)
or Move Down (2) key until the OUTPUT 1 or OUTPUT 2 light (4)
turns on.
NOTE: Outputs are limited to 1 amp per output or 2 amps total per
unit. Ensure that the guns connected to your unit do not exceed this
rating.
2. Press the Move Right key (See Figure A 1-40, item 3) until the light
for the bead start or end point you want to program turns on (begin
with the start point for the first bead). See Figure A 1-41.

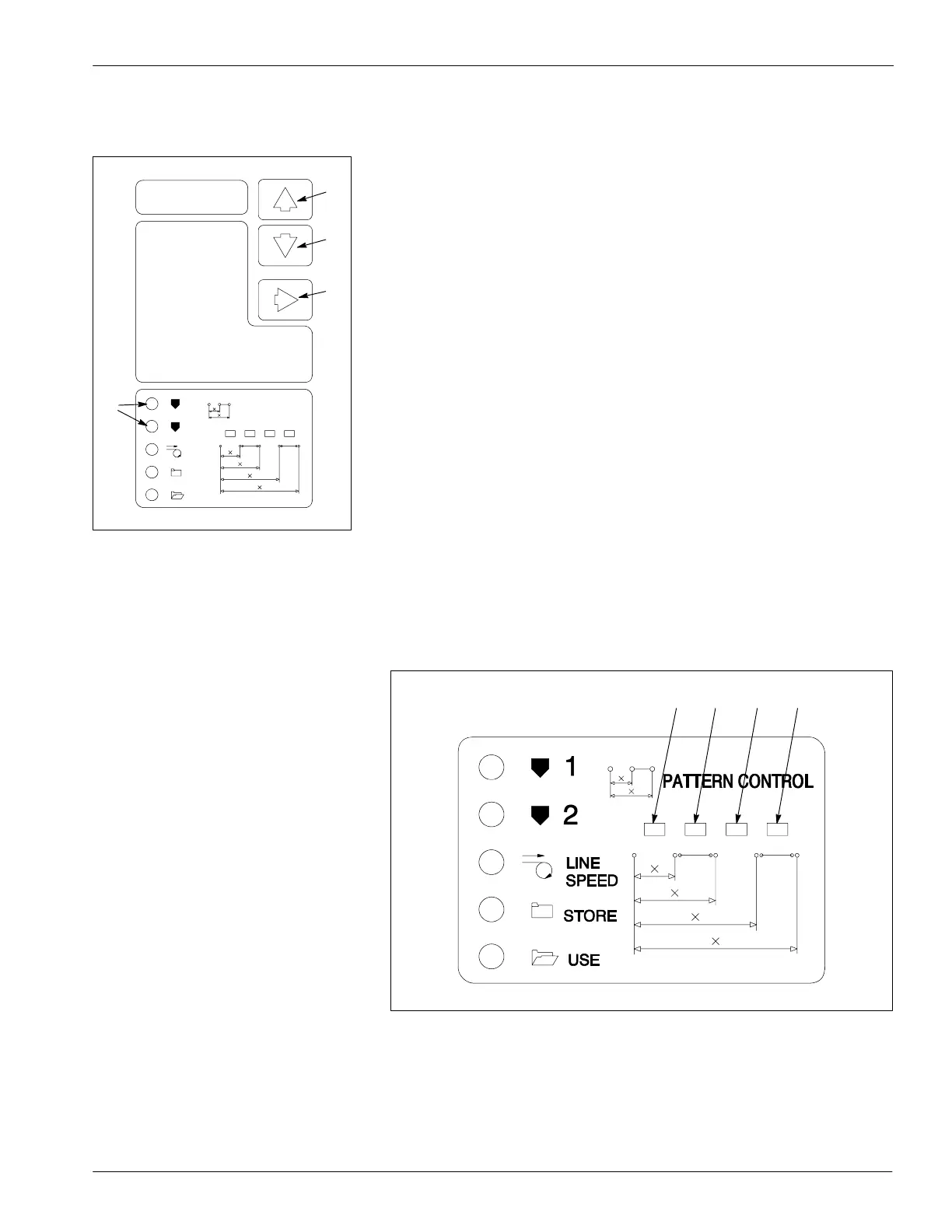

Fig. A 1 -40 Selecting an Output
1. Move Up key
2. Move Down key
3. Move Right key
4. Output lights
4130223
1 2 3 4
Fig. A 1-41 Pattern Definition Lights
1. Light for start point for first bead
2. Light for end point for first bead
3. Light for start point for second
bead
4. Light for end point for second
bead
