Installation
A1-17
E 2000 Nordson Corporation
All rights reserved
41-3000V
Issued 5/00
A3EN-04-[3V-A-AAXP]-12
To make the electrical connections inside the unit, follow this procedure
to open the unit and access the electrical enclosure.
WARNING: Risk of equipment damage, personal injury, or
death. Disconnect and lock out electrical power to the unit.
1. Place the unit’s POWER switch in the off position and disconnect and
lock out electrical power to the unit at the branch circuit disconnect
switch.
2. See Figure A 1-11. Loosen the captive screws on the electrical
enclosure lid, lift the lid from the unit, and prop it against the pump
cover. Take care not to disconnect the ground wire.
3. Make sure the support strap is not wrapped around any board
components. Untangle the strap if necessary.
4. Loosen the two captive screws on either side of the control-end frame
and lower the frame. You may need to pull the front and rear panels
apart to release the frame.
5. Avoid direct contact with internal electrical connections, components,
or wiring.
6. Make sure all ground wires are securely connected.
4130849A

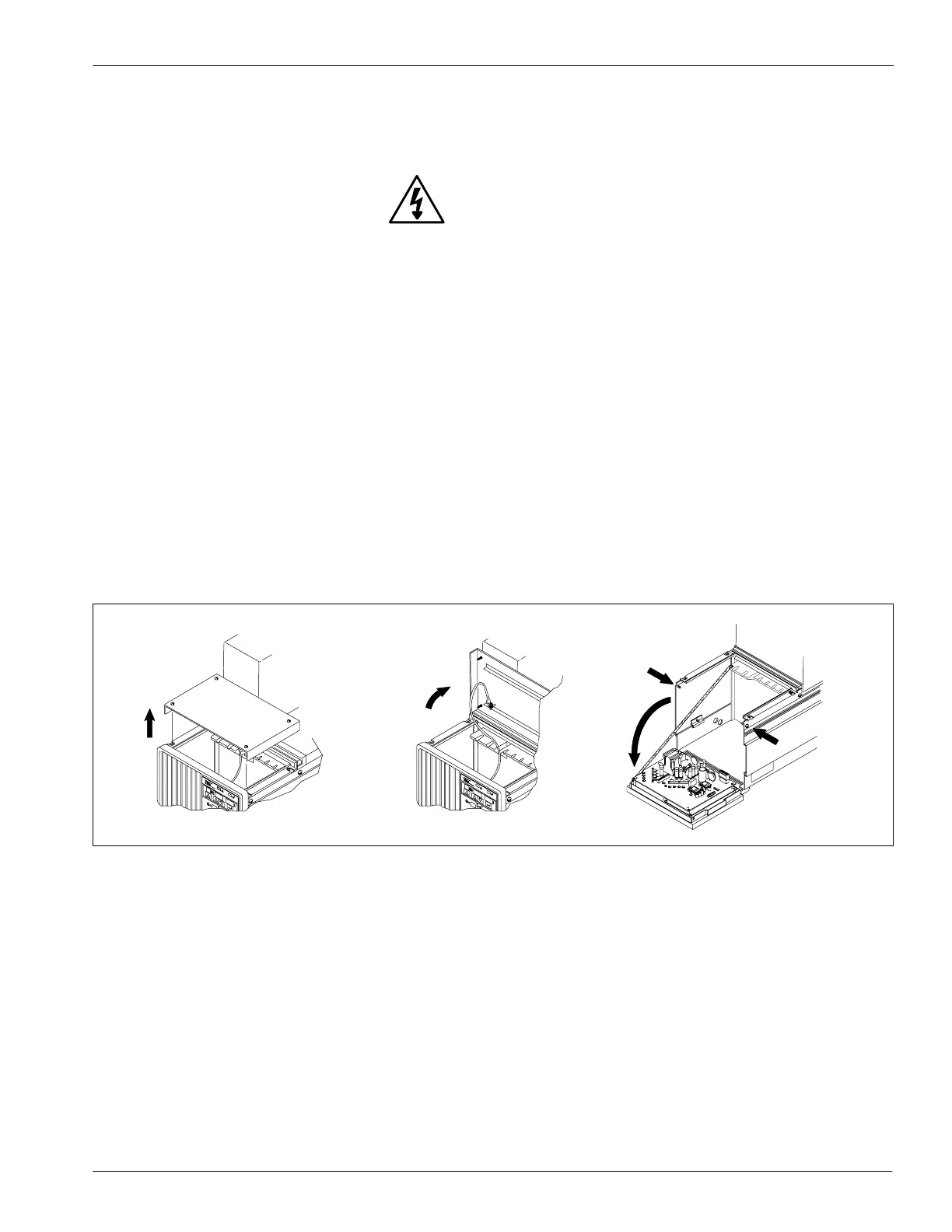

Fig. A 1 -11 Opening the Electrical Enclosure
O
e
g
he
ec
ca
c
o
u
e
