G6RA, G6RK Service Manual 19
W G Y R
Thermostat
A/C
Unit
Twin
Terminal
Twin
Terminal
R
C
Y
G
W
R
C
Y
G
W

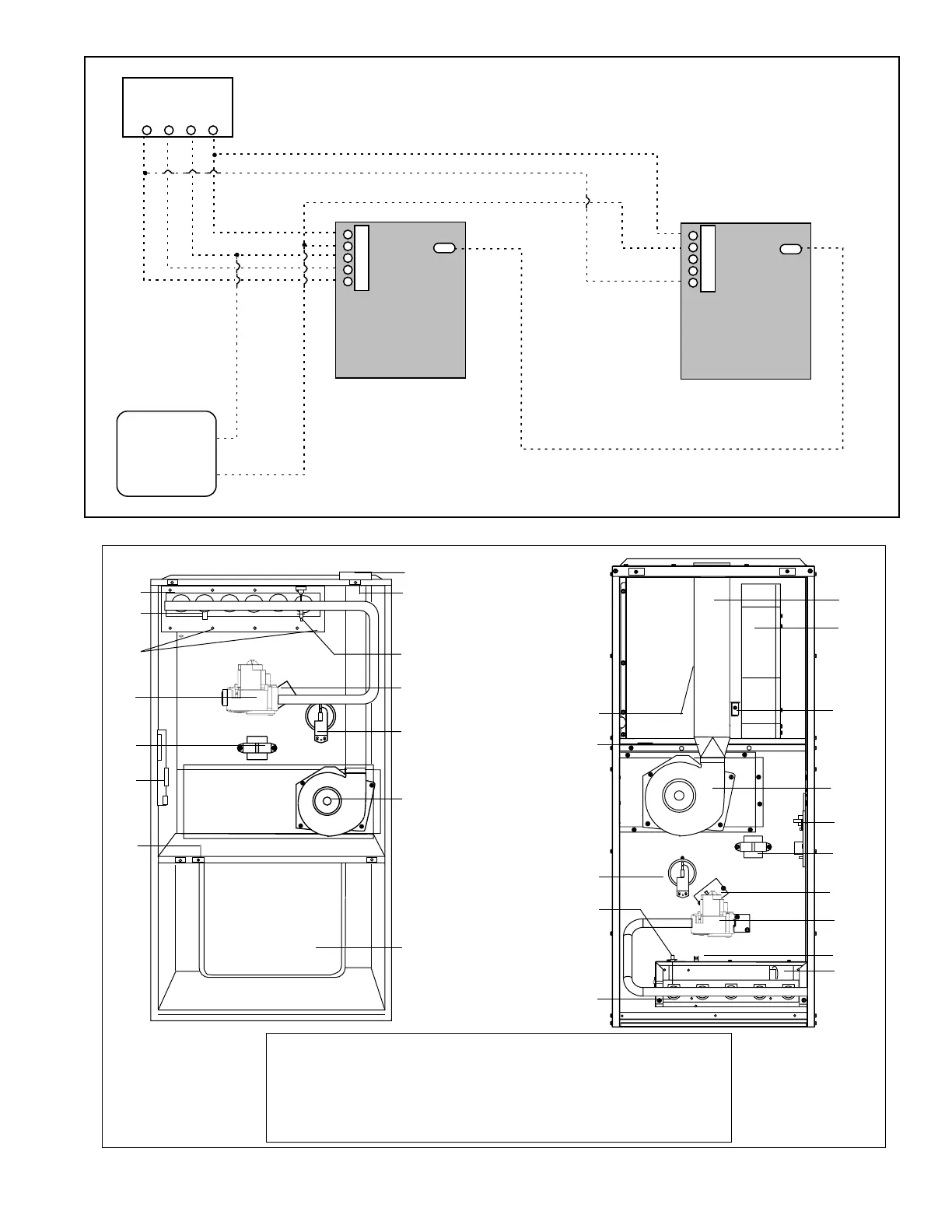

Figure 18. Twinning
Figure 19. Component Parts
3
4
1
6
7
13
15
10
12
2
5
7
6
3
10
4
1
11
9
5
2
11
9
8
12
14
13
16
14
G6RA
G6RK
13 Blower Assembly
14 Inducer
15 Combustion Tube
w/insulation (G6RK)
16 Vent Transition
Assembly (G6RK)
1 Ignitor
2 Flame Sensor
3 Gas Valve
4 Roll-Out Switch(s)
5 Pressure Switch
6 Control Board
7 Blower Door
Switch
8 Vent Assembly (G6RA)
9 Vent Switch
10 Low Voltage
Transformer
11 Burner Assembly
12 Supply Air Limit Switch
