11

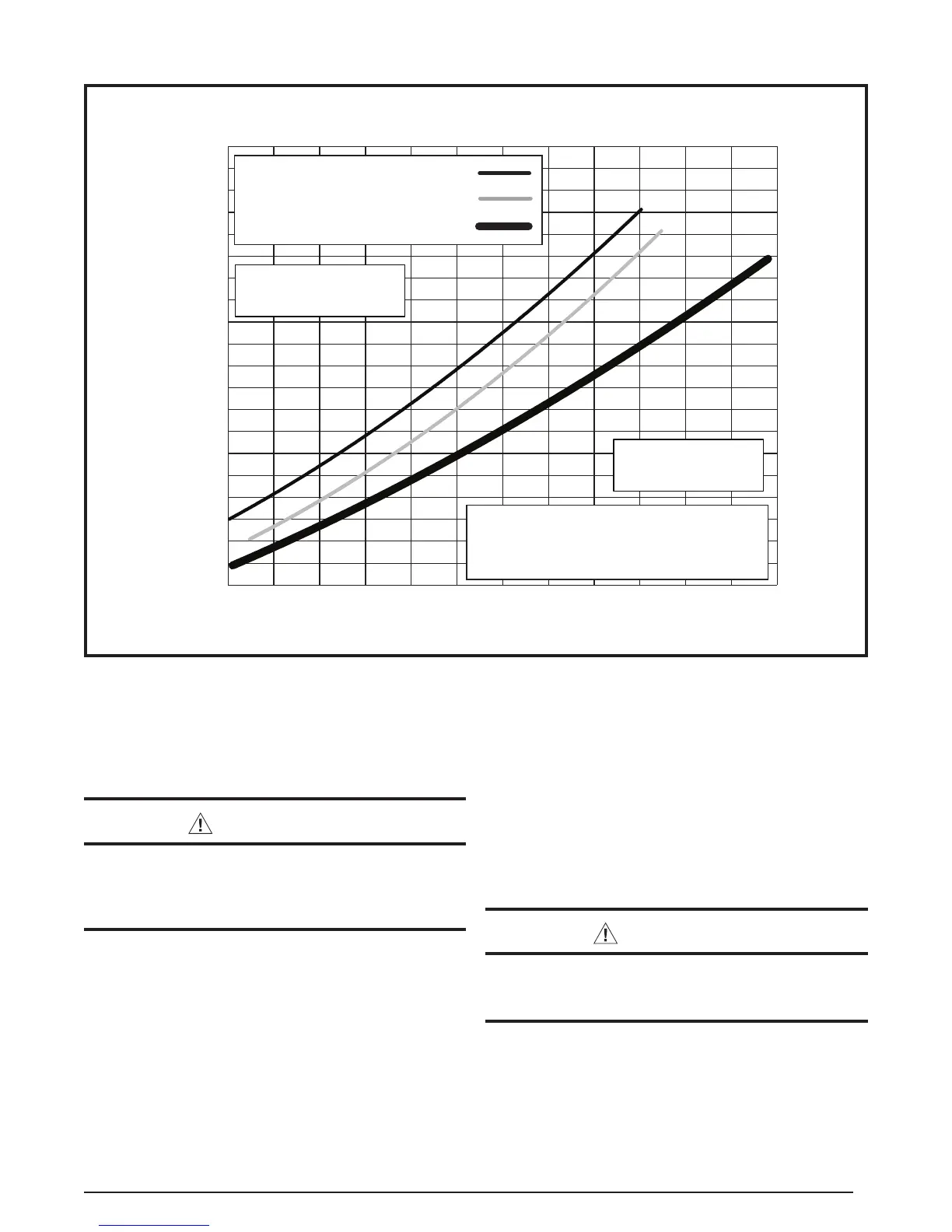

Figure 3. Charging Chart for 2 - 5 Ton Units
200
220
240
260
280
300
320
340
360
380
400
420
440
460
480
500
520
540
560
580
600
75 80 85 90 95 100105 110115 120125 130135
Liquid Temperature (F)
S4BE / SA4BE Charging Chart
Add refrigerant if
below the curve.
Remove refrigerant
if above the curve.
Do not add or remove refrigerant if
pressure reading is between unit
curves and saturation curve.
1.5, 3, 5 TON MODELS
2, 2.5, 3.5, 4 TON MODELS
R-410A SATURATION
AIR CONDITIONER MAINTENANCE
WARNING:
To prevent electrical shock, personal injury, or
death, disconnect all electrical power to the unit
before performing any maintenance or service.
The unit may have more than one electrical supply.
Proper maintenance is important to achieve optimum
performance from the air conditioner. The ability to properly
perform maintenance on this equipment requires certain
mechanical skills and tools. If you do not possess these
skills, contact your dealer for maintenance. Consult your
local dealer about the availability of maintenance contracts.
Routine maintenance should include the following:
• Inspectandcleanorreplaceairltersatthebeginningof
each heating and cooling season, or more frequently if
required.
• Inspect the condensate drain and outdoor coil at the
beginning of each cooling season. Remove any debris.
Clean the outdoor coil and louvers as necessary using a
mild detergent and water. Rinse thoroughly with water.
• Inspect the electrical connections for tightness at the
beginning of each heating and cooling season. Service
as necessary.
CAUTION:
The unit should never be operated without a
filter in the return air system. Replace disposable
filters with the same type and size.
• Donotattempttoaddadditionaloiltomotorsunequipped
with oil tubes. The compressor is hermetically sealed at
the factory and does not require lubrication.
