Split System Air Conditioner (Outdoor Section)
With ECM Outdoor Motor
Single Phase / 60 Hz.
NOTES:
1. Disconnect all power before servicing.
2. For supply connections use copper conductors only.
3. Not suitable on systems that exceed 150 volts to ground.
4. For replacement wires use conductors suitable for 105 .
5. For ampacities and overcurrent protection, see unit rating plate.
6. Connect to 24 vac/40va/class 2 circuit. See furnace/air handler installation
instructions for control circuit and optional relay/transformer kits.
7. Anti-Short Cycle Timer (ASCT) may or may not be installed in the unit.
installed as shown using manufacturer’s approved kit. If not present, connect
Yellow and Black wires per Note 6.
1. Couper le courant avant de faire letretien.
2. Employez uniquement des conducteurs en cuivre.
3. Ne convient pas aux installations de plus de 150 volt a la terre.
°C
COMPRESSOR
CONTACTS
T2
L2
CCH
OUTDOOR
FAN MOTOR
COMPRESSOR
CAPACITOR
L1
T1
24 VOLT FIELD
CONNECTIONS
LPSHPS
CC- CONTACTOR COIL
CCH - CRANKCASE HEATER
LPS - LOW PRESSURE SWITCH
HPS - HIGH PRESSURE SWITCH
(OPTIONAL)
YELLOW
(OPTIONAL)
WIRING DIAGRAM
711233A
07/13
FIELD WIRING
LEGEND:
LOW VOLTAGE
HIGH VOLTAGE
208/230V
HC
R
C
S
C
Y
CC
Iput2
C
ECM
L2
L1
Iput1

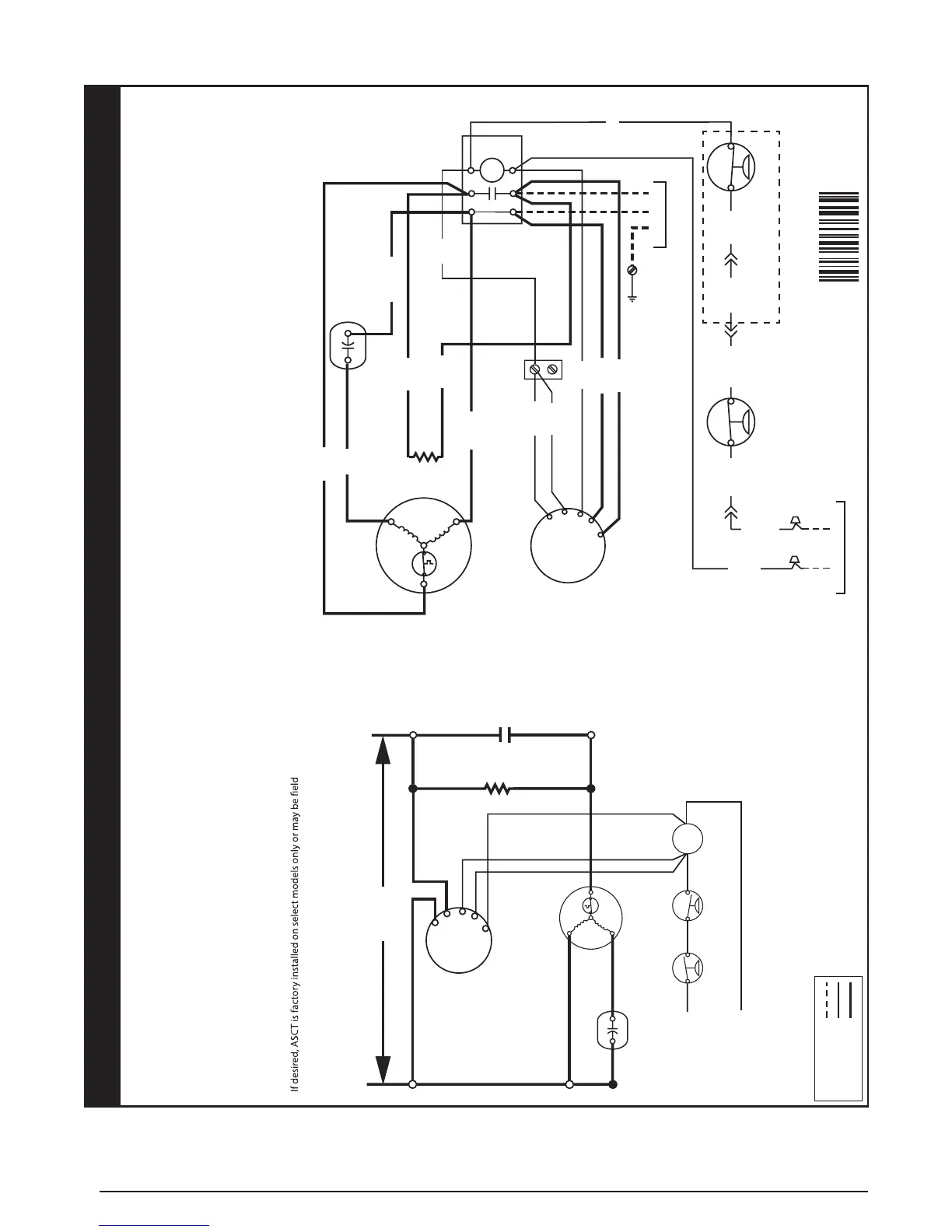

Figure 6. Wiring Diagram for 5 Ton Models (without CoreSense
