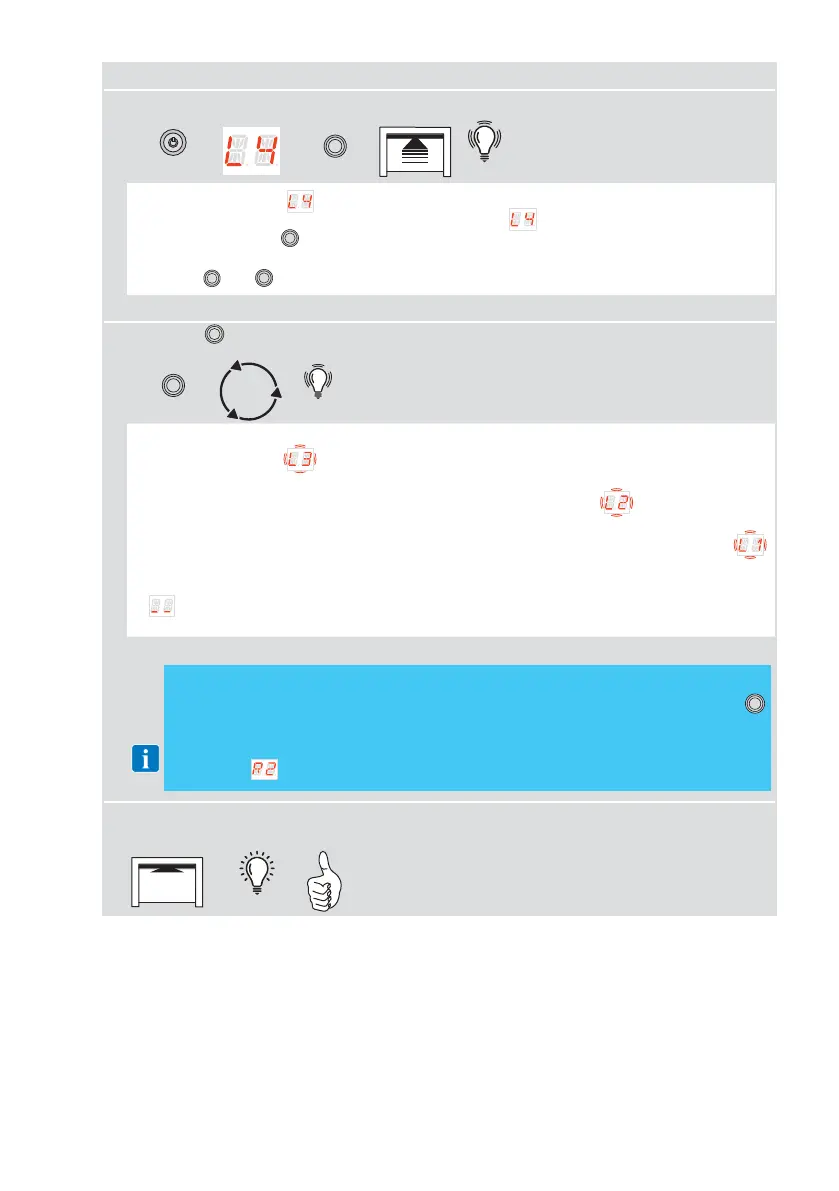

Self-learning procedure
1. Turn on the power supply and set the open position.
ON
→ →
UP
→ ;
COURTESY
LIGHT
X4
• The display flashes .
• The courtesy light flashes 4 times during operation .
• Press and hold the
UP
button. The door will open.
• Release the button when the required opening position is reached.
• Use the
UP
and
DOWN
buttons to correct the position if necessary.
2.
Press the
ENTER
button. Self-learning operation start
ENTER
→
SELF
LEARNING
START
; (
COURTESY
LIGHT
FLASHING
)
• The automation stores the opening position and begins a closing operation.
• The display flashes
.
• Integrated LED light flashes 3 times.
• When the door reaches the closed position, the display flashes
. The courtesy light
flashes twice.
• The automation opens automatically as far as the open position. The display flashes .
The courtesy light flashes once.
• The automation automatically recloses as far as the closed position, the display visualizes
and the door reopens.
• The lamp does not flash.
If the garage door stops before reaching the closed position, this could be due to an
obstacle detected during the learning stroke. Stop the procedure by pressing the
ESC
key to avoid incorrect acquisition. Check for any physical obstacles (also check he
sliding friction) and repeat the procedure. If necessary, change the thrust values via
parameter
3.
The self-learning procedure is complete when the door is fully open, and the courtesy
light is ON.
HOLD
UP
→
COURTESY
LIGHT
→
