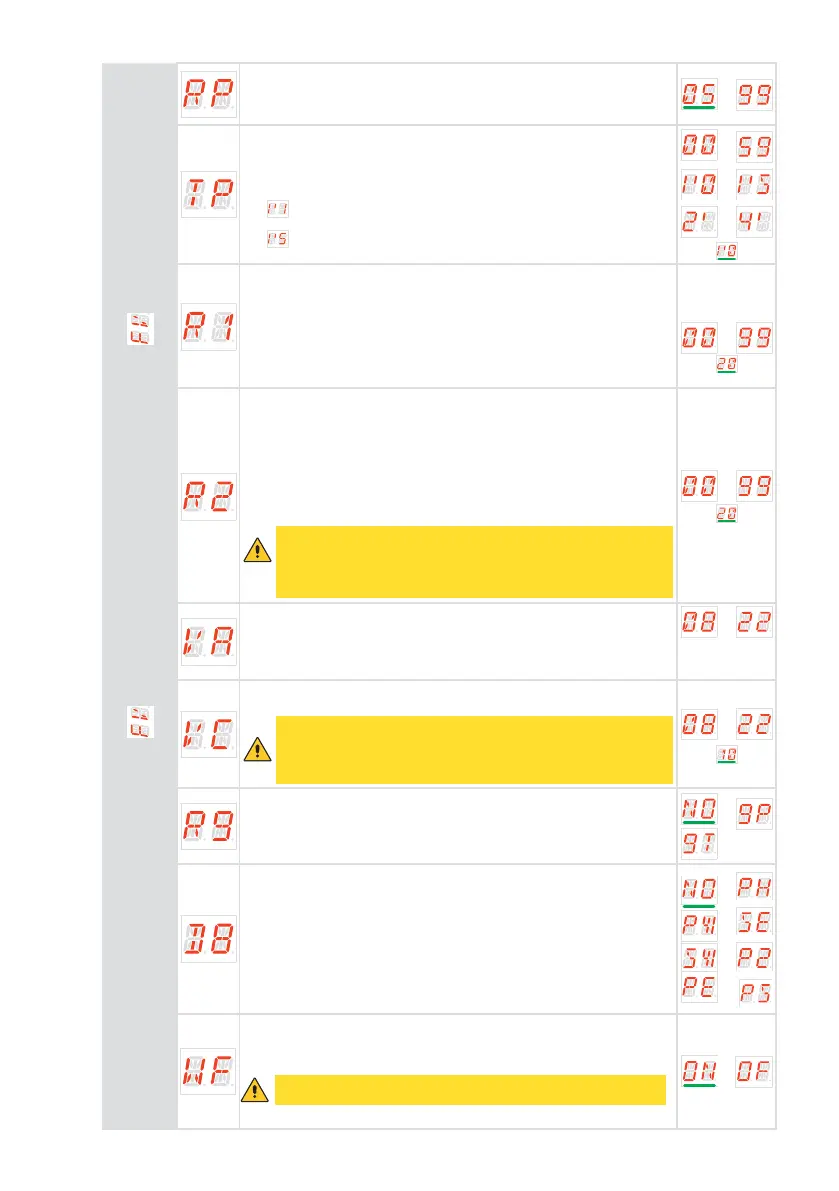

RP - Adjustment of partial opening measurement [%]
This parameter adjusts the percentage of partial opening in relation to
the total opening of the automation.
• from 5% to 99 % with intervals of 1 %
...
TP - Setting of automatic closing time after partial opening [s]
It is set with different intervals of sensitivity:
• from 0” to 59” with intervals of 1 second
• from 1’0 to 1’5 with intervals of 10 seconds
For each interval, the display visualizes:
-
→ 1 minute and 10 seconds
- ...
-
→ 1 minute and 50 seconds
• from 2’ to 4’ with intervals of 1 minute
...
...
...
R1 - Adjustment of thrust on obstacles and motor current during
opening [%]
When the thrust exceeds the threshold, the system detects an obstacle
and the movement is stopped.
00 - Minimum thrust (minimum current delta for obstacle detection)
99 - Maximum thrust (maximum current delta for obstacle detection)
The threshold is calculated dynamically like a delta on the motor current
measured during the opening stroke.
...
R2 - Adjustment of thrust on obstacles and motor current during
closing [%]
When the thrust exceeds the threshold, the system detects an obstacle, and the
movement is inverted. It has divided in two ranges with a different sensibility to
give maximum flexibility according to needs:
from 00 to 40 – Soft thrust
from 41 to 99 – Strong thrust
The threshold is calculated dynamically like a delta on the motor current mea-
sured during the closing stroke.
WARNING: The default value ensures the closing thrust force values
return within the limits established by Standard EN12453. Set different
values to have stronger thrust force but in this case be aware that it is not
guaranteed the fulfilment of limits by Standard EN12453. This operation
must be carried out by qualified personnel.
...
VA - Opening speed [cm/s]
• from 8 to 22 cm/s with intervals of 1 cm/s
...
(default value.
Depends on AS
setting)
VC - Closing speed [cm/s]
• from 8 to 22 cm/s with intervals of 1 cm/s
WARNING: the default value ensures the closing thrust force va-
lues return within the limits established by Standard EN12453.
In case a higher closing speed is set it is not guaranteed the
fulfillment of limits by Standard EN12453.
...
R9 - Configuration of input 1-9
• NO: disabled.
• 9P: open state of the input triggers permanent stop (default).
• 9T: open state of the input triggers temporary stop. Once contact
closes, automatic closure time (if enabled) is activated.
D8 - Selection of the device connected to terminals 1-8
• NO - None
• PH - 4-wire photocells K140186
• SP41 - Photocells with safety test
• SE - Safety edge
• S41 - Safety edge with safety test
• P2 –
2-wire photocells with
safety test S-PC
• PE – Safety edge + 2-wire photocells with safety test S-PC
• PS – Safety edge with safety test + 2-wire photocells with safety test S-PC
WF -
Setting of WiFi functionality (YALE home ready SPARK versions)
It is used to enable or disable the WiFi functionality .
• ON - WiFi is enabled
• OF - WiFi is disabled
WARNING: enabling WiFi will increase the standby power con-
sumption of the product
