Internal
control

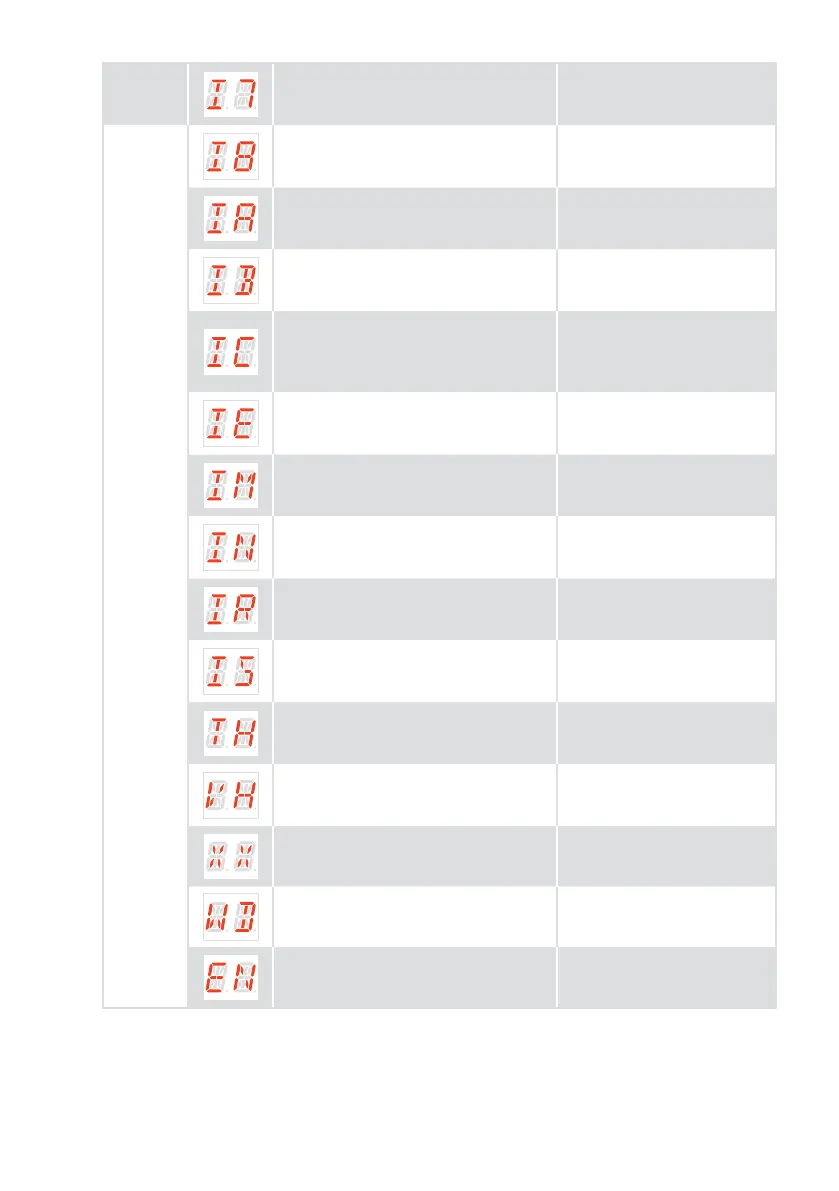

I7 - Internal parameter error - value
outside limits
Reset.
If the problem persists, replace
the control panel
Panel alarm
I8 - Program sequence error
Reset.
If the problem persists, replace
the control panel
IA - Internal parameter error (EEPROM/
FLASH)
Reset.
If the problem persists, replace
the control panel
IB - Internal parameter error (RAM)
Reset.
If the problem persists, replace
the control panel
IC Operation time-out error
(>5 min or >7 min in learning mode)
Manually check that the gate
moves freely.
If the problem persists, replace
the control panel.
IE - Power supply circuit fault
Reset.
If the problem persists, replace
the control panel
IM - MOSFET alarm
Motor in short circuit or always ON
Reset.
If the problem persists, replace
the control panel
IN - Interrupted motor power circuit
(motor MOSFET open or always OFF)
Reset.
If the problem persists, replace
the control panel
IR - Motor relay error
Reset.
If the problem persists, replace
the control panel
IS - Error on motor current read circuit
test
Reset.
If the problem persists, replace
the control panel
TH - Intervention of high temperature
safety device
Do not carry out any opera-
tions. If the problem persists,
contact Technical Service
VH - Automation blocked due to high
temperature
Do not carry out any opera-
tions. If the problem persists,
contact Technical Service
XX - Firmware reset
WD - Firmware reset not commanded
EN - Error on the encoder during a
manoeuvre
Check connection of motor
