Normstahl SPARK - Page 9

9
IP2449EN
Example 1: sectional door 3.5 m wide and 2.3 m high, weight 12 kg/m
2
It is possible to use SPARK 600 with TS150X2 rail because it is within the area formed by
the 12 kg/m
2
curve
Example 2: sectional door 3.5 m wide and 2.7 m high, weight 12 kg/m
2
It is possible to use SPARK 600 with TS200X2 rail because it falls within the area formed
by the 12 kg
2
/m curve
Example 3: sectional door 4 m wide and 2.6 m high, weight 14 kg/m
2
It is NOT possible to use SPARK 600 with TS200X2 rail because it is NOT within the area
formed by the 14 kg/m
2
curve.
It is recommended to use SPARK 1000.
10
11
12
14
1800 2000 2200 2400 2600 2800 3000 4600 4400 4200 4000 3800 3600 3400 3200 4800 5000 5200 5400 5600 5800 6000
2000
2500
3000
3500
1500

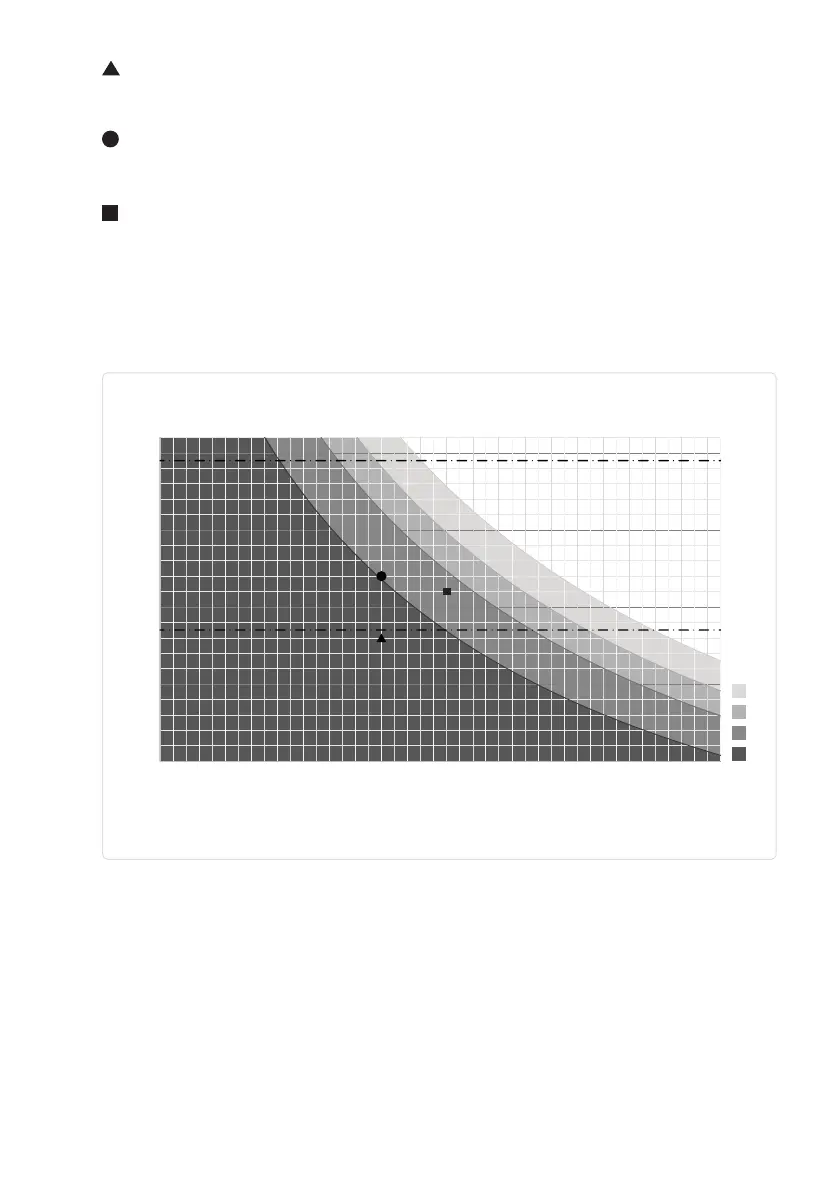

Maximum door dimensions - SPARK 600 (max door weight = 130 kg)
Door
weight
per m
2
(kg/m
2
)
