Nortel DMS-10 - BMC II BISYNC Figures; BMC II BISYNC Front View

1
BMC II BISYNC Quick Reference Guide
BMC II BISYNC Figures

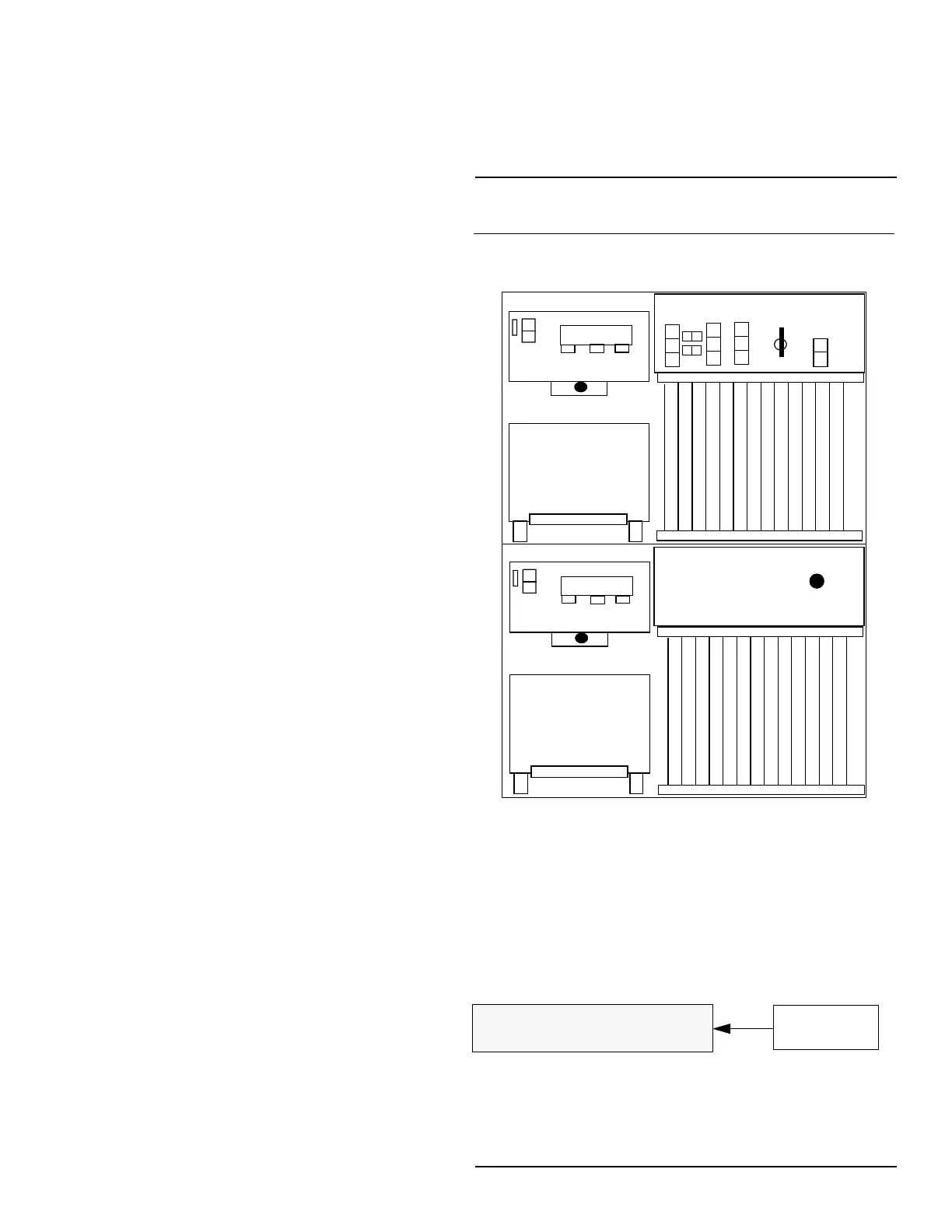

Figure 1
BMC II BISYNC Front View
NT6M62xx Central Processor Unit (CPU) with DMAPCA
NT6M63xx EPROM PCA
NT6M64xx DRAM with Extended Memory PCA
NT6M65xx Error Control II PCA
NTM609xx Error Control Jumper PCA
NT6M60xx Quad Serial Input/Output (SIO) PCA
NT6M66xx Disk Interface PCA
NT6M70xx Data Stream Interface (DSI) PCA (DMS-100 systems only)
NT6M89xx Tape Emulation Card (TEC) PCA (DMS-10 systems only)
NT6M90xx TEC PCA (DCO* systems only)
NT6M68xx Bus Terminator PCA
NT6M71xx Power Supply
NT6M72xx Disk Drive: AA - 72MB; BA - 140MB; CA - 30MB;
NT6M72xx Disk Crossover PCA These packs are
NT6M84xx Power/Alarm Communication PCA located in the
NT6M56xx Fan Filter PCA back of the BMC
* DCO is a registered trademark of Siemens Stromberg-Carlson.
LT
A Processor
J8
J10J9
J8
J10J9
Chassis
GRD
NT6M62xx
NT6M63xx
NT6M64xx
NT6M66xx
NT6M70/89/90xx
NT6M68xx
NT6M60xx NT6M65xx
NT6M70/89/90xx
NT6M62xx
NT6M63xx
NT6M64xx
NT6M66xx
NT6M70/89/90xx
NT6M68xx
NT6M60xx
NTM609xx
NT6M70/89/90xx
A Disk Drive
NT6M72xx
B Disk Drive
NT6M72xx
Power Supply
NT6M71xx
NT6M71xx
Power Supply
B Processor
AB
OP
