Page 6 — Front Panel 1200 Series Display, Rev. A2

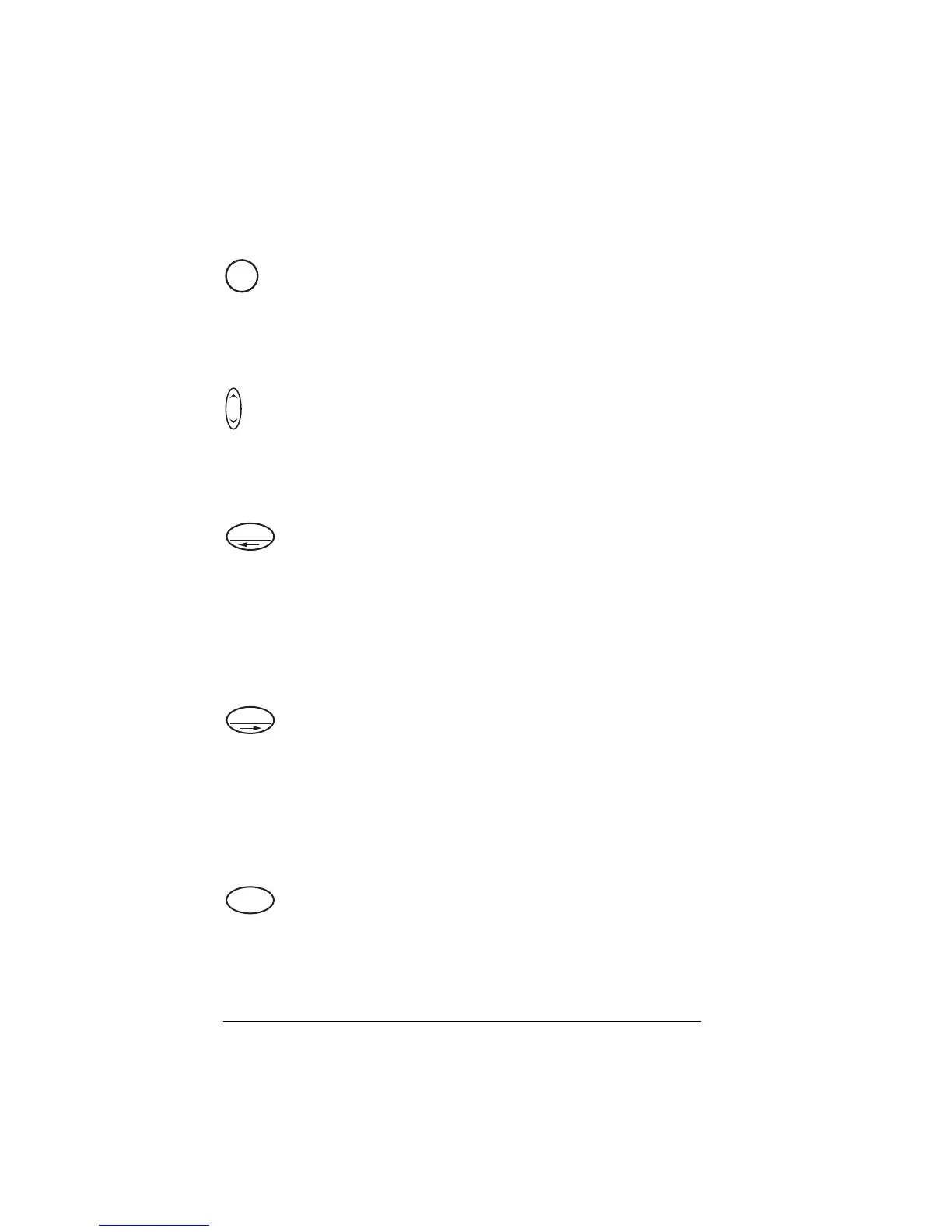

The POWER Button
This key turns the display (and vBox, if connected) on and
off. You must hold it for a few seconds to turn the display
off. This delay prevents accidental shutoffs.
The Brightness Control
Press the up arrow to make the screen brighter. Press the
down arrow to make the screen dimmer.
The DATA Button
Displays the VGA data source connected to the DATA
input. This key is also used in the Setup Menu to make
choices and adjust various values lower.
If the optional vBox is installed, repeated presses of this key will
alternate between the primary and auxiliary data input.
The VIDEO Button
Displays the NTSC/PAL video source connected to the
VIDEO input. This key is also used in the Setup Menu to
make choices and adjust various values higher.
If the optional vBox is installed, repeated presses of this key will
alternate between the primary and auxiliary video input.
The RED Button
The Red Mode feature is available only when the
optional vBox is connected and affects only Data. This
mode does not alter Video.
PWR
DATA
VIDEO
RED
