Page 18 — Connections 1200 Series Display, Rev. A2
Connections
Rear Panel

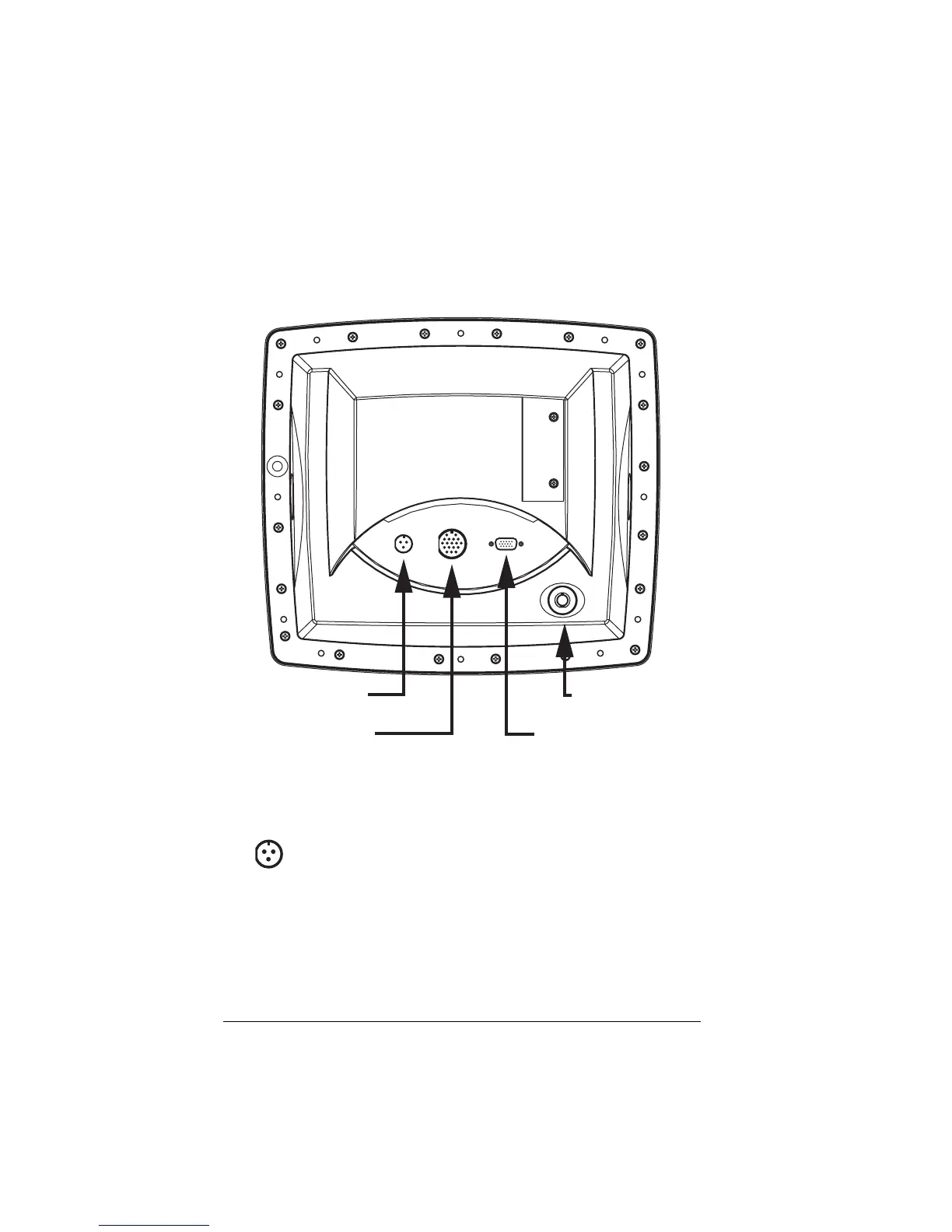

The figure above shows the rear panel of the display.
The Power Connector
The power connector is a 3-pin circular connector
located on the left side of the center panel. It provides
power to the display.
Be sure that the power source you are using is between 10
and 36 VDC and is capable of supplying at least 6 Amperes
(60 Watts) of current. For vessels that are equipped with both
Video Input
(BNC)
DATA Input
(15-Pin D Sub Male)
vBox Connector
(18-Pin Circular)
Power Input
(3-Pin Circular)
