NorthStar 1201 - Configurations Continued; Advanced Configuration: With Optional vBox

1200 Series Display, Rev. A2 Configurations — Page 21
With Optional vBox

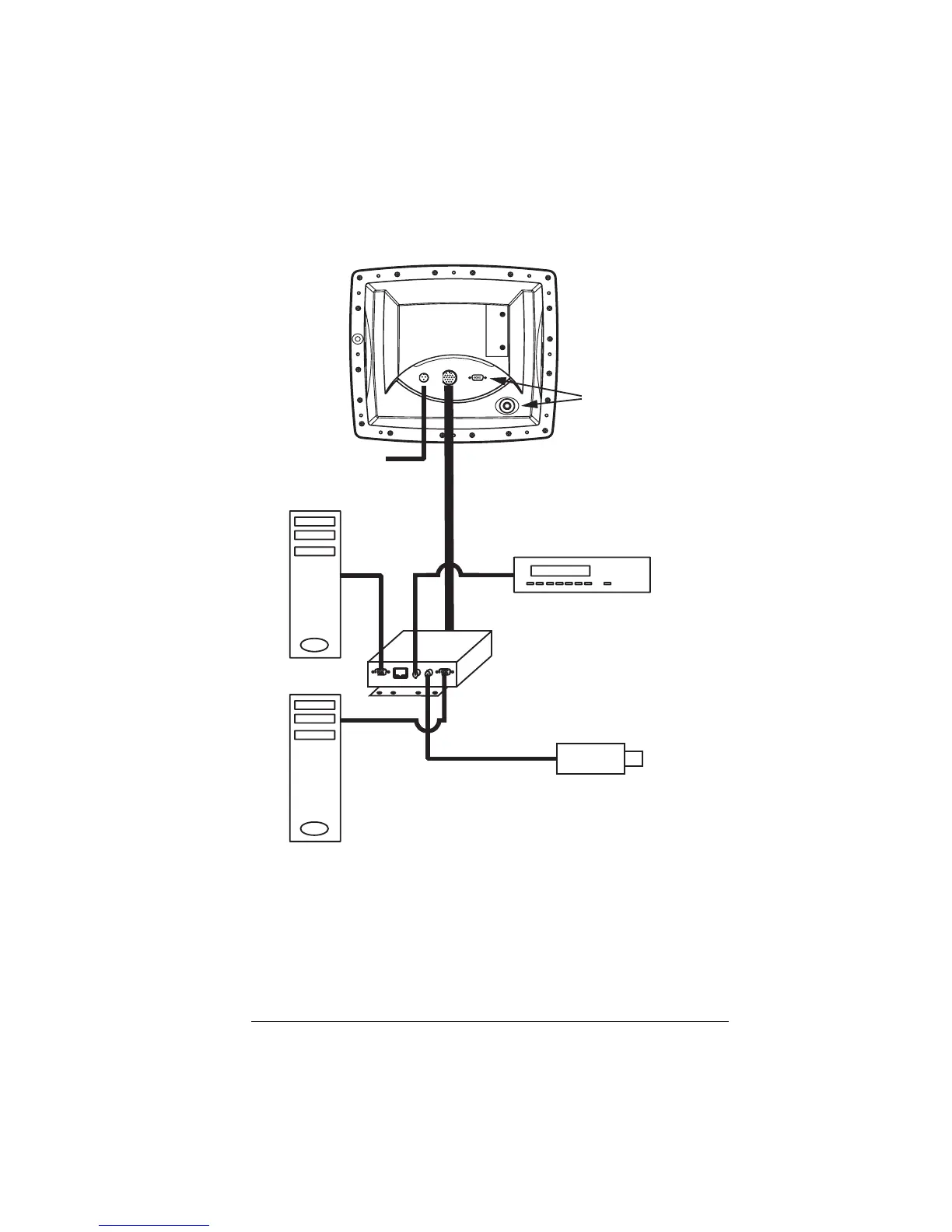

The illustration above is an example of an installation with
multiple video and data sources using a vBox to switch between
them.
Be sure to cap unused connectors during installation.
Data Source
Computer, Black
Box Marine
Electronics, etc.
Aux Data Source
Computer, Black
Box Marine
Electronics, etc.
Video Source
VCR, DVD, Video
Camera, etc.
Aux Video Source
VCR, DVD, Video
Camera, etc.
vB
ox
NOTE:
Do not use
these two
connectors
when vBox is
connected.
Ship's Power
10 - 36 VDC
50 - 60 Watts
