Configurations
Without Optional vBox

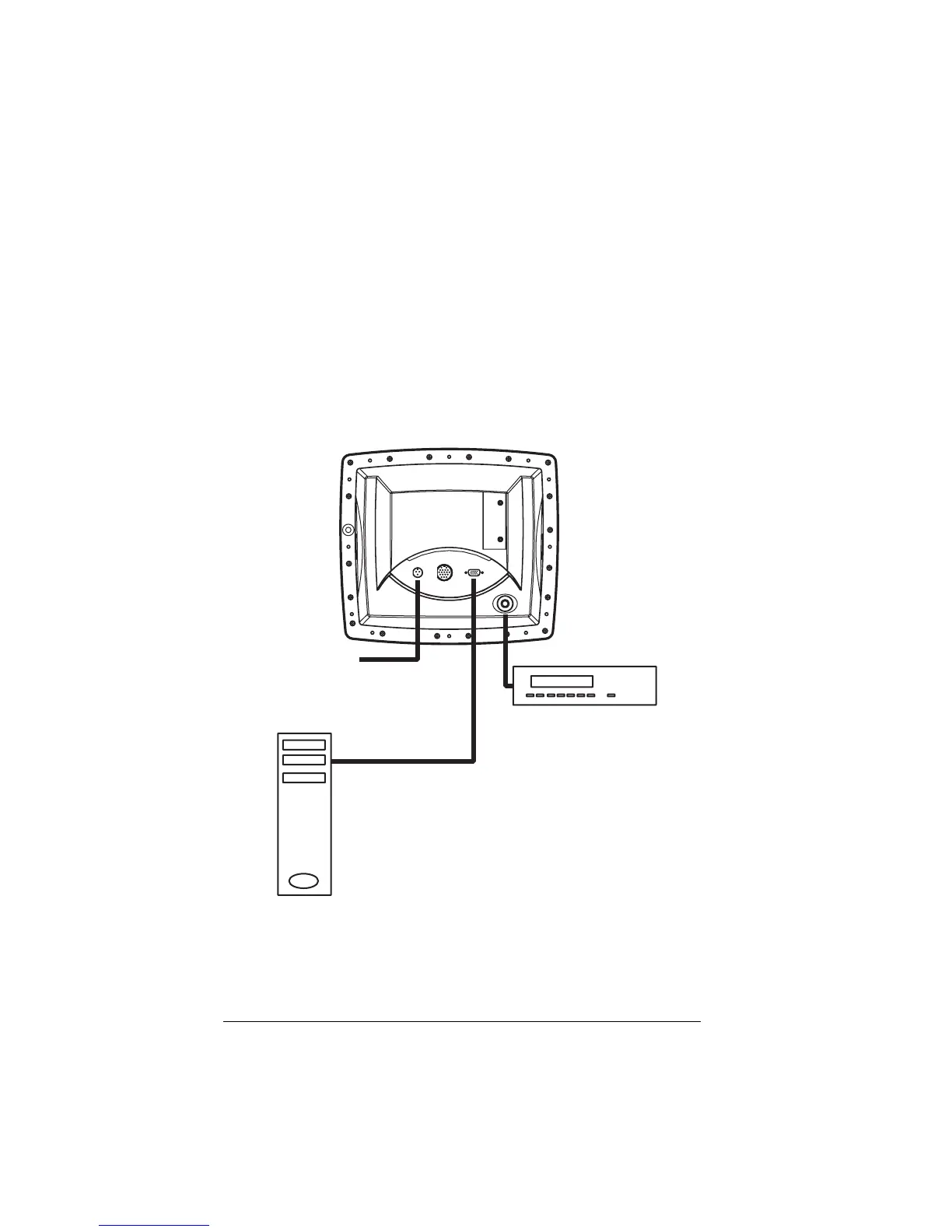

The simplest configuration involves a display connected to a
VGA data source such as a computer or black box marine elec-
tronics device, and a video source such as a VCR, DVD, video
camera, etc.
Be sure to cap unused connectors during installation.
Data Source
Computer, Black
Box Marine
Electronics, etc.
Ship's Power
10 - 36 VDC
50 - 60 Watts
Video Source
VCR, DVD, Video
Camera, etc.
