Northstar Explorer 557/567 Installation and Operation Manual
67
For information on installing, setting up and
using SmartCraft™, see the SmartCraft™ Gateways
Installation and Operation Manual.
The 557/567 can be connected to up to two
SmartCraft™ capable Mercury petrol/gasoline
engines. The 557/567 can display engine data and
trim and can control troll speed.
Note:
Connect the 557/567 to the SmartCraft™
engines with a Northstar SmartCraft™
gateway:
i For single engine fit a single gateway
ii For dual engines fit a dual gateway
SmartCraft™ engines have fuel flow sensors,
therefore Northstar fuel sensors are not
required as well.
Wire the unit for auto power (see section
16-4).
During setup
a Enter fuel setup data (see section 15-4)
b Set NavBus and SmartCraft™ to
(see section
15-1)
c Enter SmartCraft™ setup data (see the
SmartCraft™ Gateways Installation and
Operation Manual)

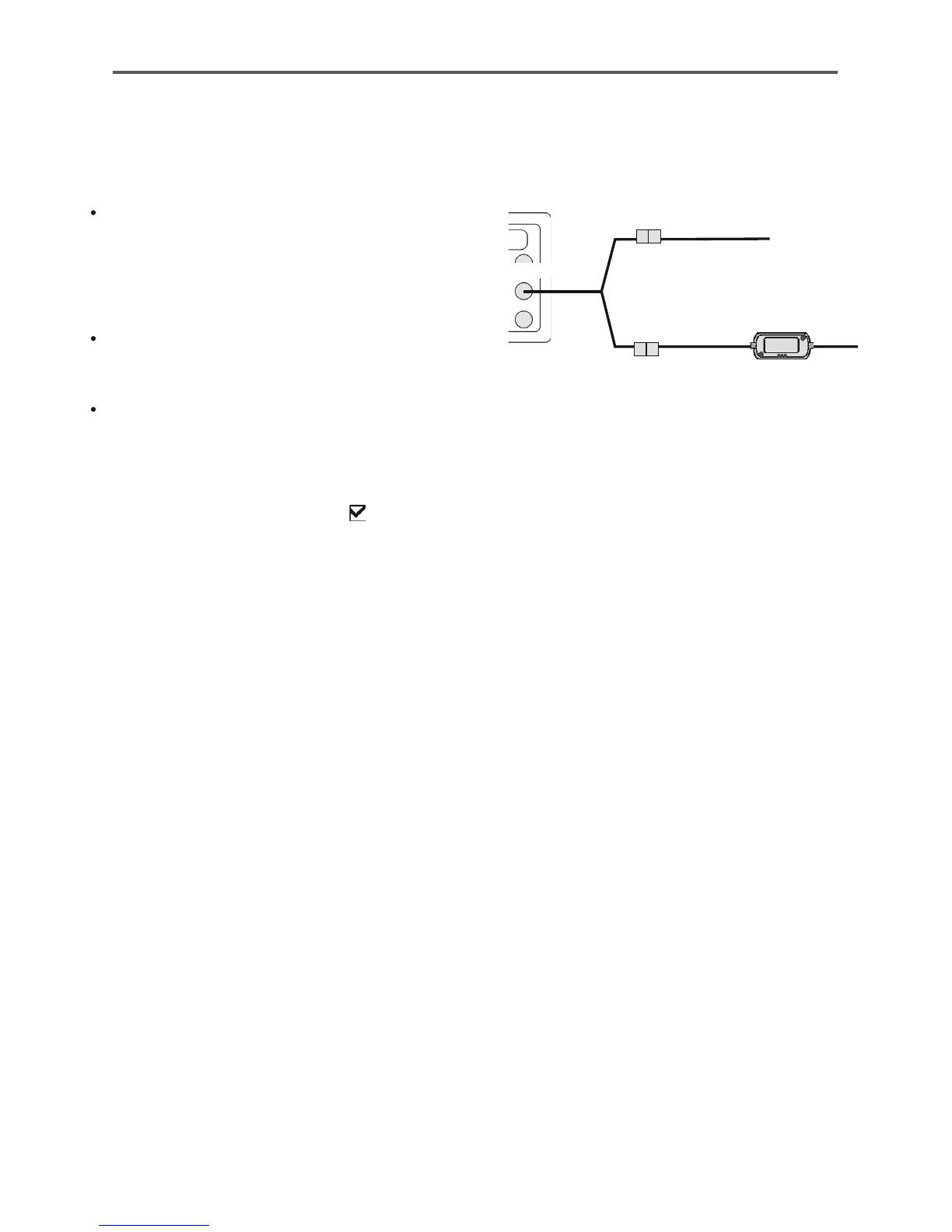

16-7 Installation: SmartCraft™
Yellow
GPS antenna (optional)
SmartCraft™ Gateway
Yellow
GPS/fuel AIS cable
White
