36 AFP-200 Instruction PN 15511:F2 10/11/99
24 V (+) TB1-5
24 V () TB 1-6
Compatible
Two-wire Smoke
Detectors
3.9K UL-listed ELR
24 VDC
filtered,
regulated and
resettable
power
To Next
Device on
Loop
Note: For more information, refer to the MMX-2 Installation Instructions, Document M500-03-00. For a list
of compatible devices, reference the Device Compatibility Document.
SLC (+) TB 6-3
SLC () TB 6-5

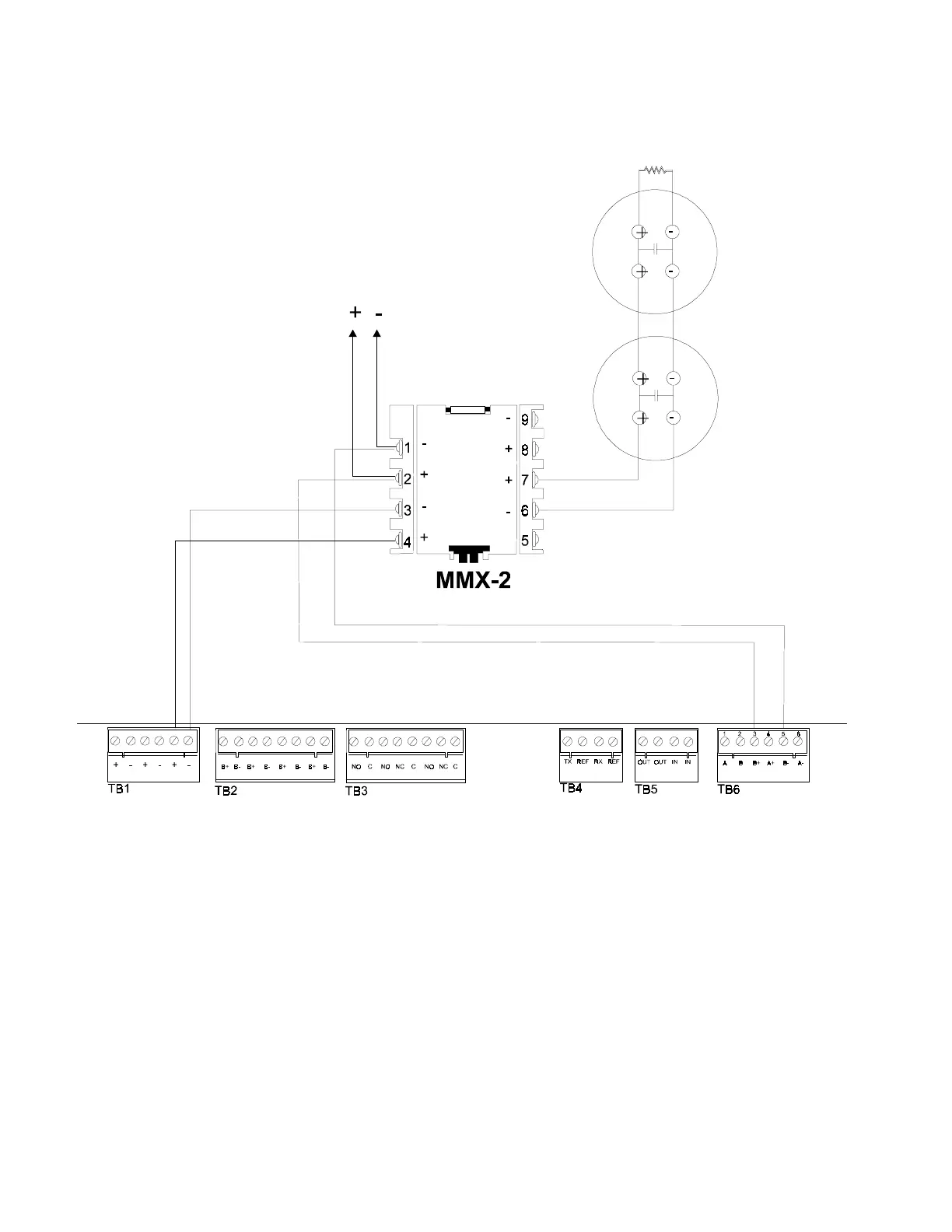

Figure 2-23 NFPA Style B Initiating Device Circuit with an MMX-2 Module
Supervised and Power-limited
Note: Maximum initiating device circuit
resistance is 25 ohms. Maximum alarm current
is 90 mA. Maximum detector standby current is
2.4 mA.
2.7.2 The Monitor Module, continued

Other manuals for Notifier AFP-200

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Notifier AFP-200 and is the answer not in the manual?

Notifier AFP-200 Specifications

General IconGeneral
Control Panel TypeAddressable Fire Alarm Control Panel
Auxiliary Power Output24 VDC, 500 mA
Operating Temperature32°F to 120°F (0°C to 49°C)
Display80-character LCD
Power Supply120 VAC, 60 Hz
Capacity198 addressable devices
Notification Appliance Circuits2
Relay Contacts3 (Form-C)
Relative Humidity93% non-condensing
