Notifier AFP-200 User Manual

AFP-200 Instruction PN 15511:F2 10/11/99 37
SLC (+) TB 6-3
SLC () TB 6-5
24 V (+) TB1-5
24 V () TB 1-6
24 VDC
Four-Wire
Smoke
Detector
Manual
Pull
Station
UL-listed Power Supervision Relay
24 VDC
filtered,
regulated and
resettable
power
Heat
Detector
LOOP
OUT
To next
device on
Loop

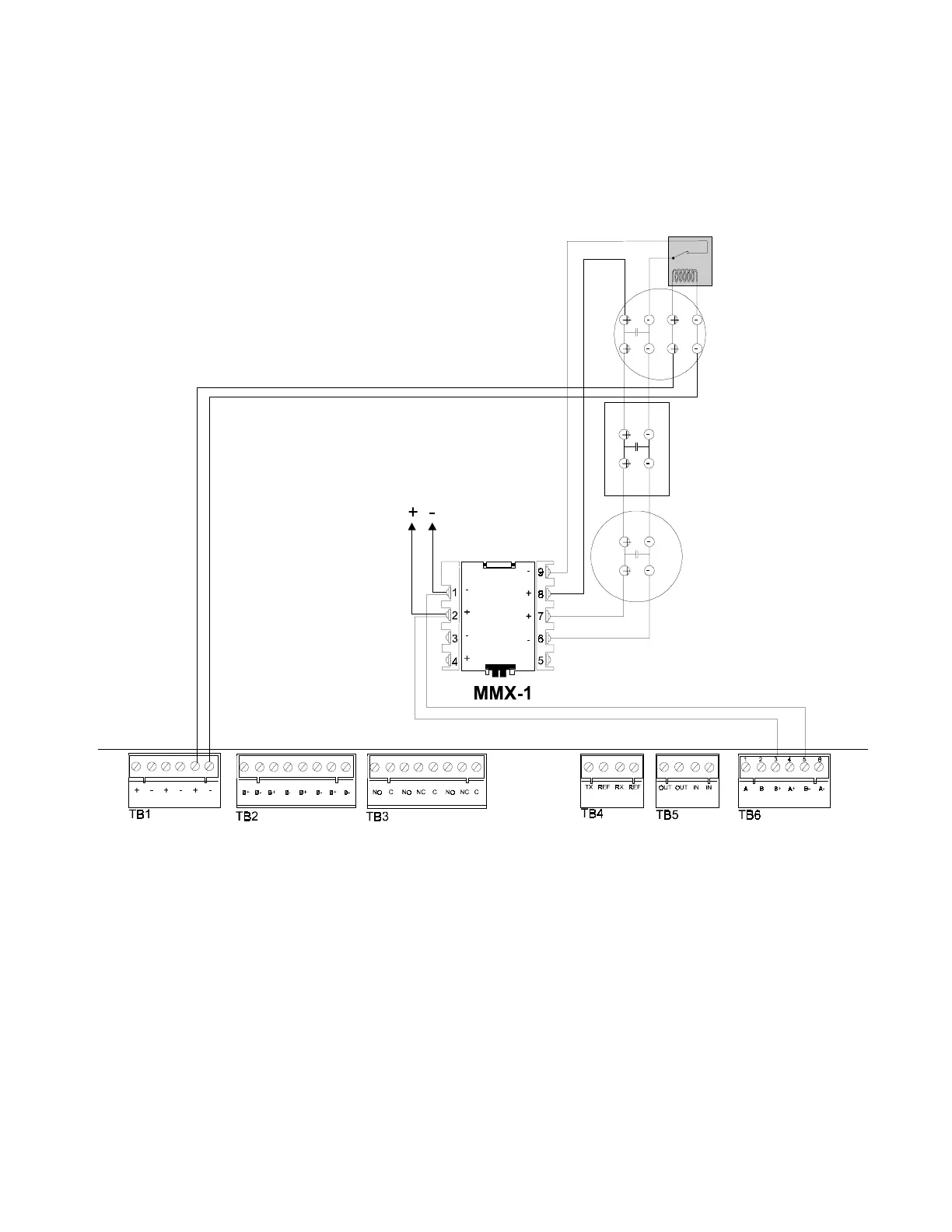

Figure 2-24 NFPA Style D Initiating Device Circuit with an MMX-1 Module
(supervised and power-limited)
Note: Maximum initiating device circuit
resistance is 20 ohms.
Shown
Energized

Notifier AFP-200 Specifications

General

Control Panel Type	Addressable Fire Alarm Control Panel
Auxiliary Power Output	24 VDC, 500 mA
Operating Temperature	32°F to 120°F (0°C to 49°C)
Display	80-character LCD
Power Supply	120 VAC, 60 Hz
Capacity	198 addressable devices
Notification Appliance Circuits	2
Relay Contacts	3 (Form-C)
Relative Humidity	93% non-condensing
