98 AFP-200 Instruction PN 15511:F2 10/11/99
SLC Loop
Channel A or B
(–)
(+)
AFP-200
Protected Premises Unit
MMX-1 modules
programmed with software type
code "BURGLAR ALA."
47K
End-of-Line
Resistor
(A2143-00)*
47K
End-of-Line
Resistor
(A2143-00)*
UL-listed, normally-open
security switch
UL-listed, normally-
open security switch
UL-listed, normally-
closed security switch
UL-listed, normally-closed
security switch
+24 VDC UL-listed
Notification Appliance
47K
End-of-Line
Resistor
(A2143-00)*
CMX
Configured as an Notification Appliance
Circuit (do not break tabs) and programmed
in the Protected Premises Unit. Supplemen-
tary use only in UL-listed Systems.
MMX -1
MMX-1
To next
device
- +
UL-listed 24 VDC
Power Supply.

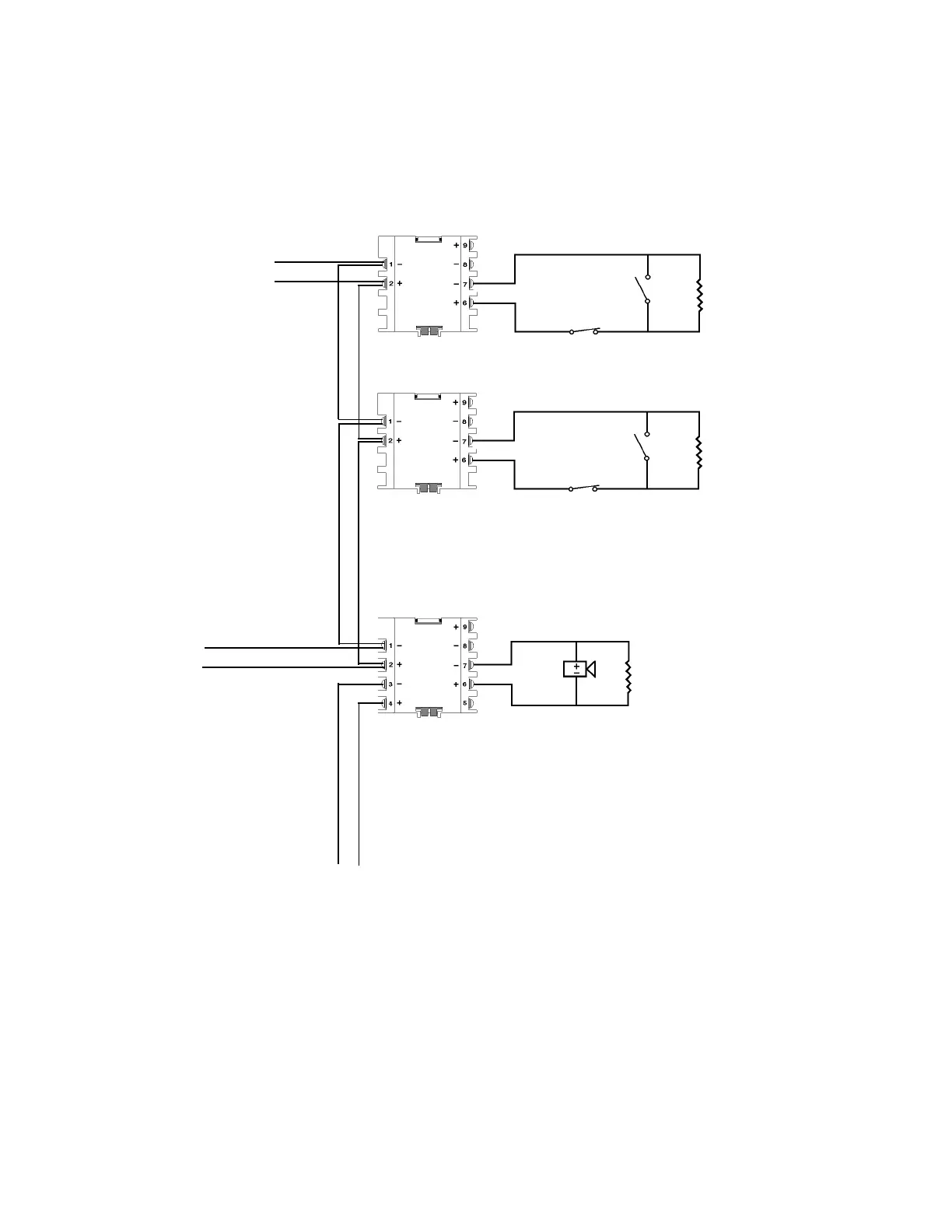

Figure E-2 Typical Protected Premises Wiring for Central Station and Proprietary Burglar Alarm
Applications
Combination Fire/Burglary Applications
