Style 7. (Closed loop with isolation modules providing a redundant path for short circuit conditions)
Total Loop, 3810M maximum, 50 Ohms resistance maximum.
Maximum of 25 devices between isolation modules (Note: contact Notifier Inertia for details)
In style 7, the processor polls the loop from one of the drivers (the B-side). If a failure (short circuit) occurs
between two isolation modules, or the A or B ports of the LCM and an isolation module, the shorted section of loop
will be isolated and the processor will poll through both ends. Note that the A and B ports of the LCM also provide
short circuit isolation.

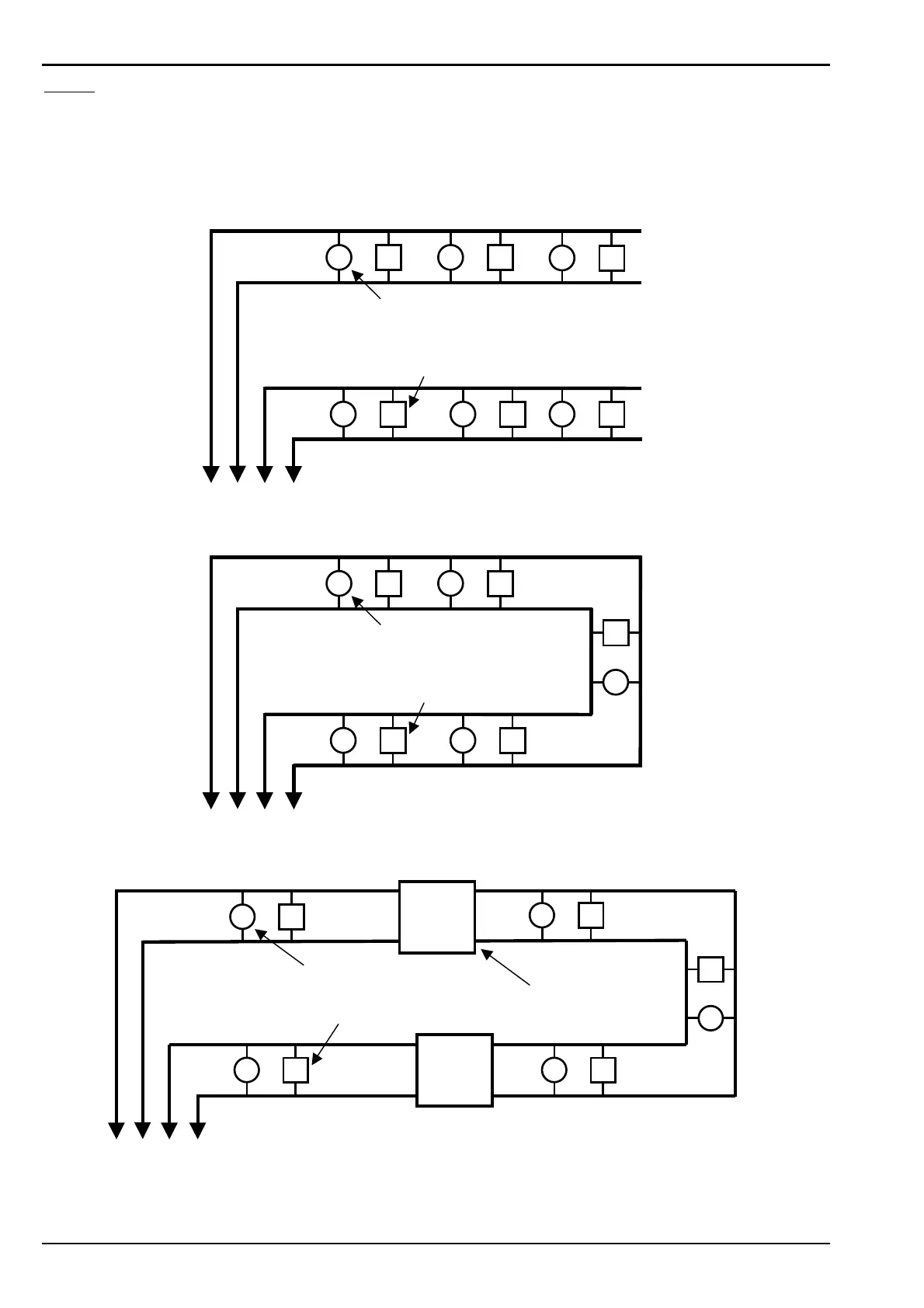

Two wire addressable detector
Addressable moduleBranch A
Branch B
A
+
A-
B
-
B+
To LCM or LEM
STYLE 4
Two wire addressable detector
Addressable module
Loop Out
Loop Return
A
+
A-
B
-
B+
To LCM or LEM
STYLE 6
Two wire addressable detector
Addressable module
Loop Out
Loop Return
A+
A-
B-
B+
To LCM or LEM
ISO-X
ISO-X
Isolation module
STYLE 7
