Appendix
AFP-2800/2802 Manual – P/N 11249 11-Mar-08 109

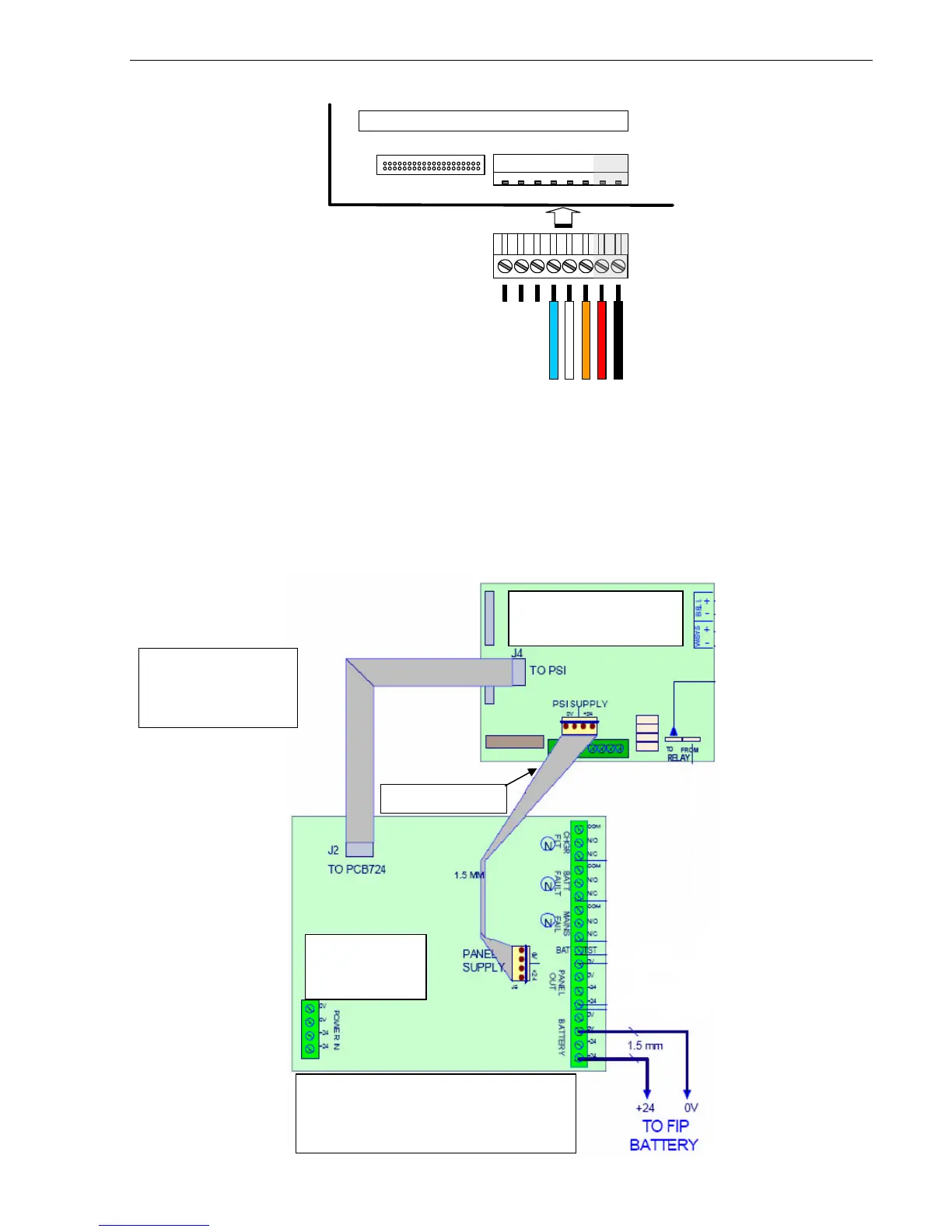

8.7.1.1 POWER SUPPLY CONNECTIONS - PS243 & PS249
IFS-704/714/724 TERMINATION BOARD
TERM 2
8.7.1.2 POWER SUPPLY CONNECTIONS - NPS-2/5/11
The following settings are used when connecting a NPS power supply to an IFS-724 FIM using the ribbon cable:
1. The CPU must have V5.02 or above firmware installed.
2. Set the bottom dipswitch on mode dipswitch U25 (on the back of the CPU) to the on position. Note that the
dipswitch can be marked 1 or 4. Always set the dipswitch closest to the upload/download port.
3. J6 on IFS-724 FIM board must be fitted.
Normal operation: All off
NZ Operation: 1 on, all others off
