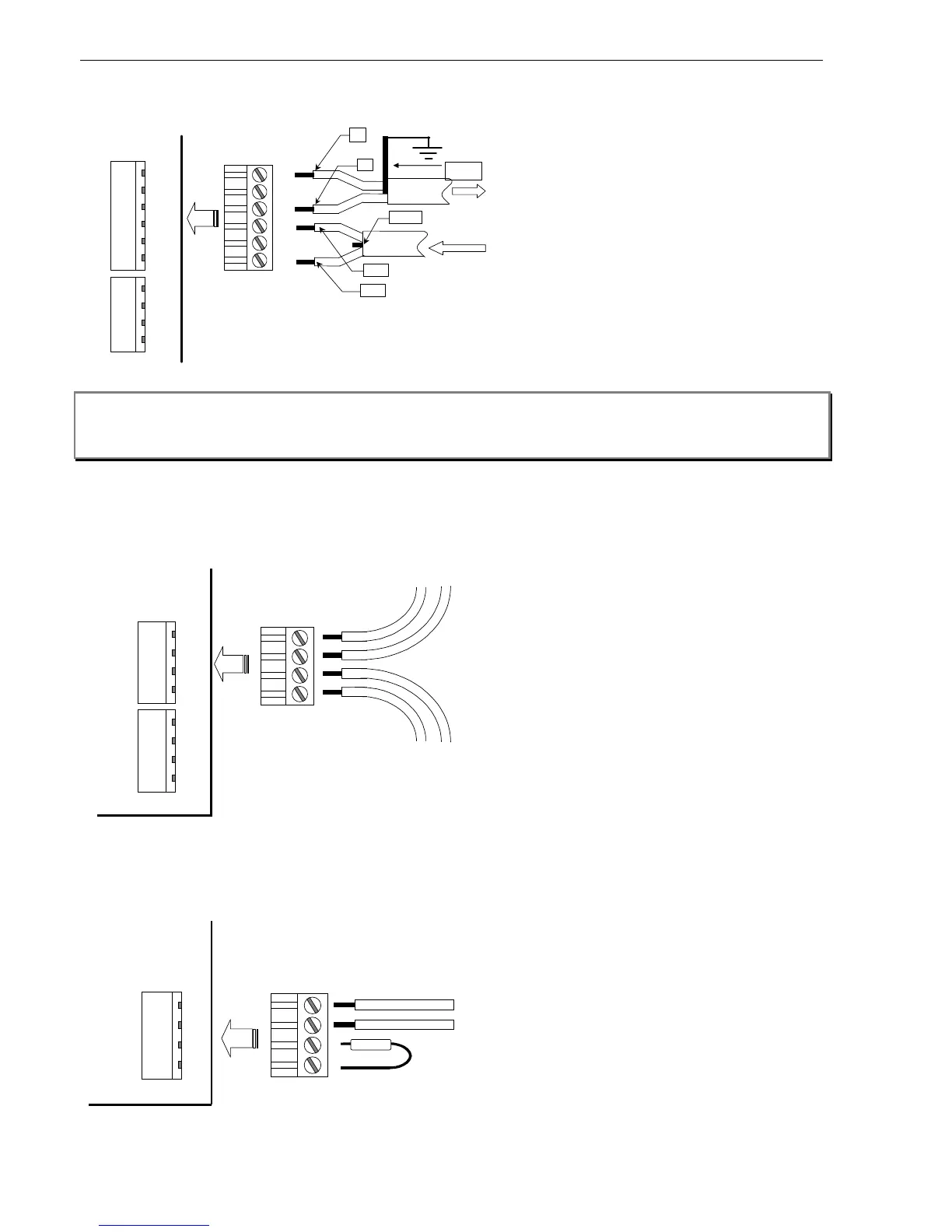

8.7.1.3 MAIN TERMINATION BOARD – CONNECTING RS485
+IN
-IN
SHIELD
+OUT
-OUT
SHIELD
COMMS CABLE TO FIRST MODULE
COMMS CABLE FROM LAST MODULE
-
+
-
+
TERM 4
SOCKET PLUG
TERM 6
Comms AComms B
Note: Terminate the shield at the outside of the FIP cabinet (ground). Where this is not possible, the shield must be
terminated to physical ground immediately adjacent to cable entry. Between Field modules, connect shields
together outside of their respective enclosures. Make sure that the shield is only grounded at the FIP and not
at the modules or annunciators. Do not ground both ends of the shield; one end should be left floating.
8.7.1.4 MAIN TERMINATION BOARD – CONNECTING 24VDC
+AZ1
-AZ1
+AZ2
-AZ2
TERMINATION BOARD
PWR A(+)
PWR A(-)
PWR B(+)
PWR B(-)
TO FIRST
MODULE IN
LOOP
FROM LAST
MODULE IN
LOOP
+ 24V - 24V
+ 24V- 24V
PLUG
SOCKET
8.7.1.5 MAIN TERMINATION BOARD – CONNECTING AZF’S 1 & 2
+AZ1
-AZ1
+AZ2
-AZ2
TERMINATION BOARD
ALARM ZONE INPUT
UNUSED INPUT
4700 Ohms
