Panel Operation
AFP-2800/2802 Manual – P/N 11249 11-Mar-08 27

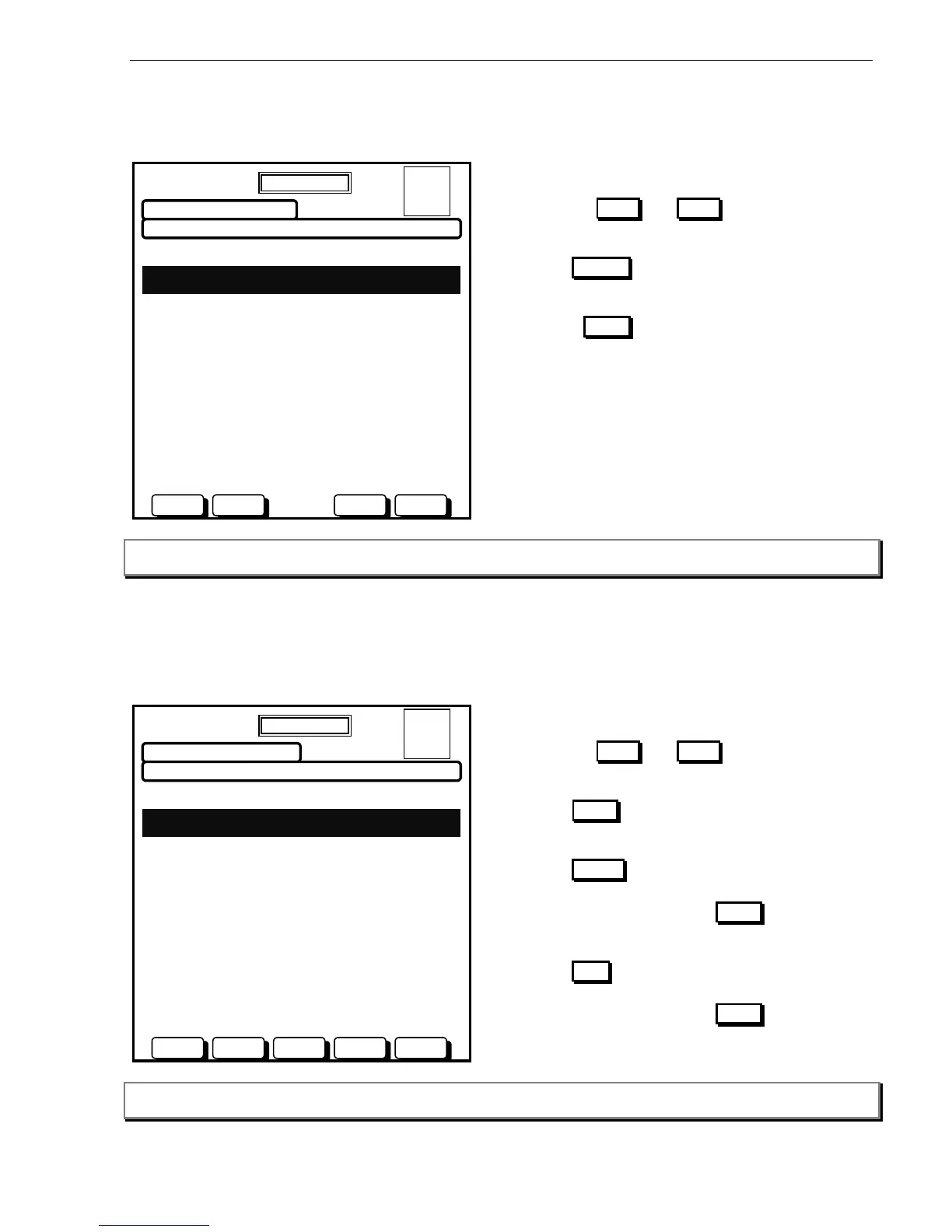

6.3.3.3 SERVICE MENU – LIST – ISOLATED
This will display any isolation conditions active at the time.
ISOLATE LIST
20 JULY 2002 14:44:37
DEISOLNEXTPREV MENU
TIME TYPE STATUS NUMBER
20 JULY 10:00 SMOKE ISOL 1 OF 2
L1D1 PENTHOUSE
20 JULY 12:15 HEAT ISOL FAULT 2 OF 2
1.10.Z1 STAIRWELL
A = 0
F = 0
I = 2
N = 0
DAY MODE
Actions:
Use the PREV and NEXT buttons to scroll
through the isolated points.
Use DEISOL to De-Isolate the currently selected
isolated point.
Press MENU to return to the Service menu
Note: You can also use the arrow keys, the Page Up and Page Dn keys on an external keyboard for scrolling
functions.
6.3.3.4 SERVICE MENU – LIST – ACTIVE
This list will display all non-alarm points that are currently active. If points are set as latching, this is where they
will need to be manually reset. If points are non-latching, they will self-clear.
ACTIVE LIST
20 JULY 2002 14:44:37
RESETACKNNEXTPREV ISOL
TIME TYPE STATUS NUMBER
20 JULY 10:00 SMOKE ACTIVE 1 OF 2
L1D1 PENTHOUSE
20 JULY 12:15 HEAT ISOL ACTIVE 2 OF 2
1.10.Z1 STAIRWELL
A = 0
F = 0
I = 1
N = 2
DAY MODE
Actions:
Use the PREV and NEXT buttons to scroll
through the active Non-Alarm AZF.
Use ACKN to acknowledge currently highlighted
active non-alarm AZF.
Use RESET to reset the currently highlighted
active non-alarm AZF.
You will be asked to press ACKN to confirm, press
any other button to abort.
Use ISOL to isolate the currently highlighted active
Non-Alarm AZF.
You will be asked to press ACKN to confirm, press
any other button to abort.
Note: You can also use the arrow keys, the Page Up and Page Dn keys on an external keyboard for scrolling
functions.
