29
ML0044B December 1, 2017 Copyright 2016 Bitronics, LLC

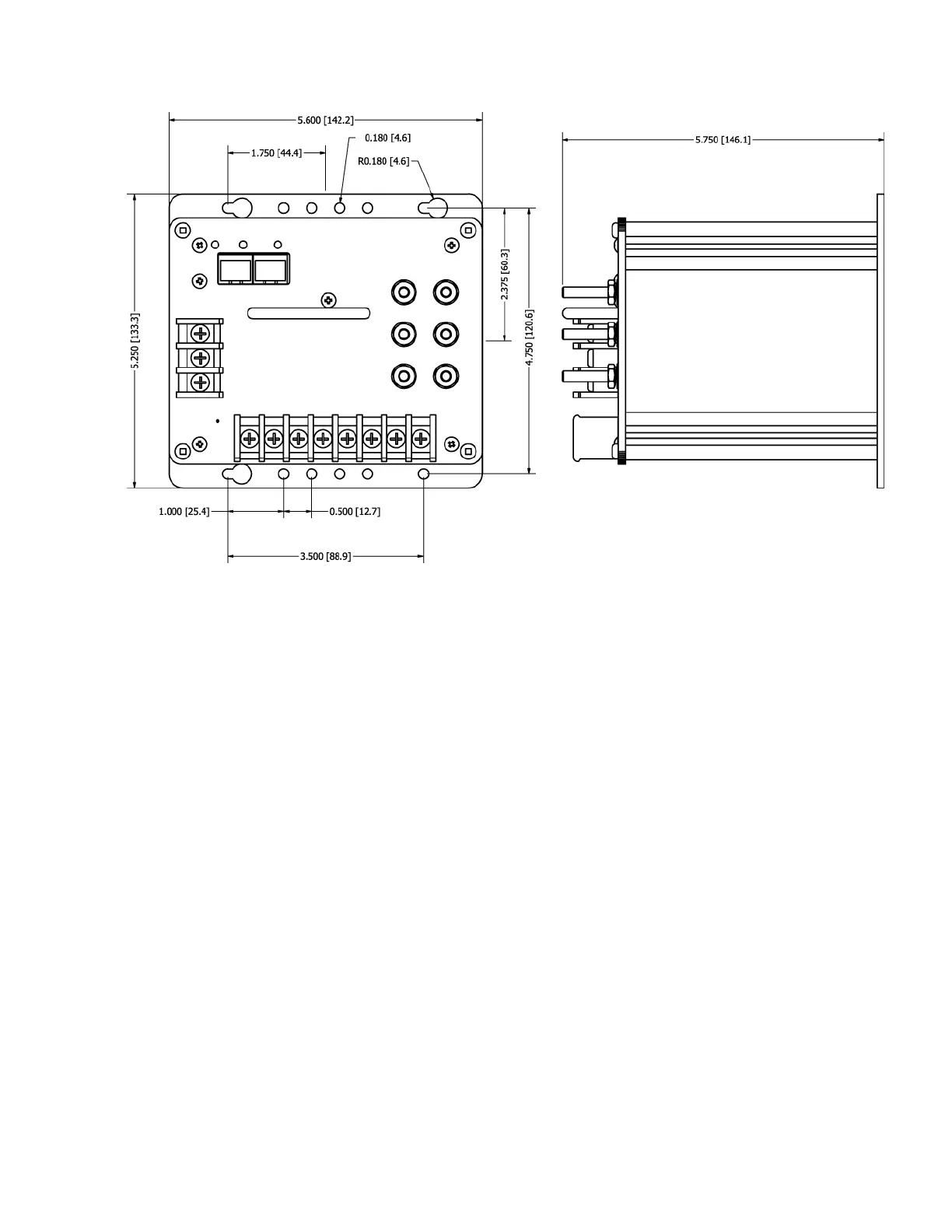

Figure 4A - Mounting and Overall Dimensions PPX II in Standard Chassis
(back panel may vary as a result of options ordered)
