30
ML0044B December 1, 2017 Copyright 2016 Bitronics, LLC

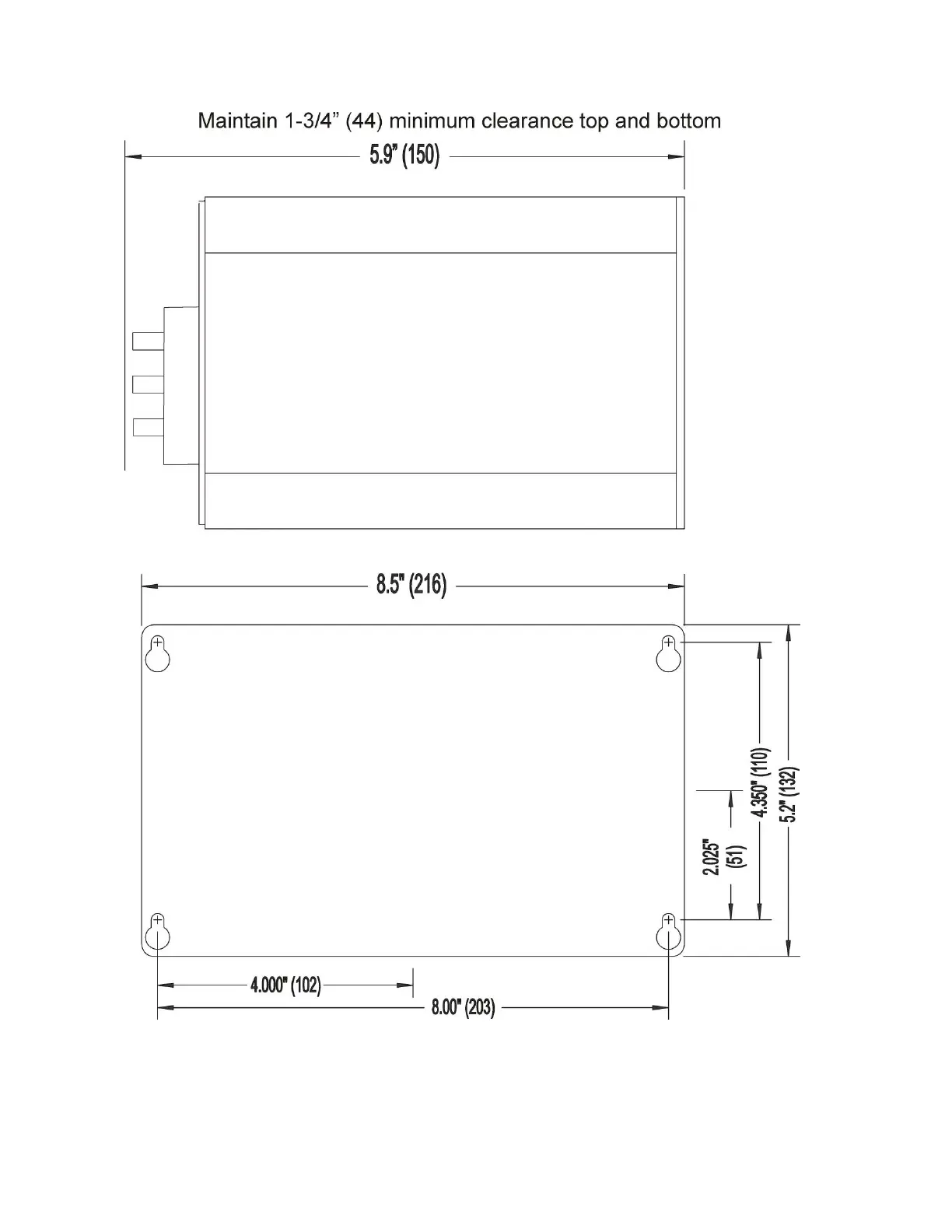

Figure 4B – Mounting and Overall Dimensions PPX II in Extended Chassis (back
panel may vary as a result of options ordered)
