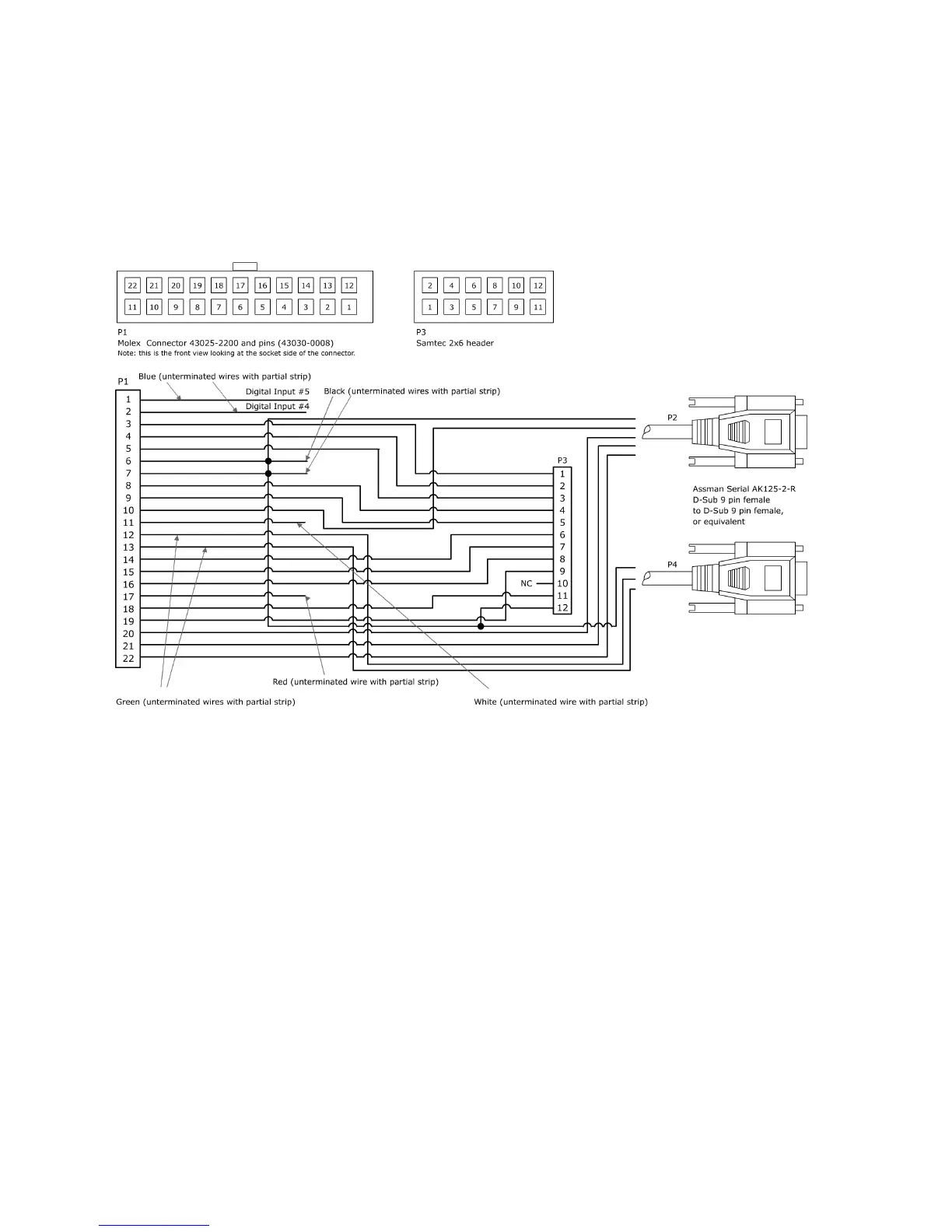

Integration and Development Cable
The MT 4100 uses the Integration and Development Cable (CAB2200-02) to program and test the
device. It contains two RS232 9-pin interfaces (P2 and P4), an I/O connector, two power cables, two
ground cables, and an ignition sense cable.
MT 4100 User Guide 39
